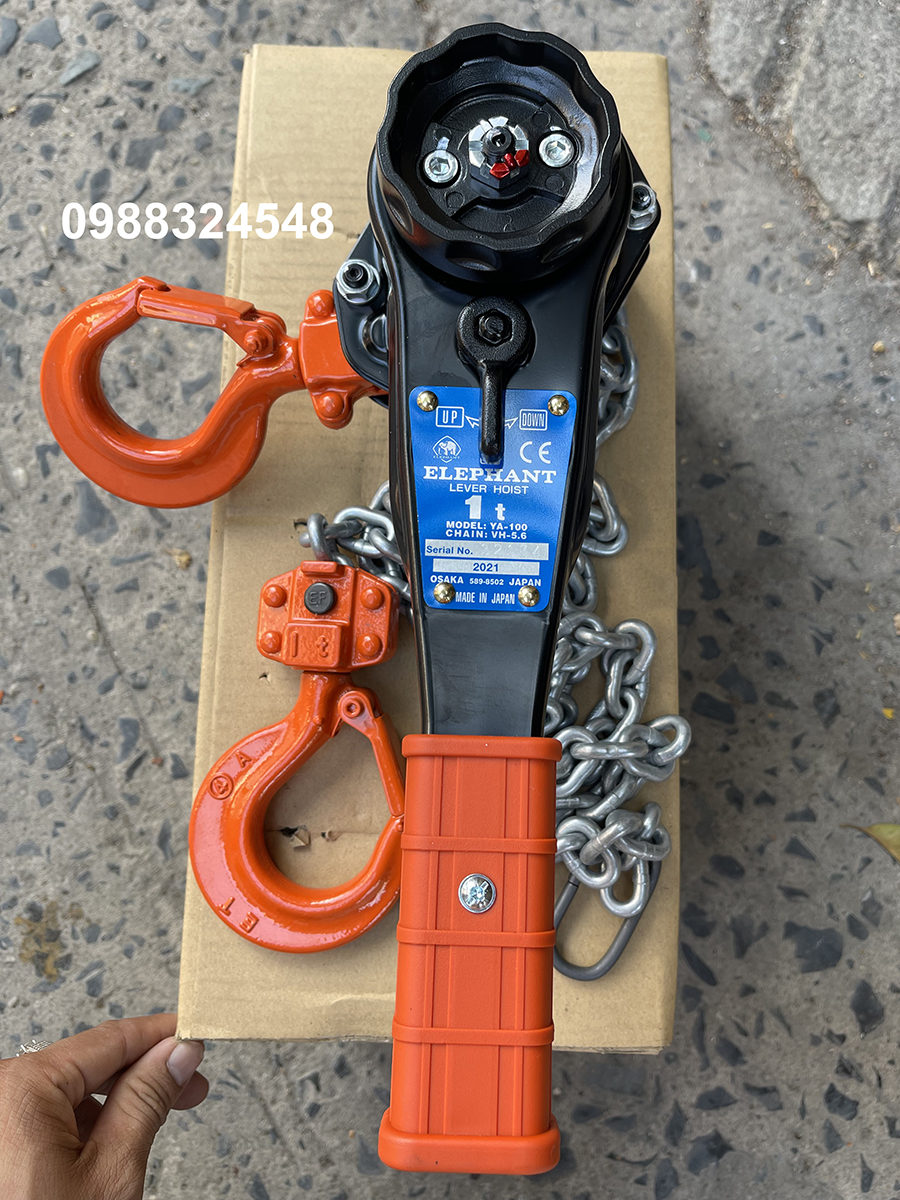

Pa lăng lắc tay Elephant YA-100 / YA-100 Elephant Lever Chain Hoist

Pa lăng lắc tay Elephant YA-100 / YA-100 Elephant Lever Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

YA-100 Elephant Lever Chain Hoist

  • Rounded lever design for smooth operation when placed against flat surfaces
  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
  • True one touch free spooling which automatically brakes when a load is applied
  • Redesigned hooks with tip supporting safety latch
  • Hoist body has an electro-deposited black finish for corrosion resistance
  • Ratchet recovery of 16.5o for 0.8t~1t and 14o for 1.6t~12t
  • Internal side plates have hardened steel bushings for excellent load sheave & pinion support
  • Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
  • Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
  • Suitable for operation within a -20o to +130o C, -4o to +266o F temperature range

    • YA-100 Elephant Lever Chain Hoist

    Model YA-100
    Capacity ( ton )
    1
    Standard lift ( m )
    1.5
    Headroom ( mm )
    312
    Hand effort to lift full working load ( kg )
    37
    Load chain
    5.6mm x 1 fall
    Grade of chain
    V
    Net weight ( kg )
    6.2

    YA Series Elephant Lever Chain Hoist Manual Instruction
