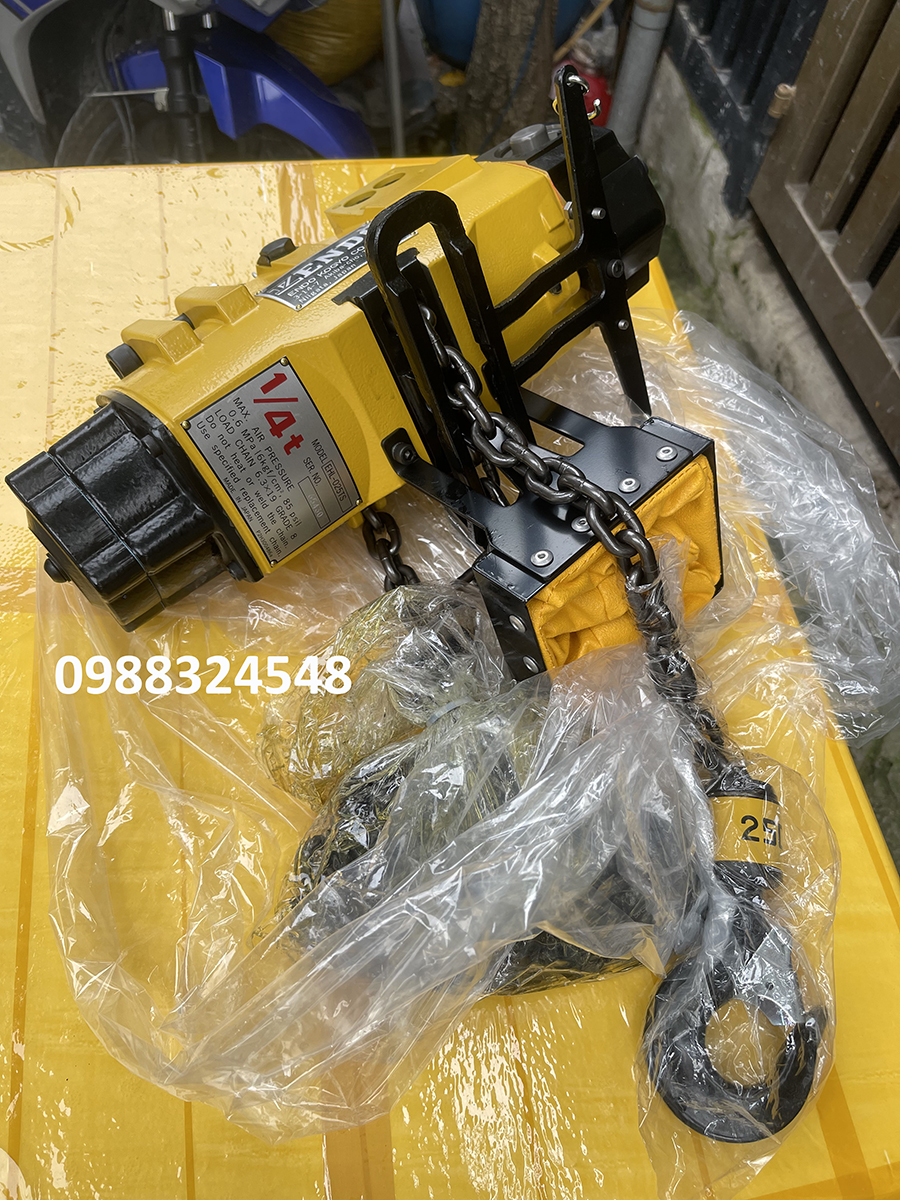

Pa lăng khí nén 250kg Endo EHL-025TS PCS-1 / EHL-025TS PCS-1 Endo Air Chain Hoist

Pa lăng khí nén 250kg Endo EHL-025TS PCS-1 / EHL-025TS PCS-1 Endo Air Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: EHL-025TS PCS-1
  • Tải trọng: 250kg
  • Chiều cao nâng: 3 mét
  • Tốc độ nâng hạ: 12-18 mét/ phút
  • Điều khiển bằng nút bấm
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Endo Kogyo

Tags:

EHL-TS Series Endo Air Chain Hoist

  • Its capacity is 250kg-3000kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance.
  • The load chain is extendable.
  • The pull cord is used for the lift control as standard. For the button-type control, the pendant switch must be purchased.

    • EHL-025TS PCS-1 Endo Air Chain Hoist Drawing


    EHL-TS Series Endo Air Chain Hoist

    Model Rated load
    (kg)    		 Stroke
    (m)    		 Lifting
    speed
    (m/min)    		 Chain
    (size x fall)    		 Air inlet Mass
    (kg)
    EHL-025TS 250 3 12-18 6.3×1 Rp 1/2 20.0
    EHL-05TS 500 3 7.5-10.5 6.3×1 Rp 1/2 20.0
    EHL-1TS 1000 3 4.0-6.0 7.1×1 Rp 1/2 34.0
    EHL-3TS 3000 3 2.0-3.0 12.5×1 Rp 3/4 79.0

    EHL-025TS Endo Air Chain Hoist Instruction Manual

    PCS-1 / PCS-2 Endo Pendant Switch Instruction Manual
