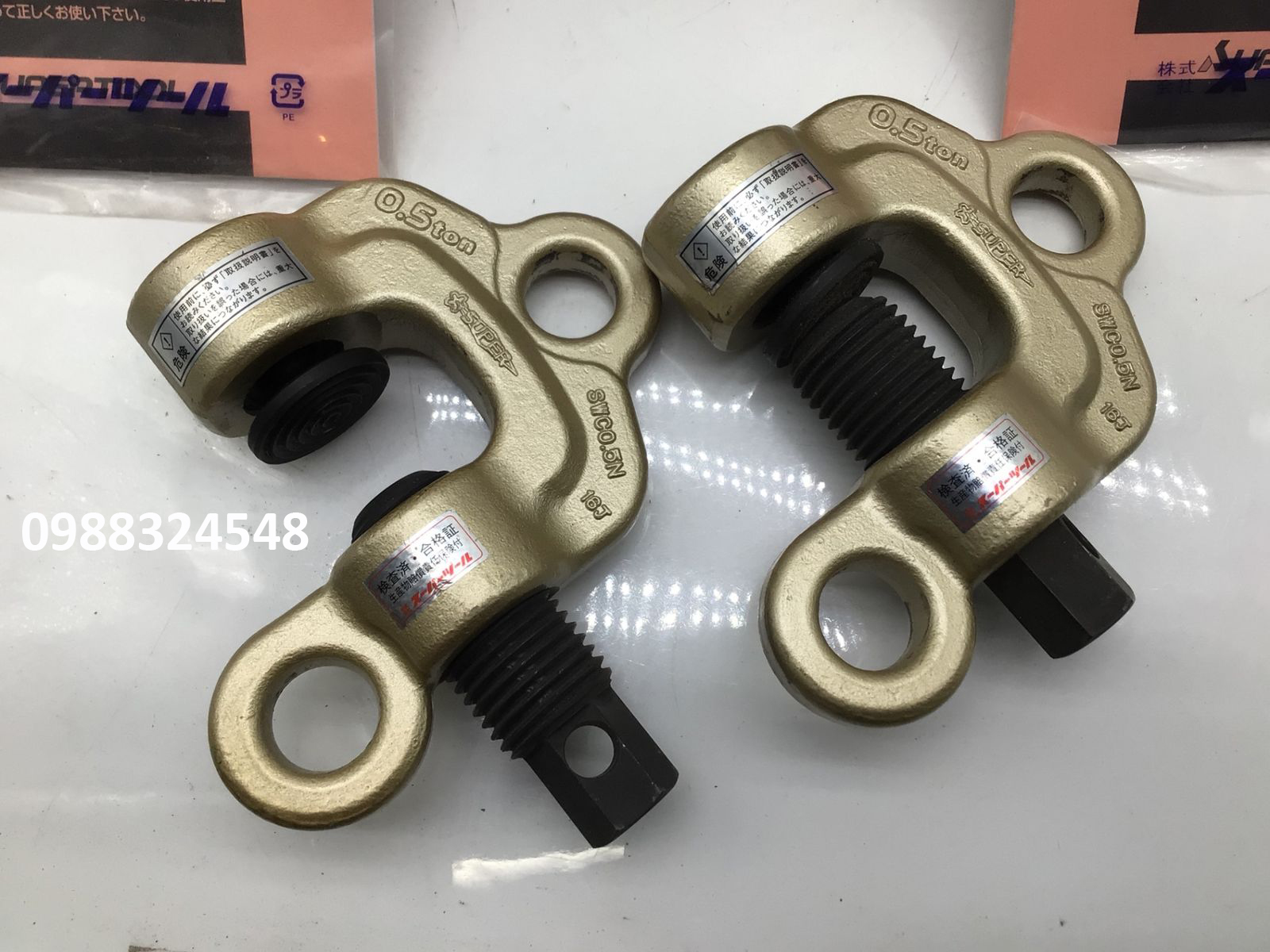

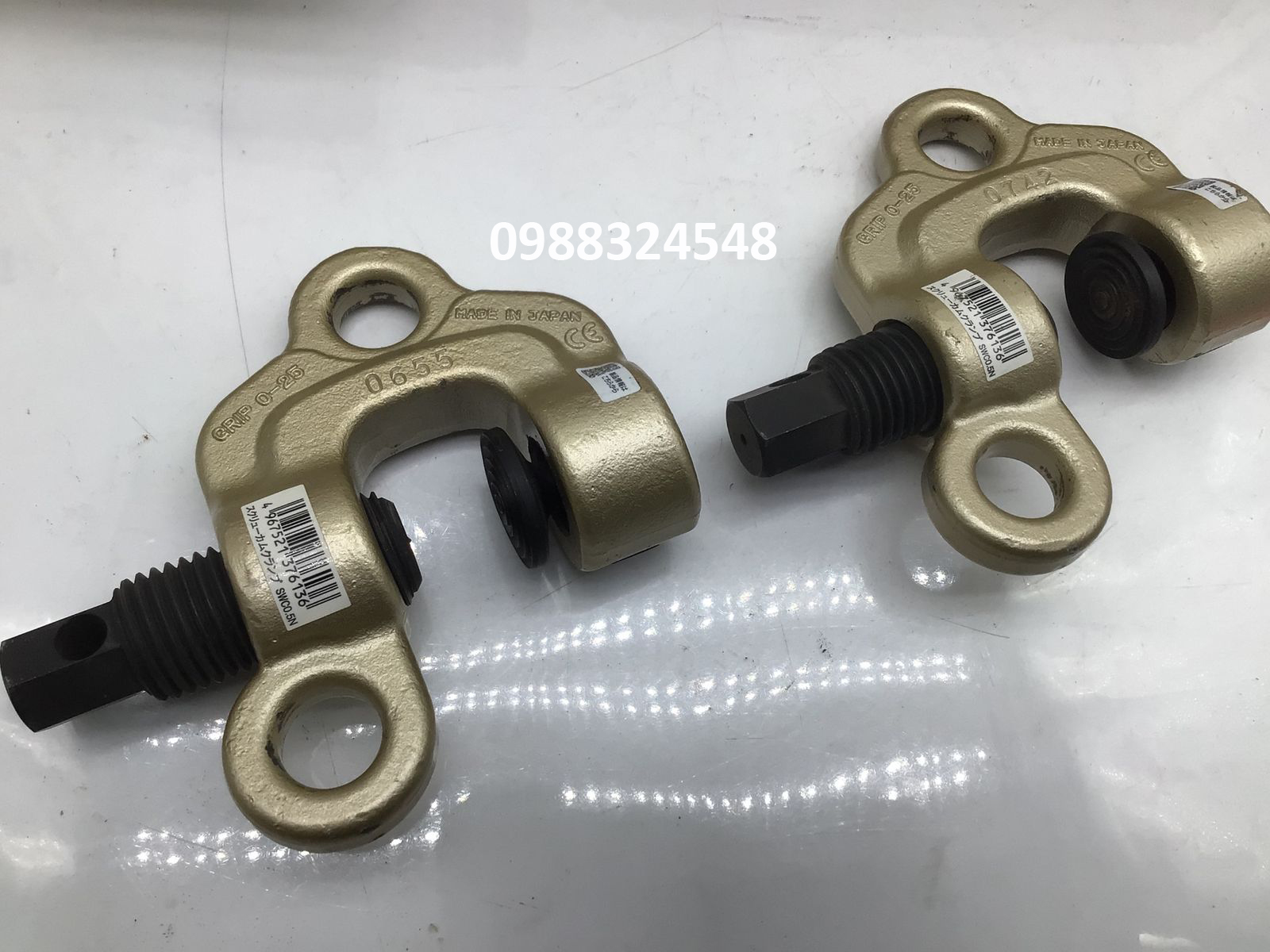

Kẹp vít 500kg Supertool SWC-0.5N / SWC-0.5N Supertool Screw Cam Clamp

Kẹp vít 500kg Supertool SWC-0.5N / SWC-0.5N Supertool Screw Cam Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: SWC-0.5N
  • Tải trọng: 500 Kgs
  • Độ mở miệng: 0-25mm
  • Khối lượng: 1.8 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

SWC-N Series Supertool Screw Cam Clamp

  • This screw clamp is for all-purpose uses such as lifting up and down, lateral (horizontal) pulling and turning over.
  • When used in horizontal pulling, screw can be easily tightened from the top (Operators can tighten the screw when installing on to the beam over the head).
  • The round shape cam has mechanism to return back to original position by spring power.
  • Attention: Tightening torque of the screw should be more than 25N・m (Abt.250kgf・cm).

    • SWC-0.5N Supertool Screw Cam Clamp

    Model SWC-0.5N
    Jaw Opening 0 - 25 mm
    Capacity 500 Kgs
    Net weight 1.8 kg

    SWC-N Series Supertool Screw Cam Clamp Instruction Manual
