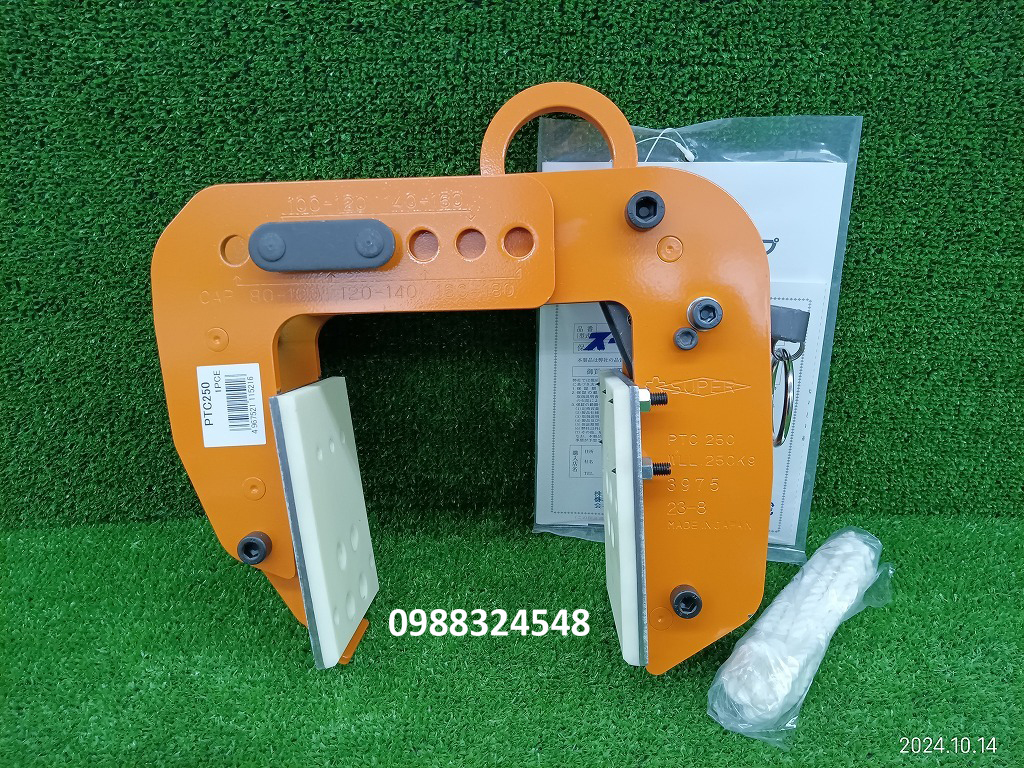

Kẹp tấm gỗ Supertool PTC250 / PTC250 Supertool LIFTING CLAMP for Panel / Beam

Kẹp tấm gỗ Supertool PTC250 / PTC250 Supertool LIFTING CLAMP for Panel / Beam

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: PTC250
  • Tải trọng: 250Kgs
  • Độ mở miệng ( 5 mức độ ):
    Mức 1: 80-100mm
    Mức 2: 100-120mm
    Mức 3: 120-140mm
    Mức 4: 140-160mm
    Mức 5: 160-180mm
  • Khối lượng: 5.8 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

PTC Series Supertool LIFTING CLAMP for Panel / Beam

  • Optimal for lifting and installation of wooden panels and lifting and movement of wooden beams for housing.
  • The spring type tightening lock mechanism assures a positive initial clamping force even under no-load condition.
  • The releasing of tightening lock mechanism with remote control avoids the dangerous operation of removing the clamps from the panel at high places.
  • One side of the urethane pads with spikes ensures a tight and safe clamping. One side with urethane rubber prevents the surface of panels from being damaged.
  • The clamping force increases in ratio with the weight of the load.
  • Attention: Always use this clamp in pair with a balance.

    • PTC250 Supertool LIFTING CLAMP for Panel / Beam

    Model PTC250
    Jaw Opening Step 1: 80 - 100 mm
    Step 2: 100 - 120 mm
    Step 3: 120 - 140 mm
    Step 4: 140 - 160 mm
    Step 5: 160 - 180 mm
    Capacity 250Kgs
    Net weight 5.8 kg

    PTC Series Supertool LIFTING CLAMP for Panel / Beam Instruction Manual
