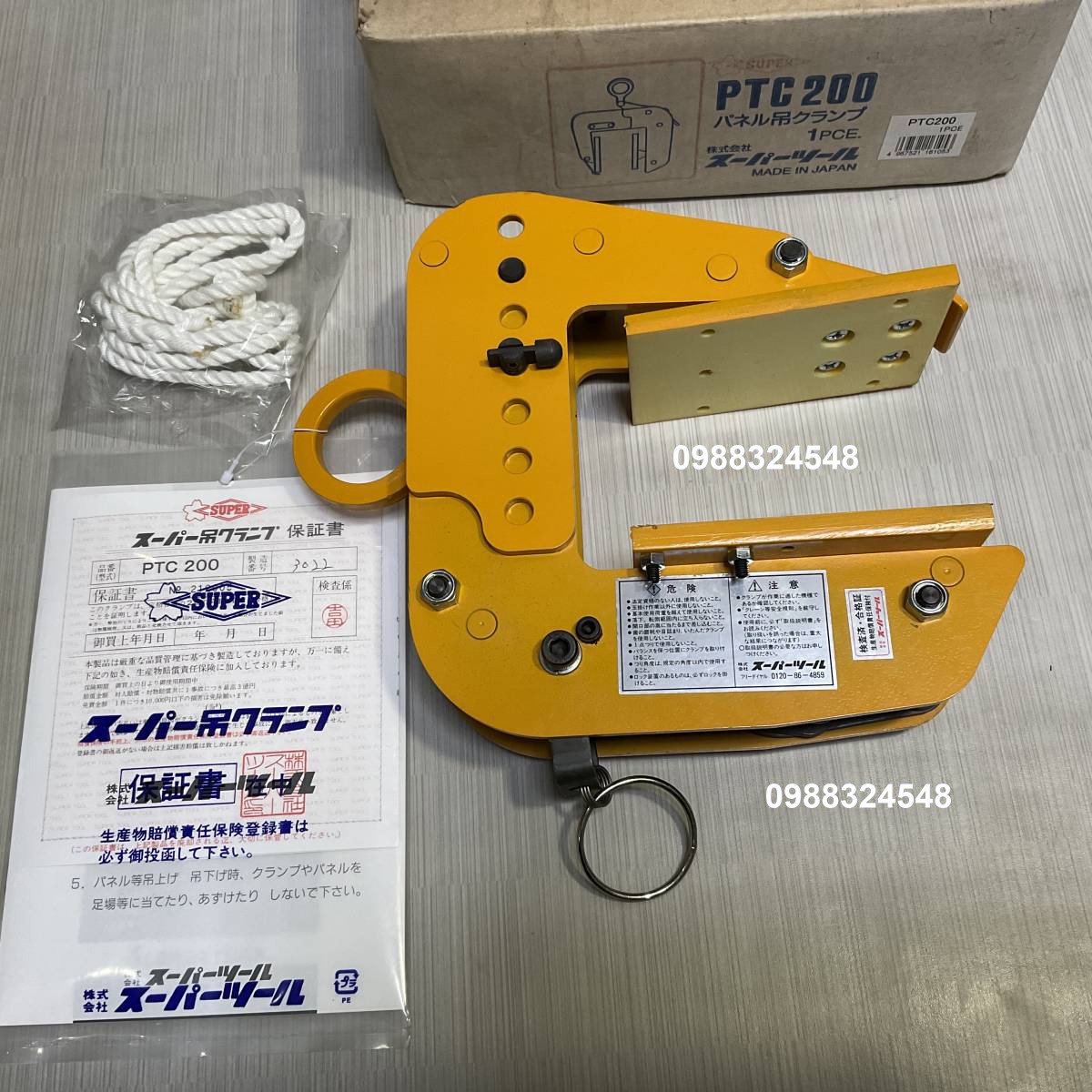

Kẹp tấm gỗ Supertool PTC200 / PTC200 Supertool LIFTING CLAMP for Panel / Beam

Kẹp tấm gỗ Supertool PTC200 / PTC200 Supertool LIFTING CLAMP for Panel / Beam

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: PTC200
  • Tải trọng: 200Kgs
  • Độ mở miệng ( 5 mức độ ):
    Mức 1: 35-55mm
    Mức 2: 55-75mm
    Mức 3: 75-95mm
    Mức 4: 95-115mm
    Mức 5: 115-135mm
  • Khối lượng: 4 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

Kẹp tấm gỗ Supertool PTC200 / PTC200 Supertool LIFTING CLAMP for Panel / Beam

  • Optimal for lifting and installation of wooden panels and lifting and movement of wooden beams for housing.
  • The spring type tightening lock mechanism assures a positive initial clamping force even under no-load condition.
  • The releasing of tightening lock mechanism with remote control avoids the dangerous operation of removing the clamps from the panel at high places.
  • One side of the urethane pads with spikes ensures a tight and safe clamping. One side with urethane rubber prevents the surface of panels from being damaged.
  • The clamping force increases in ratio with the weight of the load.
  • Attention: Always use this clamp in pair with a balance.

    • Kẹp tấm gỗ Supertool PTC200 / PTC200 Supertool LIFTING CLAMP for Panel / Beam

    Model PTC200
    Jaw Opening Step 1: 35-55 mm
    Step 2: 55-75 mm
    Step 3: 75-95 mm
    Step 4: 95-115 mm
    Step 5: 115-135 mm
    Capacity 200Kgs
    Net weight 4 kg

    Kẹp tấm gỗ Supertool PTC200 / PTC200 Supertool LIFTING CLAMP for Panel / Beam Instruction Manual
