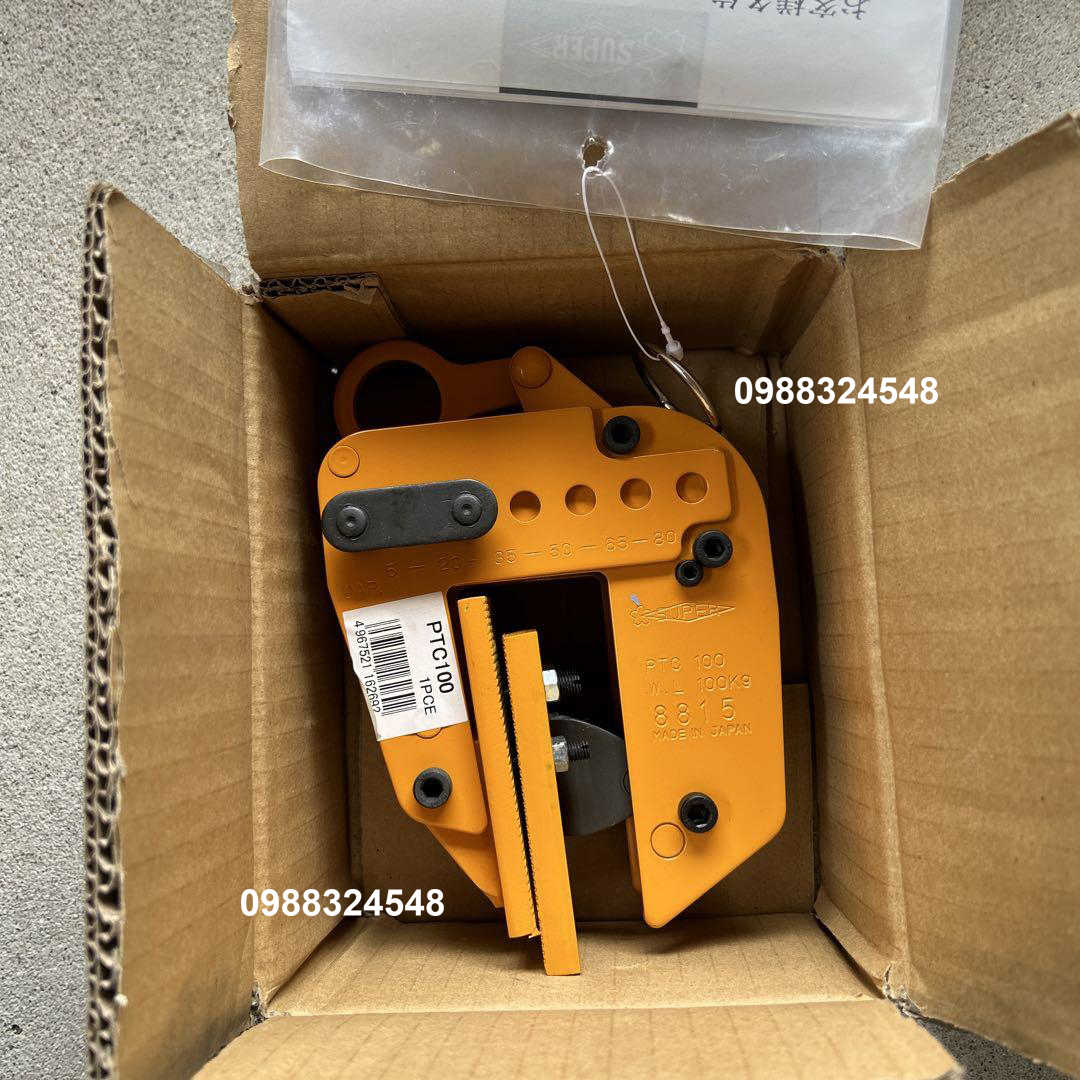

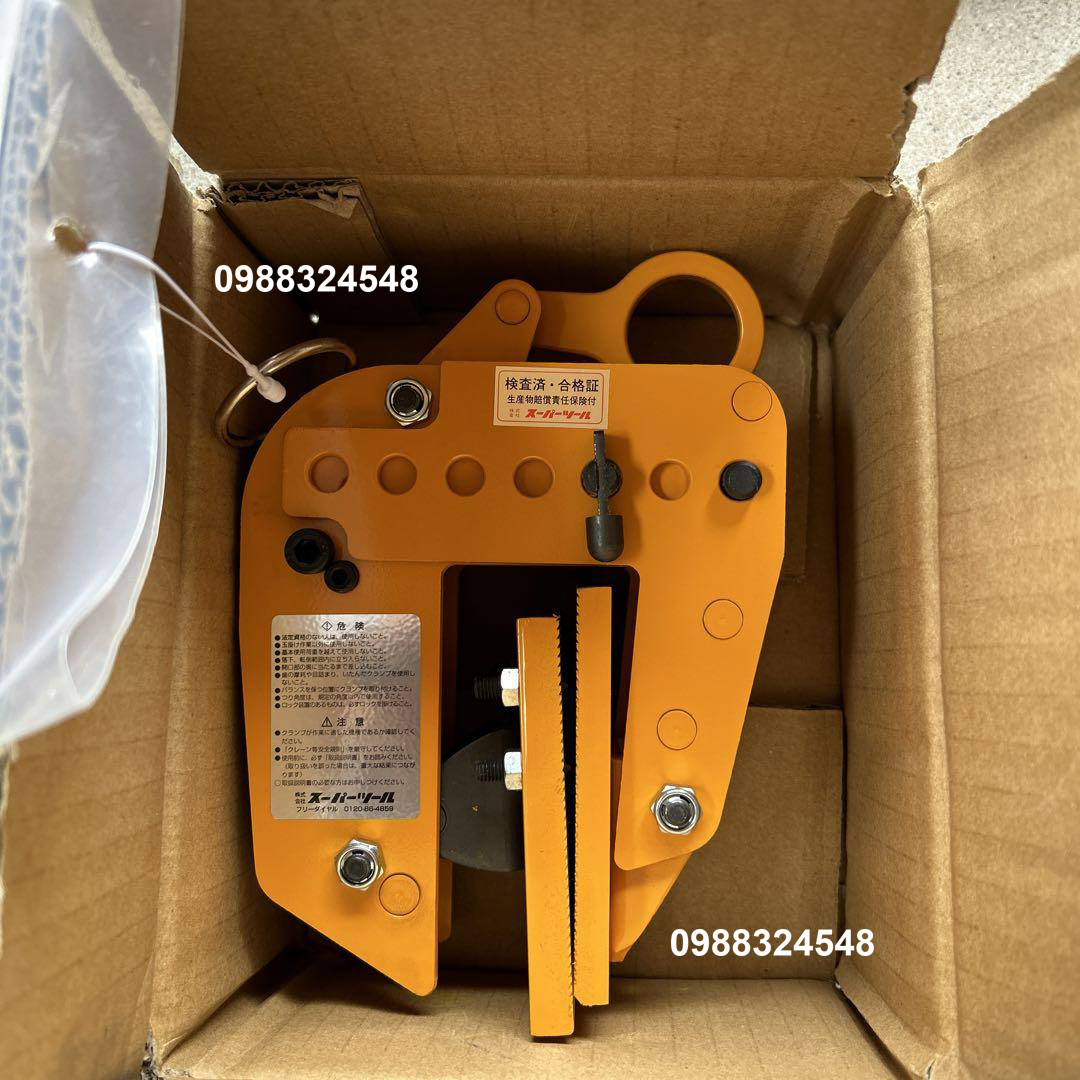

Kẹp tấm gỗ Supertool PTC100 / PTC100 Supertool LIFTING CLAMP for Panel / Beam

Kẹp tấm gỗ Supertool PTC100 / PTC100 Supertool LIFTING CLAMP for Panel / Beam

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: PTC100
  • Tải trọng: 100Kgs
  • Độ mở miệng ( 5 mức độ ):
    Mức 1: 5-20mm
    Mức 2: 20-35mm
    Mức 3: 35-50mm
    Mức 4: 50-65mm
    Mức 5: 65-80mm
  • Khối lượng: 1.8 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

Kẹp tấm gỗ Supertool PTC100 / PTC100 Supertool LIFTING CLAMP for Panel / Beam

  • Optimal for lifting and installation of wooden panels and lifting and movement of wooden beams for housing.
  • The spring type tightening lock mechanism assures a positive initial clamping force even under no-load condition.
  • The releasing of tightening lock mechanism with remote control avoids the dangerous operation of removing the clamps from the panel at high places.
  • One side of the urethane pads with spikes ensures a tight and safe clamping. One side with urethane rubber prevents the surface of panels from being damaged.
  • The clamping force increases in ratio with the weight of the load.
  • Attention: Always use this clamp in pair with a balance.

    • Kẹp tấm gỗ Supertool PTC100 / PTC100 Supertool LIFTING CLAMP for Panel / Beam

    Model PTC100
    Jaw Opening Step 1: 5-20 mm
    Step 2: 20-35 mm
    Step 3: 35-50 mm
    Step 4: 50-65 mm
    Step 5: 65-80 mm
    Capacity 100Kgs
    Net weight 1.8 kg

    Kẹp tấm gỗ Supertool PTC100 / PTC100 Supertool LIFTING CLAMP for Panel / Beam Instruction Manual
