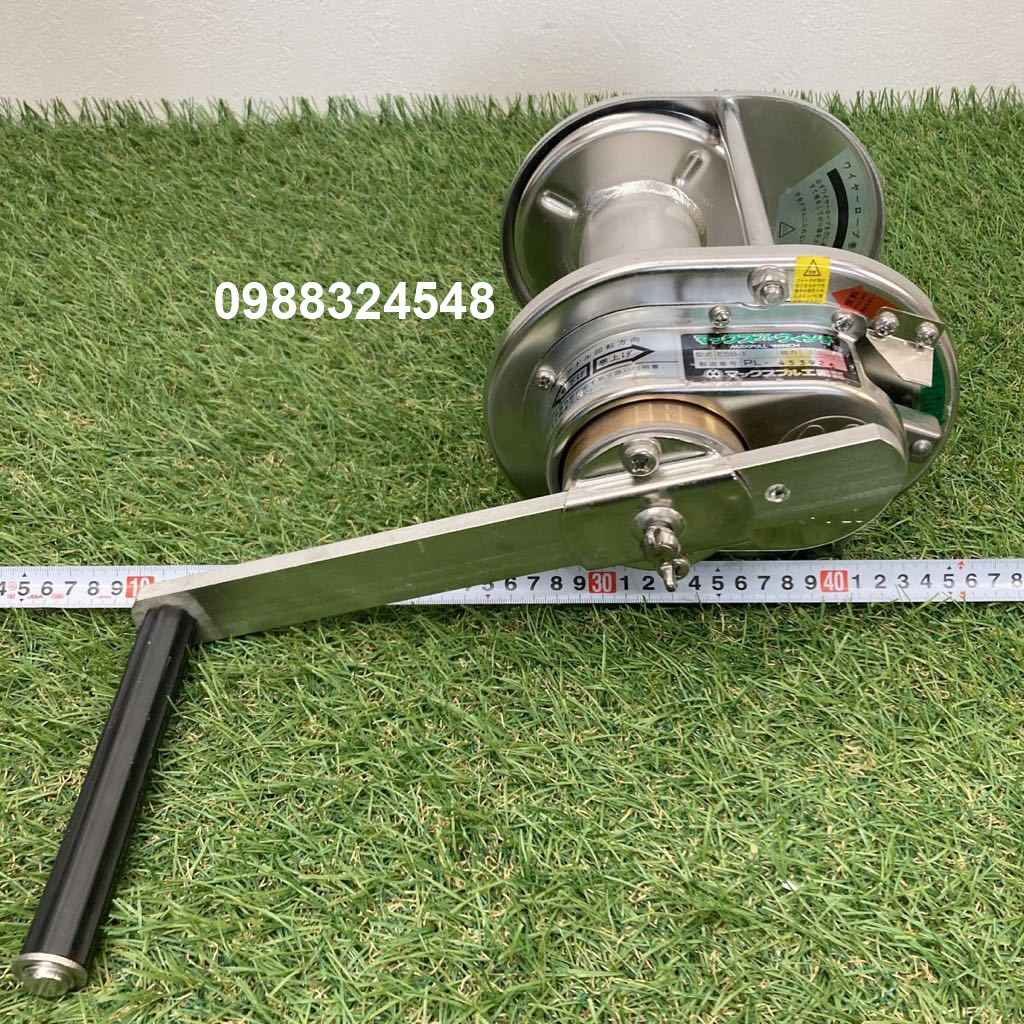

Tời quay tay inox Maxpull 100kg ESB-1 / ESB-1 Maxpull Stainlees Steel Hand Winch

Tời quay tay inox Maxpull 100kg ESB-1 / ESB-1 Maxpull Stainlees Steel Hand Winch

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: liên hệ
Hiệu lực giá bán:
  • Model: ESB-1
  • Loại inox, chống muối, chống rỉ sét
  • Tải trọng: 100 Kgs
  • Tang cuốn có thể chứa cáp 5mm x 35 mét cáp
  • Tỉ số truyền: 1/1
  • Lực vận hành:
    - Lớp thứ nhất: 14.6kg
    - Lớp thứ 3: 19kg
    - Lớp thứ 4: 21.2kg
  • Trọng lượng ( thân + tay cầm ): 7.4Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Maxpull Machinery & Engineering Co., Ltd

Tags:

Features of stainless steel manual winch (electropolishing) ESB series

  • For highly controlled clean room facilities and research facilities. In such environments, MAXPULL stainless steel winches protect the clean workplace and demonstrate outstanding reliability. Please choose the world’s only beautiful electropolished stainless steel winch with an unique shine.

    • *Simple operation
  • As the machine efficiency is high, the hand load during operation is very light compared to that of competitors’ winches and you can carry out the work easily. This winch has a compact design with minimal weight and very convenient to carry or move. In addition, the main unit can be easily attached using predefined bolts. Another major feature is that each part is made by press processing, and the whole winch is assembled with bolts, so it can be easily disassembled. If a repair is necessary, anyone can easily repair and assemble the winch by following the instruction manual and purchasing the parts.

    • *Exceptional durability
  • Ball bearings from leading manufacturers are used for all of our winch products. These ball bearings make the winding process light and exhibit outstanding strength against wear. For the reducer, our company’s custom designed heat treated gear uses an unique transposition method to allow the user to work with ease. The mechanical brake also has a mechanism that freely adjusts the gap so it is extremely durable. All surfaces are painted and treated which makes the winch resistant to rust with unrivaled durability in any working environment.

    • *Reliable safety
  • This winch is extremely safe because of carefully selected material parts, advanced design and technology. Especially for the parts where load is applied in a concentrated manner, the strength is further increased by combining ribs or double plates made by precision press processing. The mechanical brake has a double safety mechanism, so even if there is an impact applied to the claw arm, the brake will remain in place. The wire rope is fixed to a specially designed drum using a double safety structure. The end of the wire rope can be easily fixed to the drum using a Hex key L-wrench included with the product. This MAXPULL original design ensures a highly reliable and safe product.

    • Tời quay tay inox Maxpull 100kg ESB-1 / ESB-1 Maxpull Stainlees Steel Hand Winch

    Model ESB-1
    Standard Layer 4th Layer
    ​Load Rating Wire Rope Tension
    		 100kg
    Wire Rope Diameter φ5mm
    Drum Capacity 6-Layer Windings φ5mm x 35m
    Gear Ratio 1 : 1
    Effective Handle Length 250mm (9.84 inch)
    Handle Force 1st Layer：14.6kgf (32.2lbs)
    3rd Layer：19.0kgf (41.9lbs)
    4th Layer：21.2kgf (46.7lbs)
    Weight (Winch + Handle) 7.4kg

    ESB-1 Maxpull Stainless Steel Hand Winch Drawing

    Maxpull Hand Winch Instruction Manual
