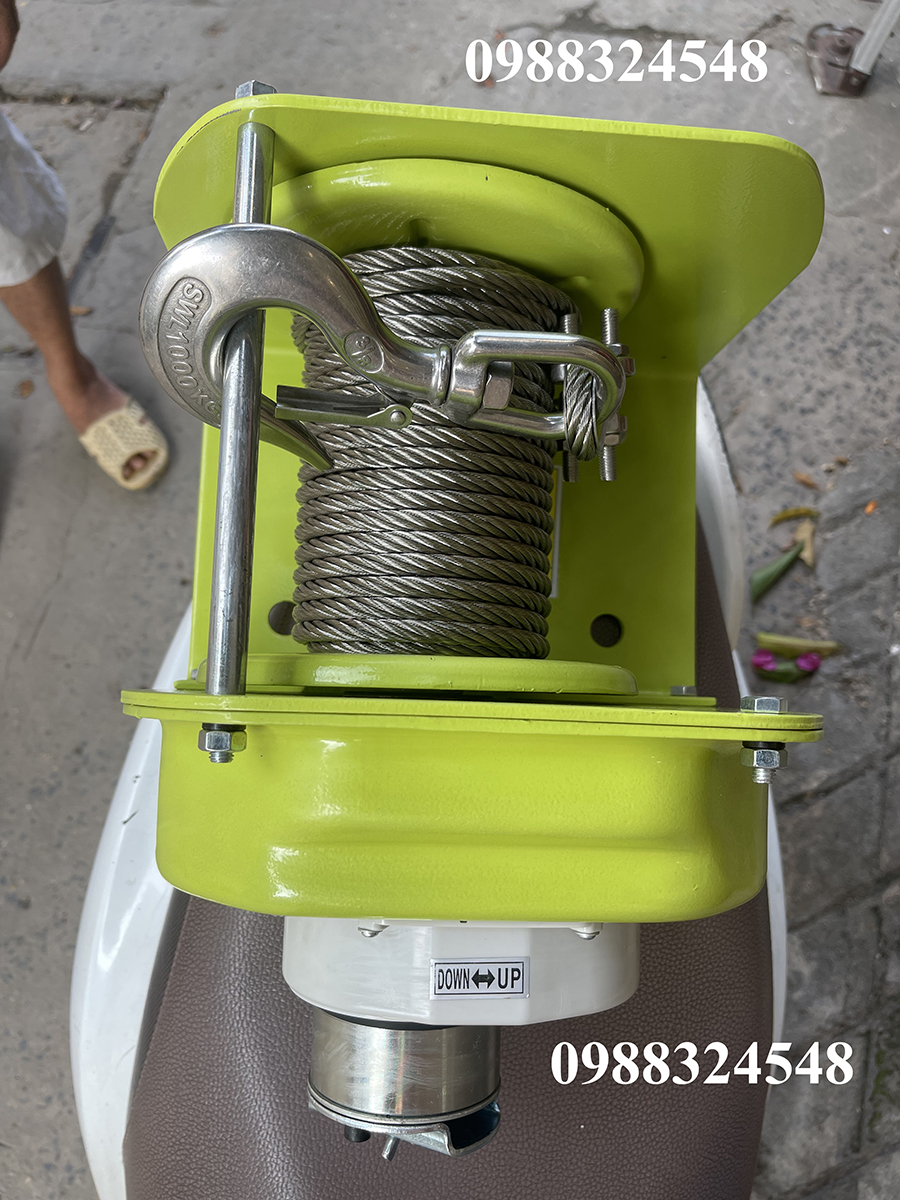

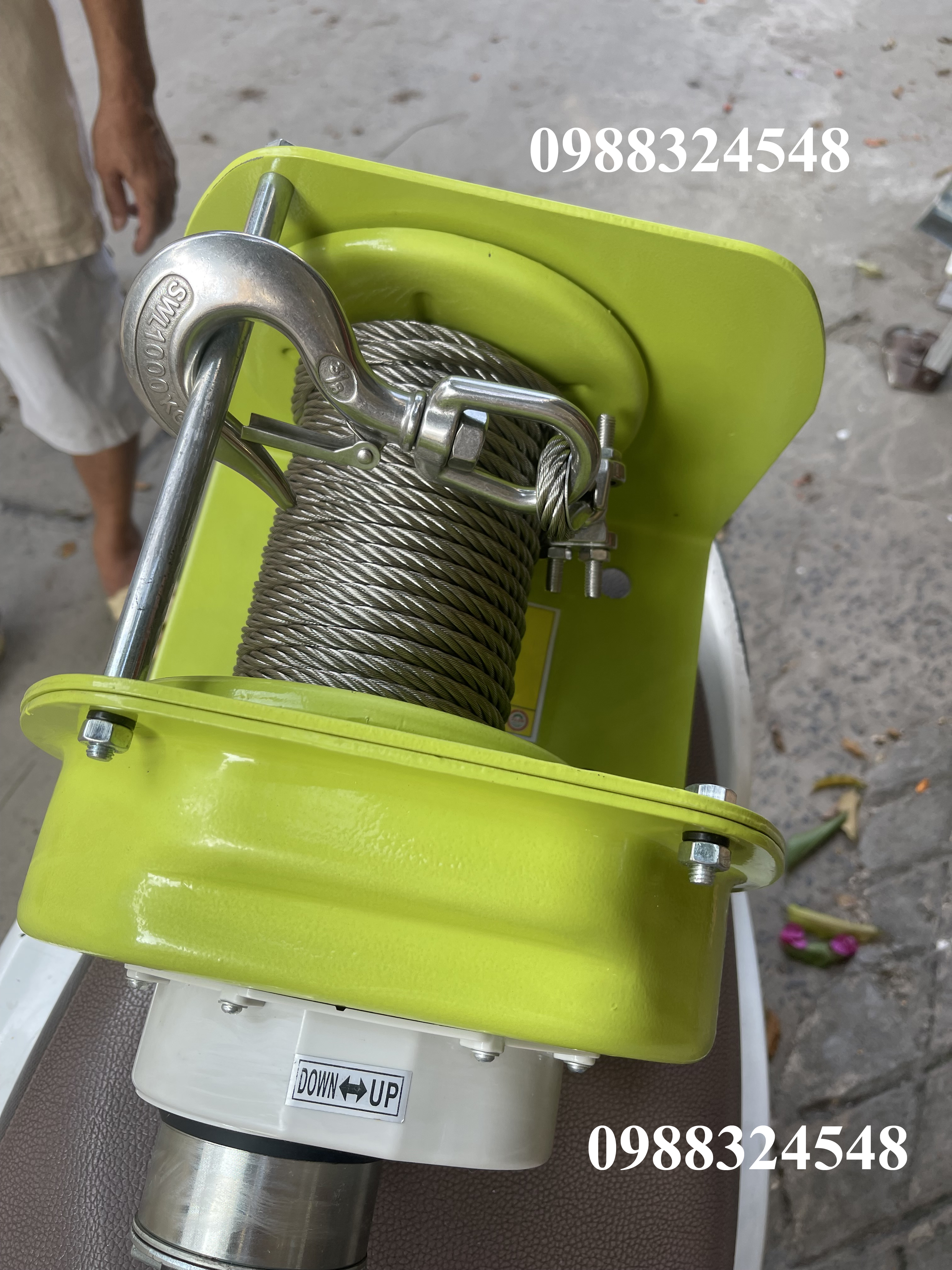

Tời quay tay 1 tấn Riken PNW-1000 / PNW-1000 Riken Hand Winch

Tình trạng: Hàng mới 100%
7.200.000 Vnđ
Hiệu lực giá bán:
  • Model: PNW-1000
  • Tải trọng: 1 tấn
  • Tang cuốn có thể chứa cáp 8mm x 40 mét cáp
  • Tỉ số truyền: 1/12.19
  • Trọng lượng ( thân + tay cầm ): 19.7Kg
  • Nhà sản xuất: Riken Lifting Equipment Co., Ltd

PNW series Riken Hand Winch

  • Compact design
  • Ergonomic rubber handle
  • Multiple frame mounting positions
  • Solid machined gear
  • Dual cable anchor point
  • Drill drive adapter standard on stainless steel. Optional on carbon steel
  • Automatic weatherproof weston style load brake
  • High gear ratio
  • Test certificate & serial number
  • For lifting or pulling/tensioning
  • Left hand version of stainless steel winch available

  • Tời quay tay 1 tấn Riken PNW-1000 / PNW-1000 Riken Hand Winch

    Model PNW-1000
    Capacity 1000kg
    Wire Rope Diameter φ8mm
    Drum Capacity 5-Layer Windings φ8mm x 40m
    Gear Ratio 12.19 : 1
    Handle Force 11.6kg
    Weight (Winch + Handle) 19.7kg

    PNW-1000 Riken Hand Winch Drawing

    Riken Hand Winch Instruction Manual
