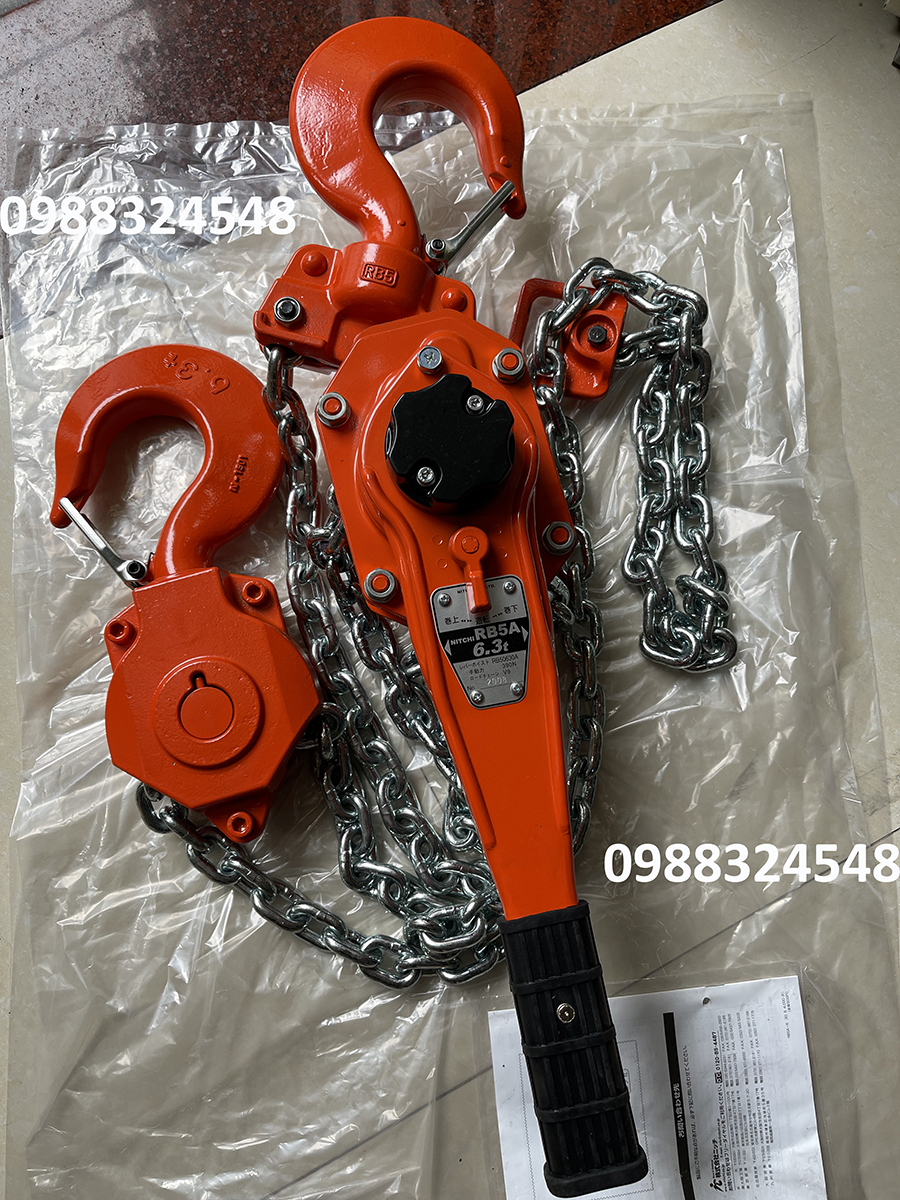

Pa lăng lắc tay 6.3 tấn Nitchi RB50630 / RB50630 Nitchi Lever Chain Hoist

Pa lăng lắc tay 6.3 tấn Nitchi RB50630 / RB50630 Nitchi Lever Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
8.500.000 Vnđ
Hiệu lực giá bán:
  • Model: RB50630
  • Tải trọng: 6.3 tấn
  • Chiều cao nâng: 1.5 mét
  • Nhà sản xuất: Nitchi Co., Ltd
  • Xuât xứ: Nhật Bản

Tags:

RB5 Series Nitchi Lever Chain Hoist

  • The RB5 is manufactured with durable and robust construction the NITCHI products are renowned for. The durability and ruggedness will ensure long use with less maintenance and repair costs.
  • The refined well-balanced, compact, lightweight design of RB5 is the result of high quality materials used together with the latest technology.
  • The enclosed design of RB5 will provide higher protection against water, dirt and other foreign matter
  • The super-tough heavy-duty galvanized load chains are exclusively heat-treated, special alloy steel.
  • The new large opening, deep pocketed hooks swivel in all directions and are made of high grade steel, drop forged and expertly heat-treated for extra strength
  • The super-tough forged steel load chain guides are longwearing, and will provide increased protection against jamming of the load chain and load sheave.
  • Two alternately functioning independent pawls give double safety and make fine adjustments possible.
  • Overload Protection is recommended for additional safety to personnel and materials. When the setting is exceeded, the Precision Clutch Type Overload Protection will instantly prevent hoisting.
  • The length of the load chain can be quickly adjusted with one hand by merely switching the Change-over lever to "NEUTRAL (Freewheeling)"
  • Suitable for operation within a -20o to +130o C, -4o to +266o F temperature range

    • RB50630 Nitchi Lever Chain Hoist

    Model RB50630
    Capacity ( ton )
    6.3
    Standard lift ( m )
    1.5
    Headroom ( mm )
    580
    Hand effort to lift full working load ( kg )
    39
    Load chain
    9mm x 2 fall
    Grade of chain
    V
    Net weight ( kg )
    30.5

    RB5 Series Nitchi Lever Chain Hoist Manual Instruction
