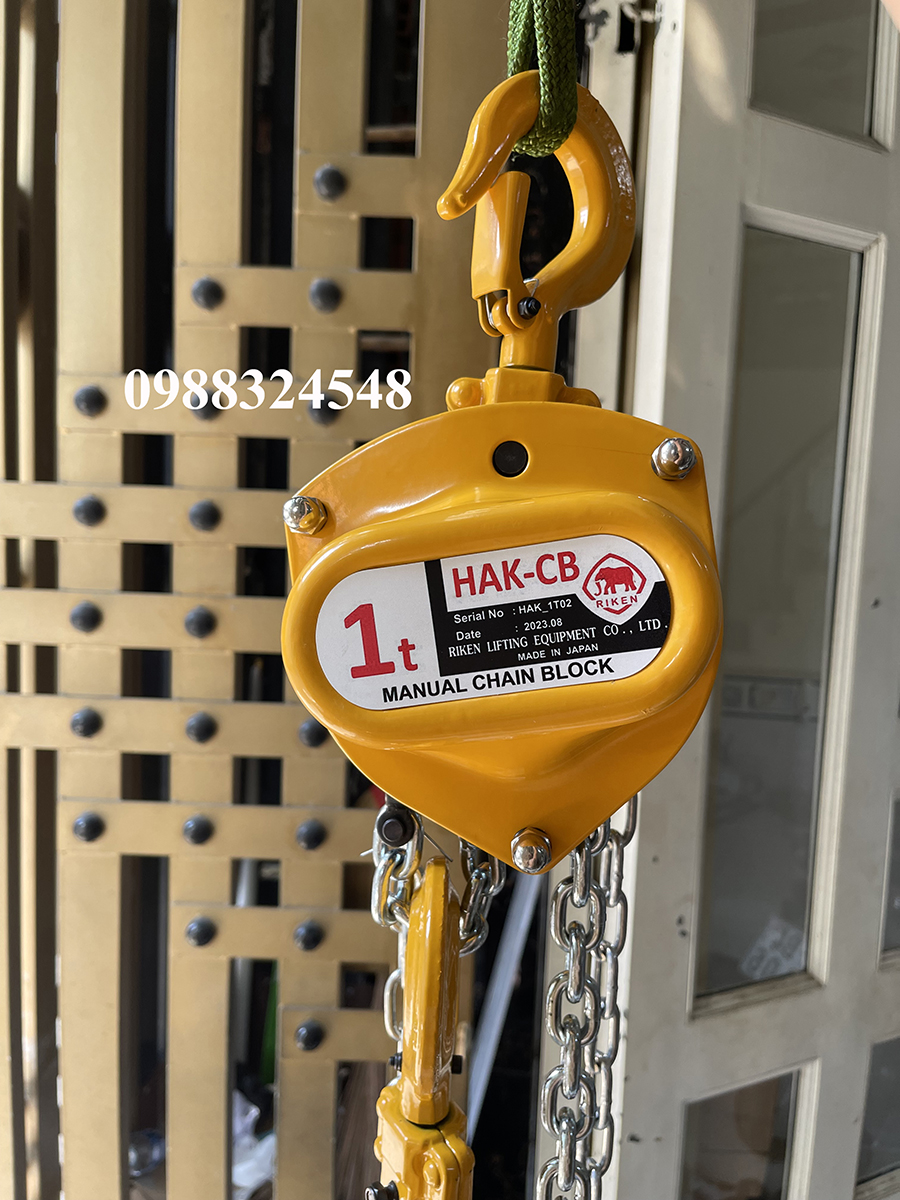

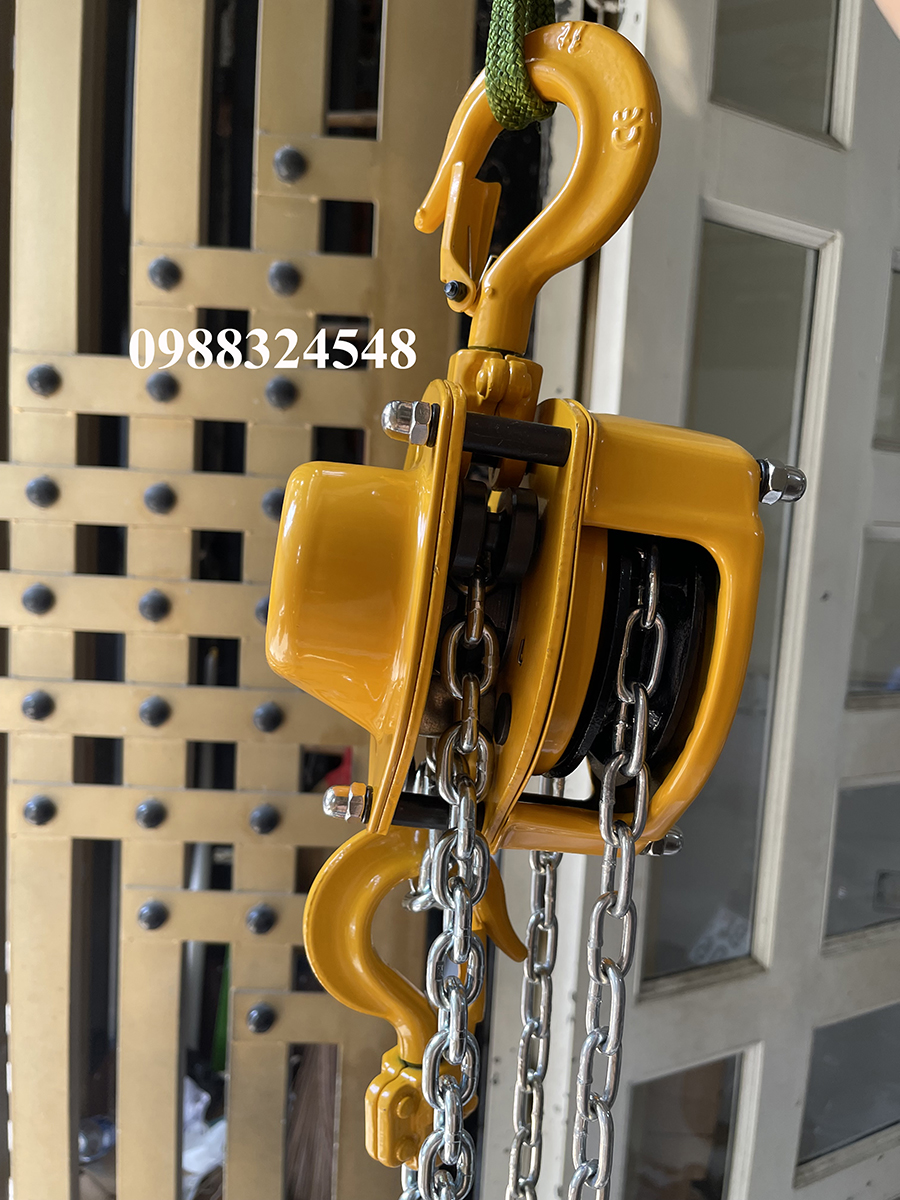

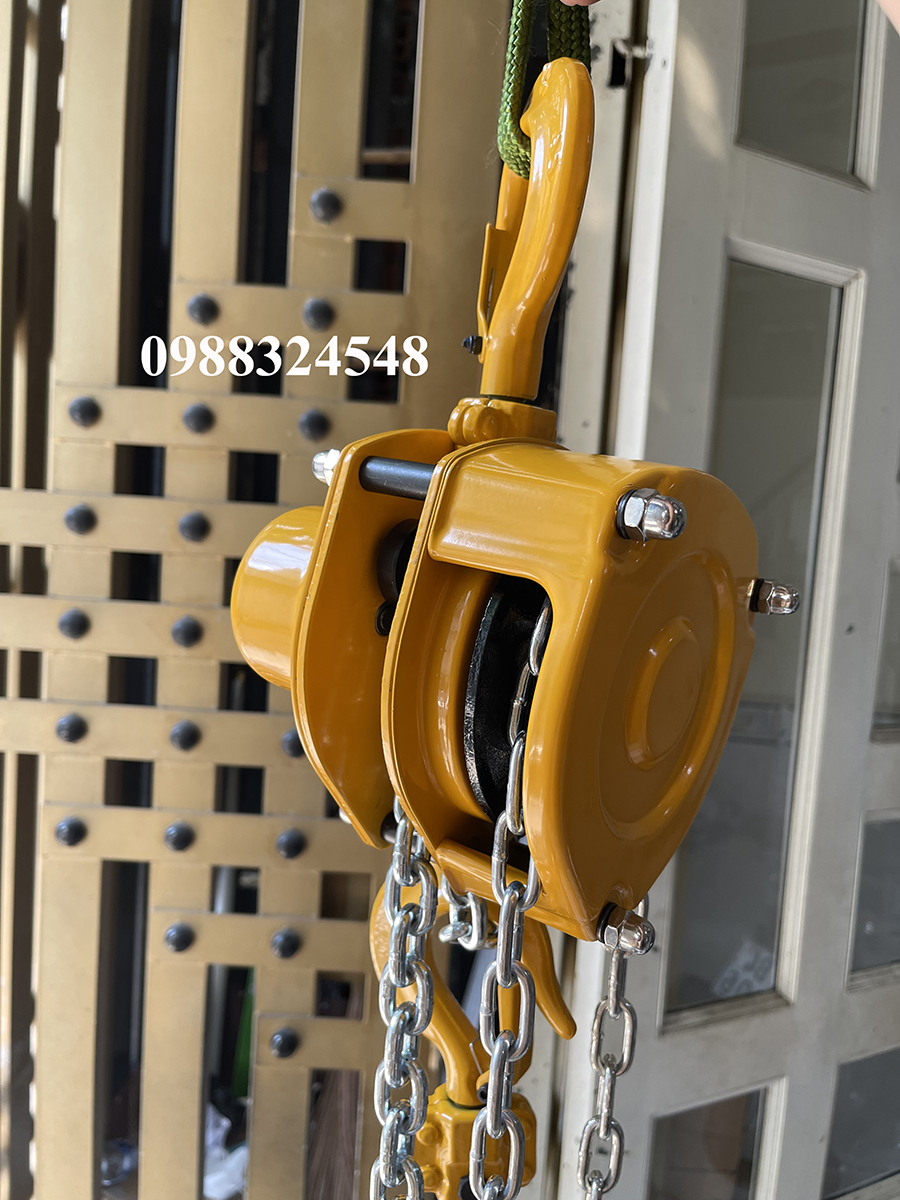

Pa lăng kéo tay Riken 1 tấn HAK-CB/ 1 ton HAK-CB Riken Manual Chain Hoist

Pa lăng kéo tay Riken 1 tấn HAK-CB/ 1 ton HAK-CB Riken Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
2.200.000 Vnđ
Hiệu lực giá bán:

Tags:

HAK-CB Series Manual Chain Hoist

  • The HAK-CB series is built with premium grade components for long life in the toughest industrial and heavy construction applications. HAK-CB Series are small and light, yet extremely durable, with industry-leading quality.
  • Lighter, smaller, and more efficient, these hoists are invaluable for lifting applications.
  • A high-class load chain with a breaking strength of 1000 N/㎟ (100 kgf/㎟) is key to reliable and safe operation.
  • The dry-type braking mechanism provides excellent performance.
  • Shock-resistant gear case and hand wheel cover
  • Double-pawl spring mechanism for extra reliability

    • HAK-CB Series Riken Manual Chain Hoist

    Model Capacity
    (ton)    		 Standard
    Lift
    (m)    		 Hand Chain
    Folded
    Length
    (m)    		 Load Chain
    Dia. ×
    Chain Fall
    (mm)）    		 Mass
    (Net Weight)
    (kg)
    HAK-CB-0.5T 0.5 2.5 2.5 5.0×1 10
    HAK-CB-1T 1 6.3×1 11.5
    HAK-CB-1.5T 1.5 7.1×1 14.5
    HAK-CB-2T 2 3 3 8.0×1 20
    HAK-CB-2.5T 2.5 9.0×1 27
    HAK-CB-3T 3 7.1×2 24
    HAK-CB-5T 5 3 3.5 9.0×2 41
    HAK-CB-7.5T 7.5 3.5 4.0 9.0×3 63
    HAK-CB-10T 10 9.0×4 83
    HAK-CB-15T 15 3.5 4.5 9.0×6 155
    HAK-CB-20T 20 9.0×8 235
    HAK-CB-30T 30 9.0×10 310
    HAK-CB-40T 40 9.0×14 480
    HAK-CB-50T 50 9.0×16 640

    HAK-CB-1T Manual Chain Hoist - Drawing

    HAK-CB Series Riken Manual Instruction
