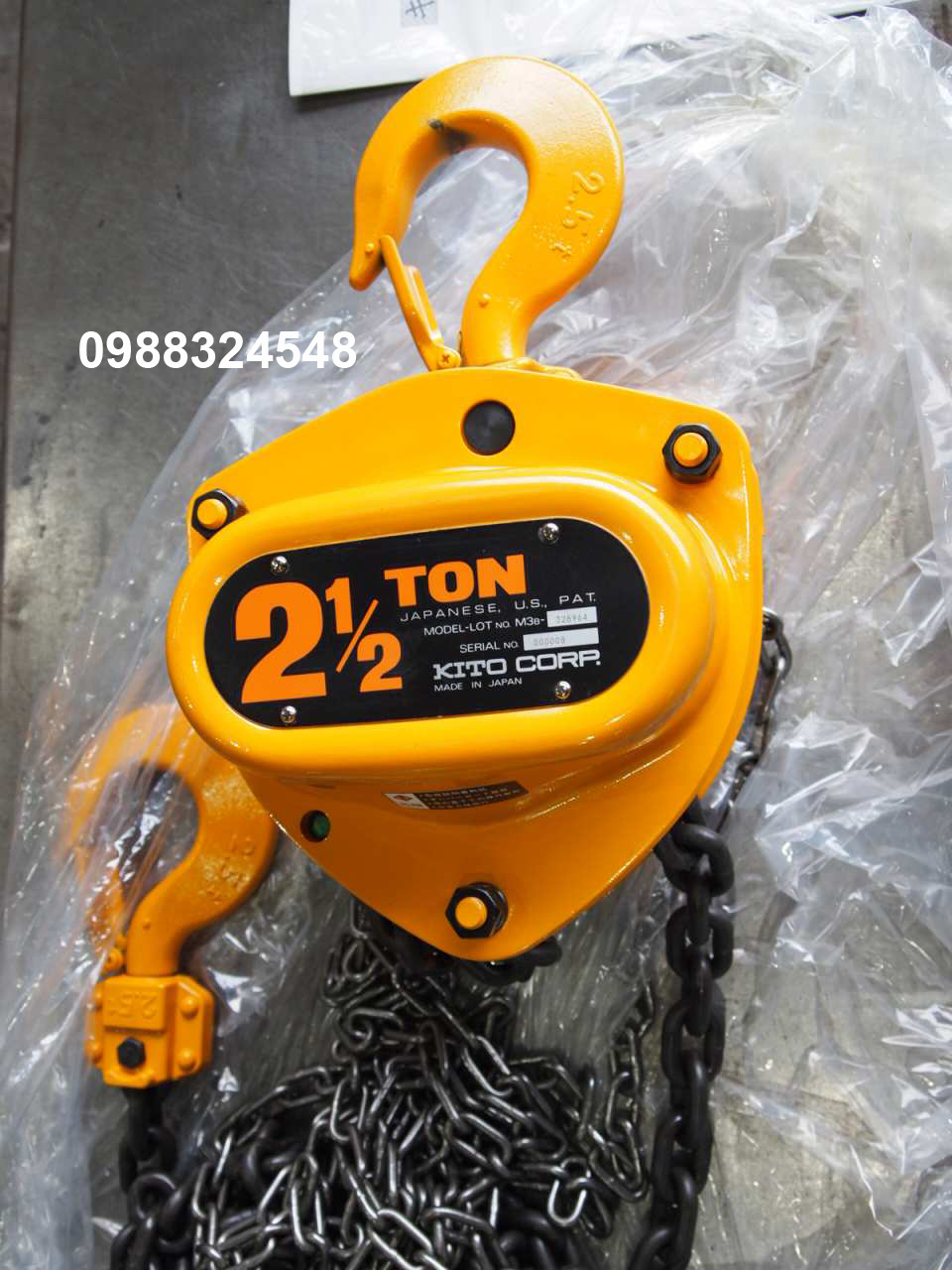

Pa lăng kéo tay Kito CB025 / CB025 Kito Manual Chain Hoist

Pa lăng kéo tay Kito CB025 / CB025 Kito Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: CB025
  • Tải trọng: 2.5 tấn
  • Cáp dài: 3 mét
  • Nhà sản xuất: Kito Corp
  • Xuất xứ: Nhật bản

Tags:

CB Series Manual Chain Hoist

  • The CB series is built with premium grade components for long life in the toughest industrial and heavy construction applications. CB Series are small and light, yet extremely durable, with industry-leading quality.
  • Lighter, smaller, and more efficient, these hoists are invaluable for lifting applications.
  • A high-class load chain with a breaking strength of 1000 N/㎟ (100 kgf/㎟) is key to reliable and safe operation.
  • The dry-type braking mechanism provides excellent performance.
  • Shock-resistant gear case and hand wheel cover
  • Double-pawl spring mechanism for extra reliability

    • CB Series Kito Manual Chain Hoist

    Model Capacity
    (ton)    		 Standard
    Lift
    (m)    		 Hand Chain
    Folded
    Length
    (m)    		 Load Chain
    Dia. ×
    Chain Fall
    (mm)）    		 Mass
    (Net Weight)
    (kg)
    CB005 0.5 2.5 2.5 5.0×1 10
    CB010 1 6.3×1 11.5
    CB015 1.5 7.1×1 14.5
    CB020 2 3 3 8.0×1 20
    CB025 2.5 9.0×1 27
    CB030 3 7.1×2 24
    CB050 5 3 3.5 9.0×2 41
    CB075 7.5 3.5 4.0 9.0×3 63
    CB100 10 9.0×4 83
    CB150 15 3.5 4.5 9.0×6 155
    CB200 20 9.0×8 235
    CB300 30 9.0×10 310
    CB400 40 9.0×14 480
    CB500 50 9.0×16 640

    CB025 Manual Chain Hoist - Drawing

    CB Series Kito Manual Instruction
