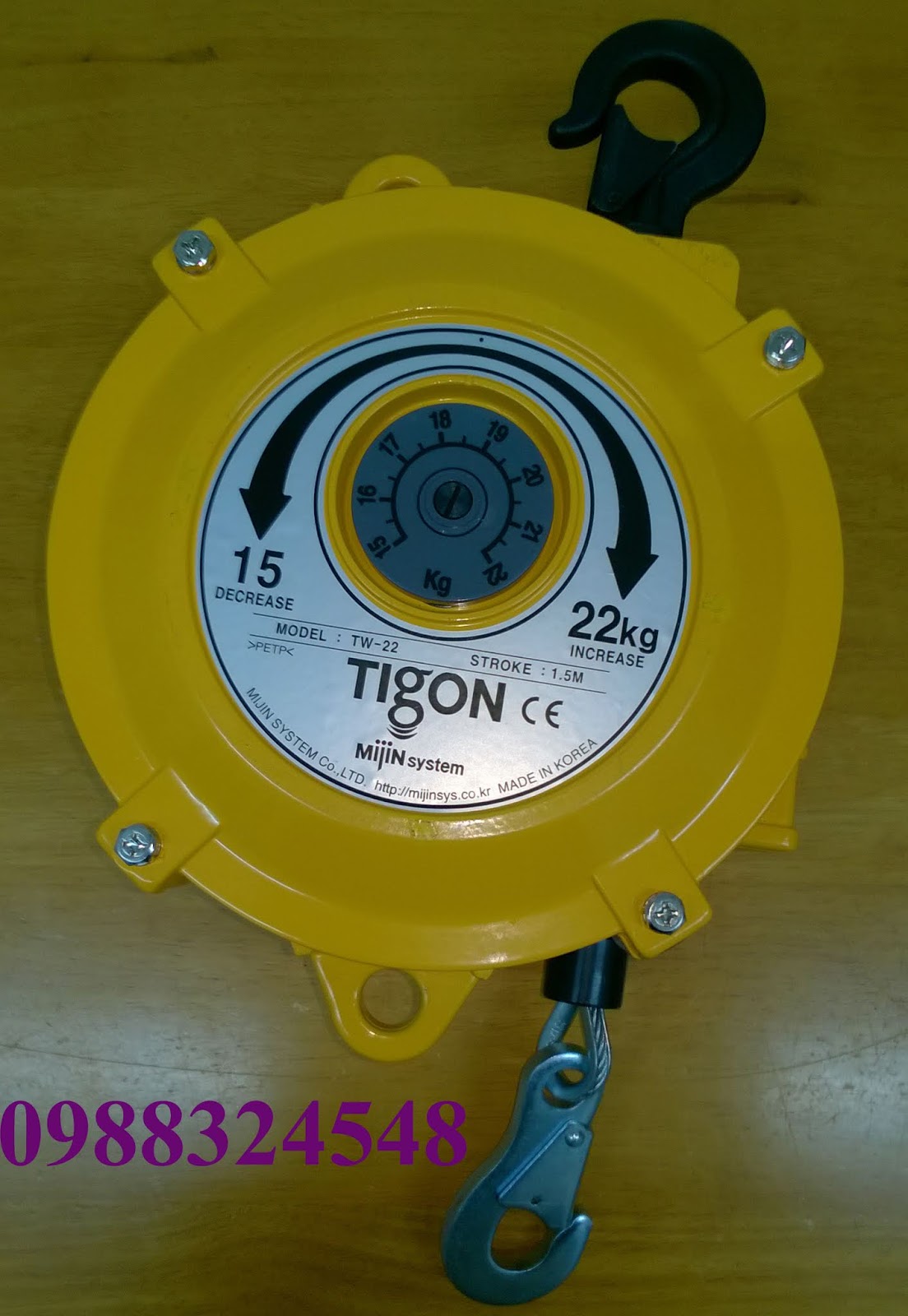

Pa lăng cân bằng Tigon TW-22 / TW-22 Tigon Spring Balancer

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453

Tình trạng: Hàng mới 100%

Giá: Liên hệ

Hiệu lực giá bán:

Model: TW-22
Tải trọng: 15-22kg
Cáp dài: 1.5 mét
Khối lượng: 7.2kg
Xuất xứ: Hàn Quốc
Nhà sản xuất: Mijin System Inc.

Tags:

Descriptions
Specifications
Download
Blogs

TW Series Tigon Spring Balancer

TOOL SUSPENSION: No power source nessary while holding and stabilizing tools. Ergonomically beneficial/efficient by alleviating tool's weight and worker fatigue while completing repetitive tasks.

LIGHT WEIGHT: Zero gravity balancer makes tools feel virtually weightless and maximizes efficiency and accuracy while operating. Adjustable tension and cable length.

WORKPLACE SAFETY: Keeps the work environment safe and the workplace clear of tools, fixtures, etc.

MATERIALS: Aluminum casing and drum, steel cable

Without an internal spring, the zero gravity balancer can support a heavier weight capacity than a normal balancer. When the operator releases the tool, it remains at the same position and will not fully retract. Overall, this useful tool increases worker efficiency and safety while decreasing worker fatigue.

Main hanger rotates 360°

Additional tool clips are attached on the upper and lower sides

Prevents the attached tool from free falling when a spring breaks

Includes a gauge to sense tension control quanitity

TW-22 Mijin Spring Balancer Drawing

TW Series Mijin Spring Balancer

Model	Capacity (kg)	Stroke (m)	Mass (kg)
TW-00	0.5～1.5	0.5	0.2
TW-0	0.5～1.5	1.0	0.5
TW-3	1.0～3.0	1.3	1.4
TW-5	2.5～5.0	1.3	1.5
TW-9	4.5～9.0	1.3	3.4
TW-15	9.0～15	1.3	3.8
TW-22	15～22	1.5	7.2
TW-30	22～30	1.5	7.6
TW-40	30～40	1.5	9.8
TW-50	40～50	1.5	10.4
TW-60	50～60	1.5	11.6
TW-70	60～70	1.5	11.8
TW-90	70～90	2.1	27
TW-105	85～105	2.1	29
TW-120	100～120	2.1	30

TW Series Mijin Spring Balancer Instruction Manual

TW-40_TW-70 Mijin Spring Balancer Part List
