Pa lăng cân bằng Endo EWF-22 / EWF-22 Endo Spring Balancer

Pa lăng cân bằng Endo EWF-22 / EWF-22 Endo Spring Balancer

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: EWF-22
  • Tải trọng: 15-22kg
  • Cáp dài: 1.5 mét
  • Nhà sản xuất: Endo Kogyo

Tags:

EWF Series Endo Spring Balancer

  • Its capacity is 4.5kg-120kg.

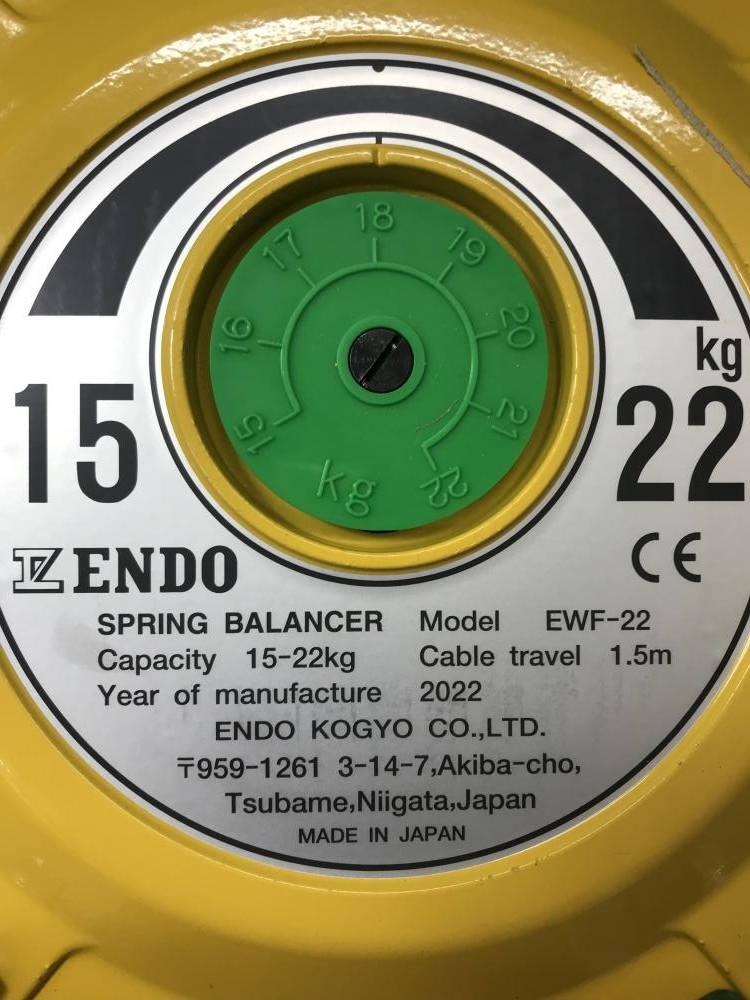

  • The balancer of this series is equipped with safety features that are same as the EWS series. It also has a gauge for adjustment with respect to the suspended mass. Therefore, tension adjustment can be performed easily.
  • For suspending electrical devices, jigs, tools, and materials for processed goods.
  • Centering operations. Balancing device for various kinds of equipment.

    • EWF-22 Endo Spring Balancer Drawing


    EWF Series Endo Spring Balancer

    Model Capacity
    (kg)    		 Stroke
    (m)    		 Wire rope
    diameter
    (mm)    		 Mass
    (kg)    		 How to
    adjust
    spring
    tension
    EWF-9 4.5～9.0 1.3 4.0 3.5 Worm
    EWF-15 9.0～15.0 1.3 4.0 3.8
    EWF-22 15.0～22.0 1.5 4.76 7.3
    EWF-30 22.0～30.0 1.5 4.76 7.7
    EWF-40 30.0～40.0 1.5 4.76 9.7
    EWF-50 40.0～50.0 1.5 4.76 10.1
    EWF-60 50.0～60.0 1.5 4.76 11.1
    EWF-70 60.0～70.0 1.5 4.76 11.4
    EWF-90 70.0～90.0 2.0 4.76 21.9
    EWF-105 85.0～105.0 2.0 4.76 24.0
    EWF-120 100.0～120.0 2.0 4.76 27.5

    EWF-22 Endo Spring Balancer Instruction Manual
