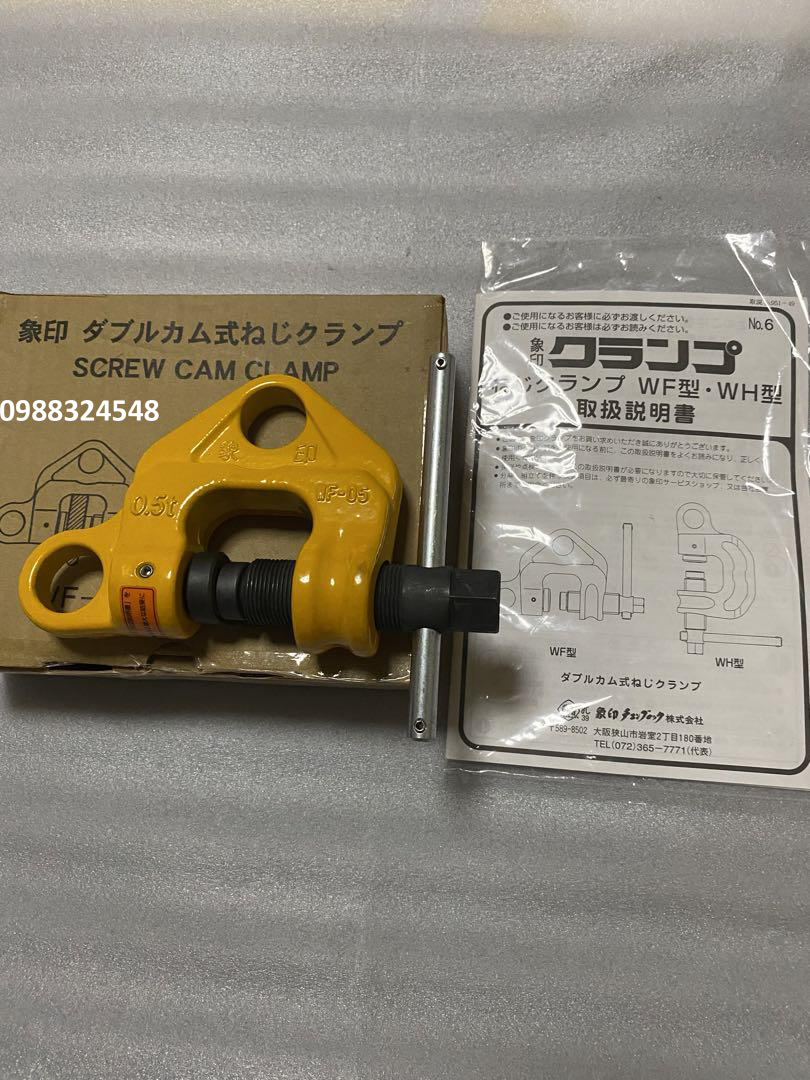

Kẹp vít Elephant 500kg WF-05/ WF-05 Elephant Screw Cam Clamp

Kẹp vít Elephant 500kg WF-05/ WF-05 Elephant Screw Cam Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

WF Series Elephant Screw Cam Clamp - Omnidirectional Double Cam Lock Screw Type Clamp

  • One of the world’s lightest screw clamps: Main body, cam and screw are made of a special alloy steel which is manufactured using our original heat treatment process.
  • The round double cam lock design allows for a stronger clamping capacity and safe operation. The turning of the round double cams engages the clamp load. Both cams contact the internal spherical surface assuring safe operation, free from slipping.
  • Two lifting holes allow for omnidirectional, vertical and horizontal lifts.
  • The clamp can be used to hoist inclined loads such as I-beams. Do not place on a beam taper that exceeds 10°.
  • The fine screw threading creates a vibration resistant clamp.
  • Round cam and screw are corrosion resistant with the main –body of the clamp having a baked finish.
  • Lifting & Transporting: General steel products such as H beams, I beams, steel plate, channel and angle iron. Various structures also include steel braces and pillars.
  • Suspension: Clamps can be used for suspending manual chain hoists, electric chain hoists, etc…
  • Dragging: The clamps can be used for pulling bottom steel board and other objects along the ground.

    • WF Series Elephant Screw Cam Clamp - Omnidirectional Double Cam Lock Screw Type Clamp

    Model WF-05
    Capacity ( ton )
    0.5
    Jaw Opening (mm)
    3-28
    Net weight ( kg )
    1.7
    Kẹp vít Elephant 500kg WF-05/ WF-05 Elephant Screw Cam Clamp
    Model A B C D E F G H I
    WF-05 (mm) 41 32 30.5 21 33 108 138 24 42
    Model J φK φL M N O φP φQ φR
    WF-05 (mm) 98 25 25 12 16 120 10 26 21

    WF Series Elephant Screw Cam Clamp Manual Instruction
