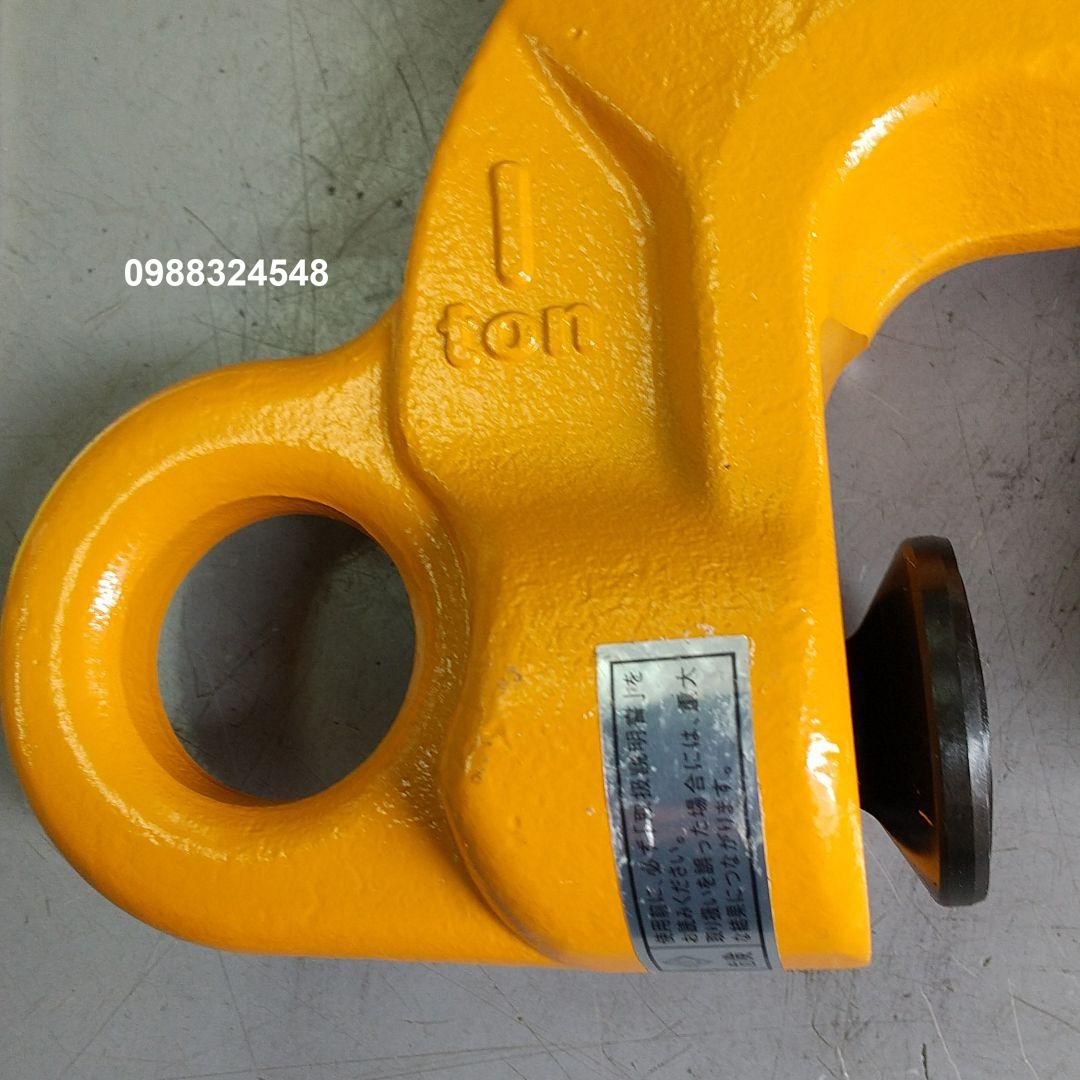

Kẹp vít 1 tấn Supertool SDC1N / SDC1N Supertool Screw Cam Clamp

Kẹp vít 1 tấn Supertool SDC1N / SDC1N Supertool Screw Cam Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: SDC-1N
  • Tải trọng: 1 tấn
  • Độ mở miệng: 0-40mm
  • Khối lượng: 3.4 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

Kẹp vít 1 tấn Supertool SDC1N / SDC1N Supertool Screw Cam Clamp

  • This screw clamp is for all-purpose use, such as raising and lowering, lateral (horizontal) pulling and turning-over lifting.
  • This clamp is equipped with a screw cam(spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation.
  • The clamping force increases in proportion to the weight of the load.
  • High-frequency quenching of special alloy steel gives greater durability to the cam.

    • Kẹp vít 1 tấn Supertool SDC1N / SDC1N Supertool Screw Cam Clamp

    Model SDC-1N
    Jaw Opening 0 - 40 mm
    Capacity 1 tấn
    Net weight 3.4 kg

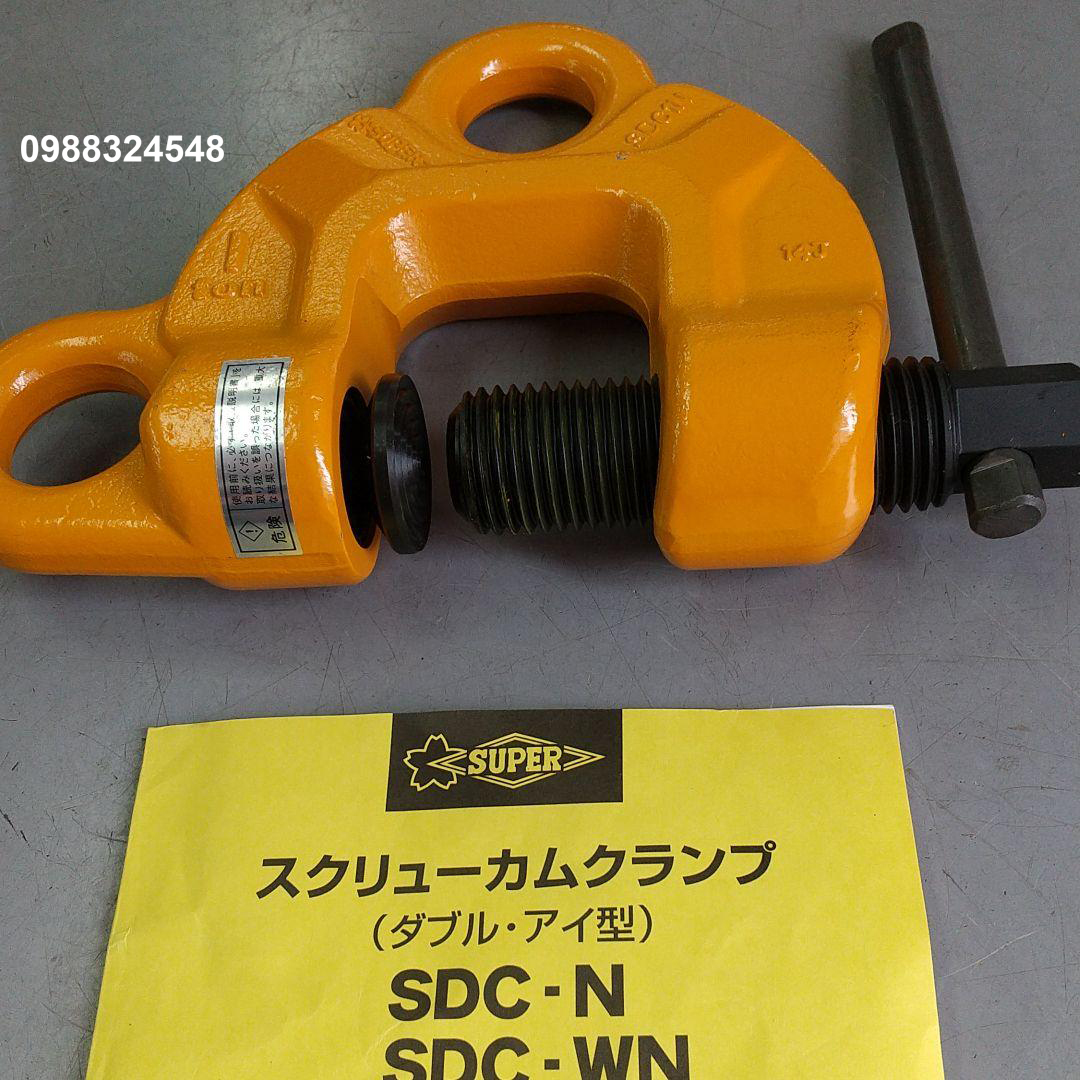

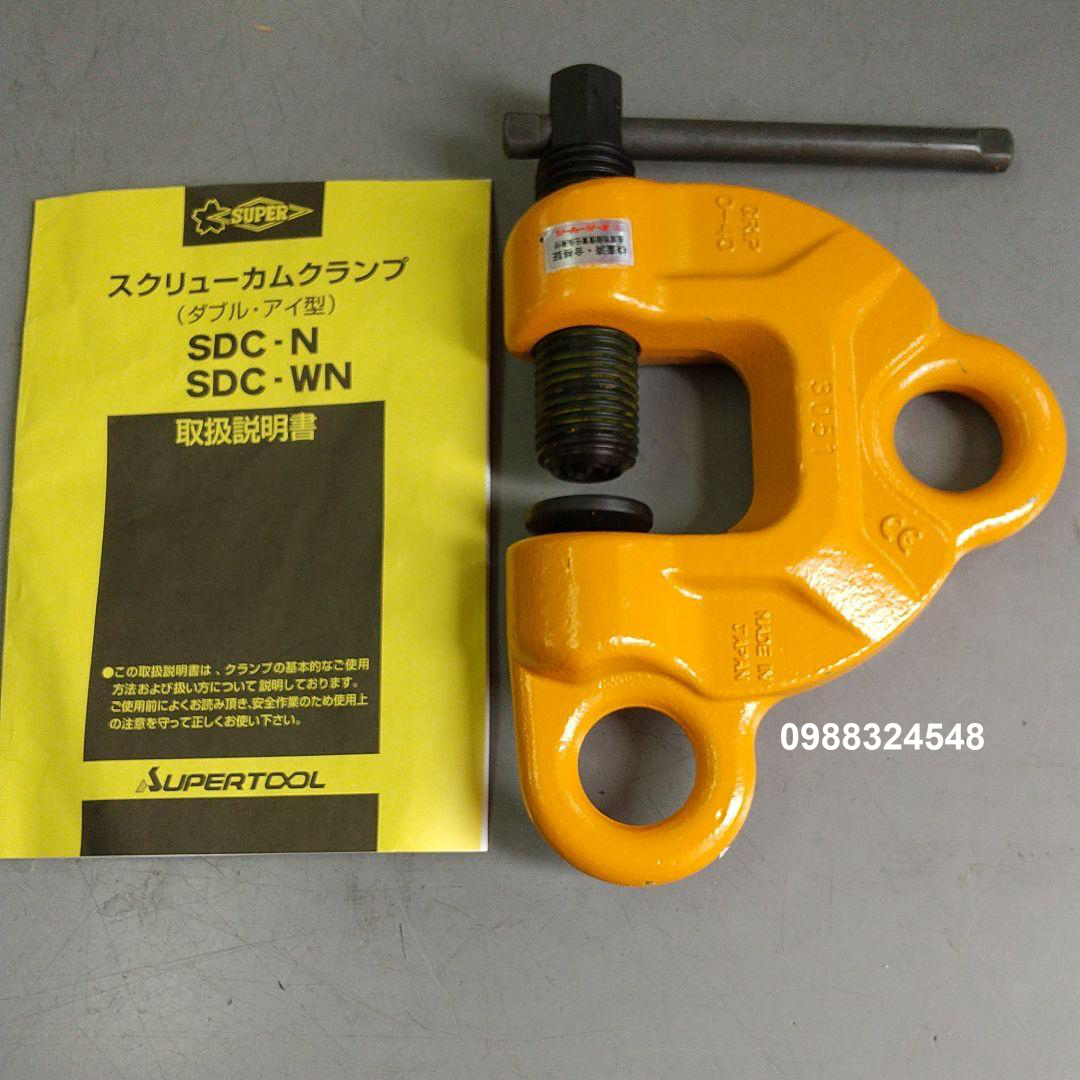

    SDC-N Series Supertool Screw Cam Clamp Instruction Manual
