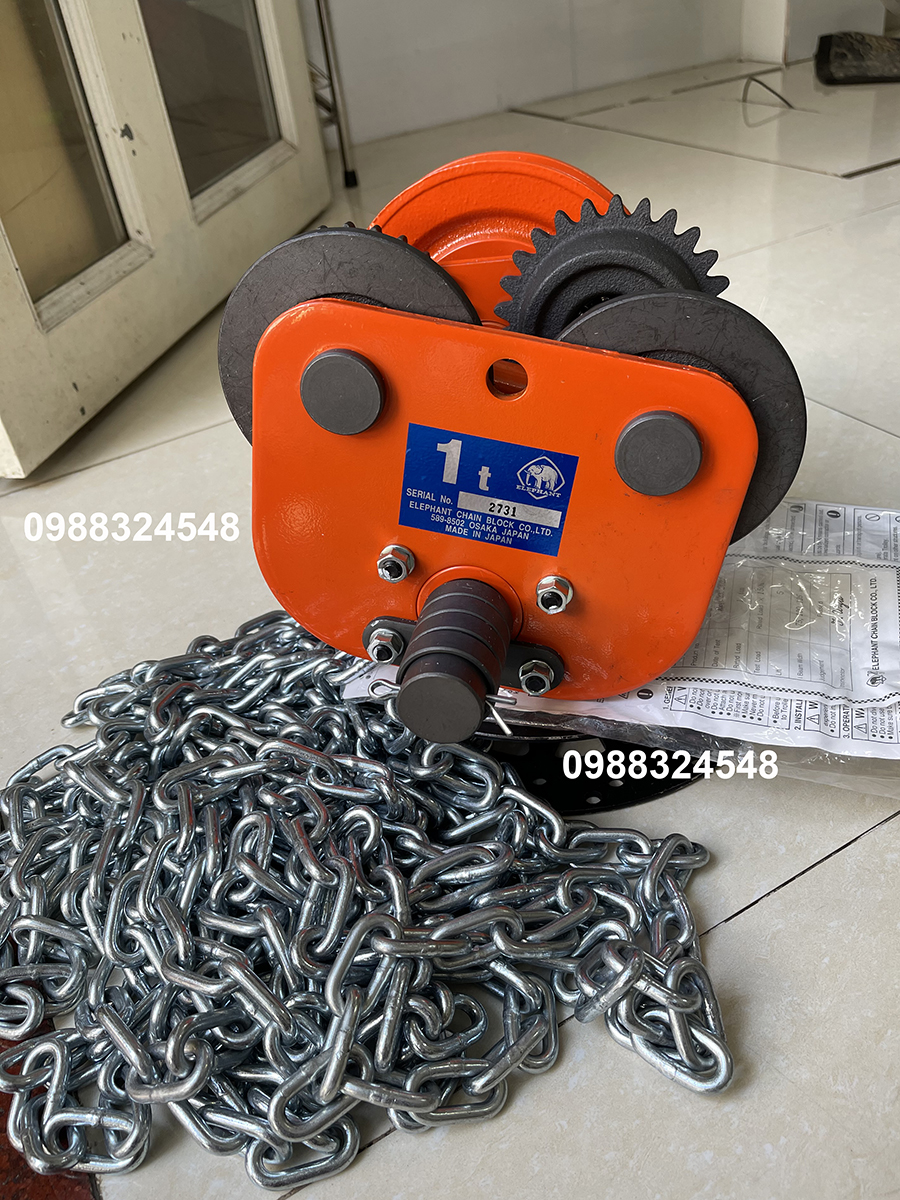

Con chạy kéo tay 1 tấn Elephant G-1/ 1 ton G-1 Elephant Geared Trolley

Con chạy kéo tay 1 tấn Elephant G-1/ 1 ton G-1 Elephant Geared Trolley

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Elephant Push & Geared Type Beam Trolleys

  • Trolleys are adjustable to fit various beam widths and have a solid carbon steel design. They have parkerized wheels for corrosion resistance and high quality closed bearings for smooth traversing. They also have anti-drop plates for added security. They can be connected directly to manual hoists by removing the top hook of the hoist, thus reducing headroom.
  • Adjustable to fit various beam widths
  • A solid carbon steel design
  • The wheels of the trolley fit both I-Beams and H-Beams
  • Trolley wheels are parkerized for corrosion resistance
  • High quality closed bearings provide smooth traversing
  • With Anti-Drop plates
  • Suitable for operation within a -20o C to +60o C, -4o F to 140o F temperature range

    • Con chạy kéo tay 1 tấn Elephant G-1/ 1 ton G-1 Elephant Geared Trolley

    Model G-1
    Capacity ( ton )
    1
    Standard lift ( m )
    2.5
    Hand chain
    Dia. x pitch ( mm ) x ( mm )
    6x26.6
    I-beam width ( mm )
    75-125mm
    Min. radius of I-beam ( mm )
    1100
    Net weight ( kg )
    16

    Con chạy kéo tay 1 tấn Elephant G-1/ 1 ton G-1 Elephant Geared Trolley Drawing

    Elephant Push & Geared Type Beam Trolleys Manual Instruction
