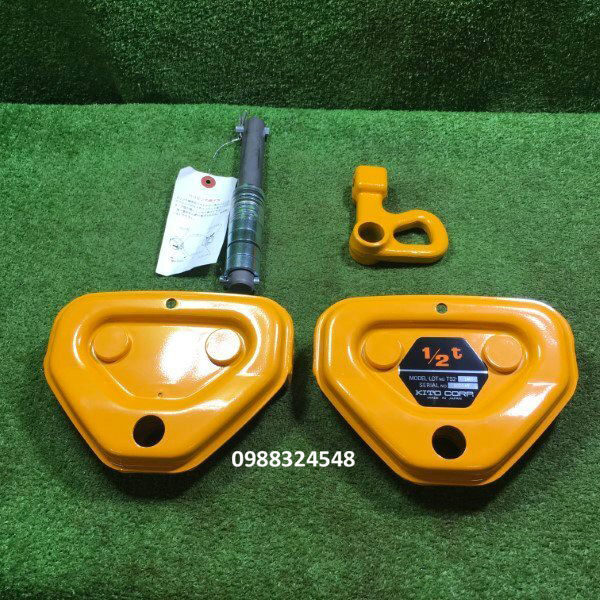

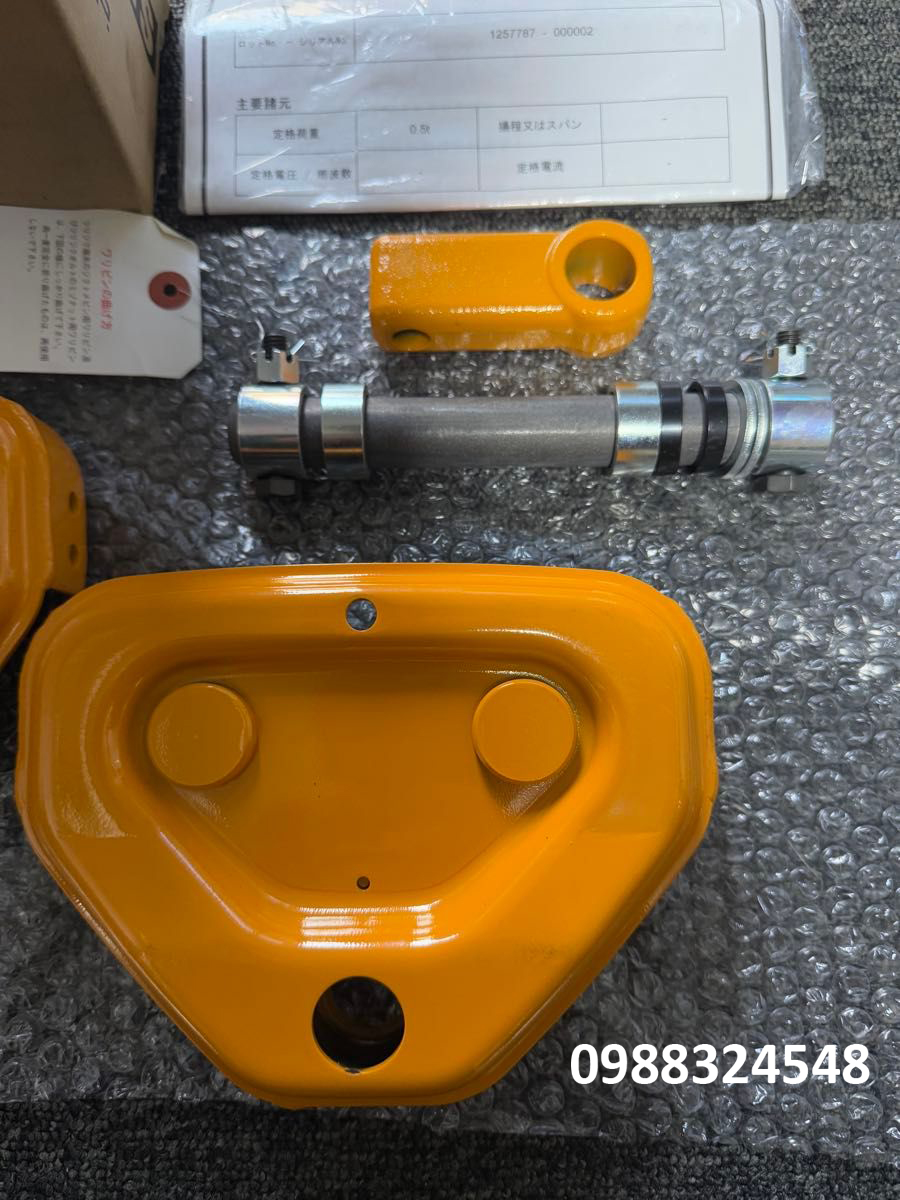

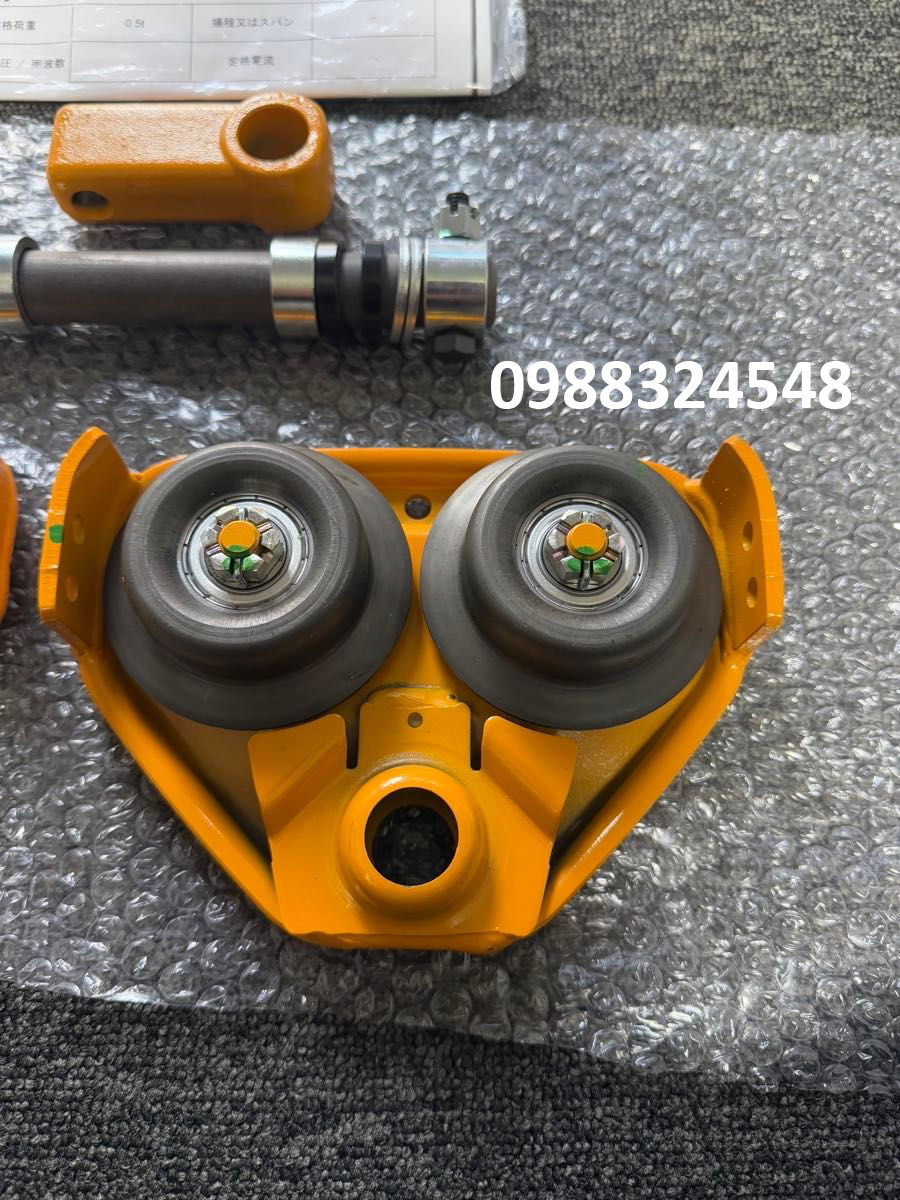

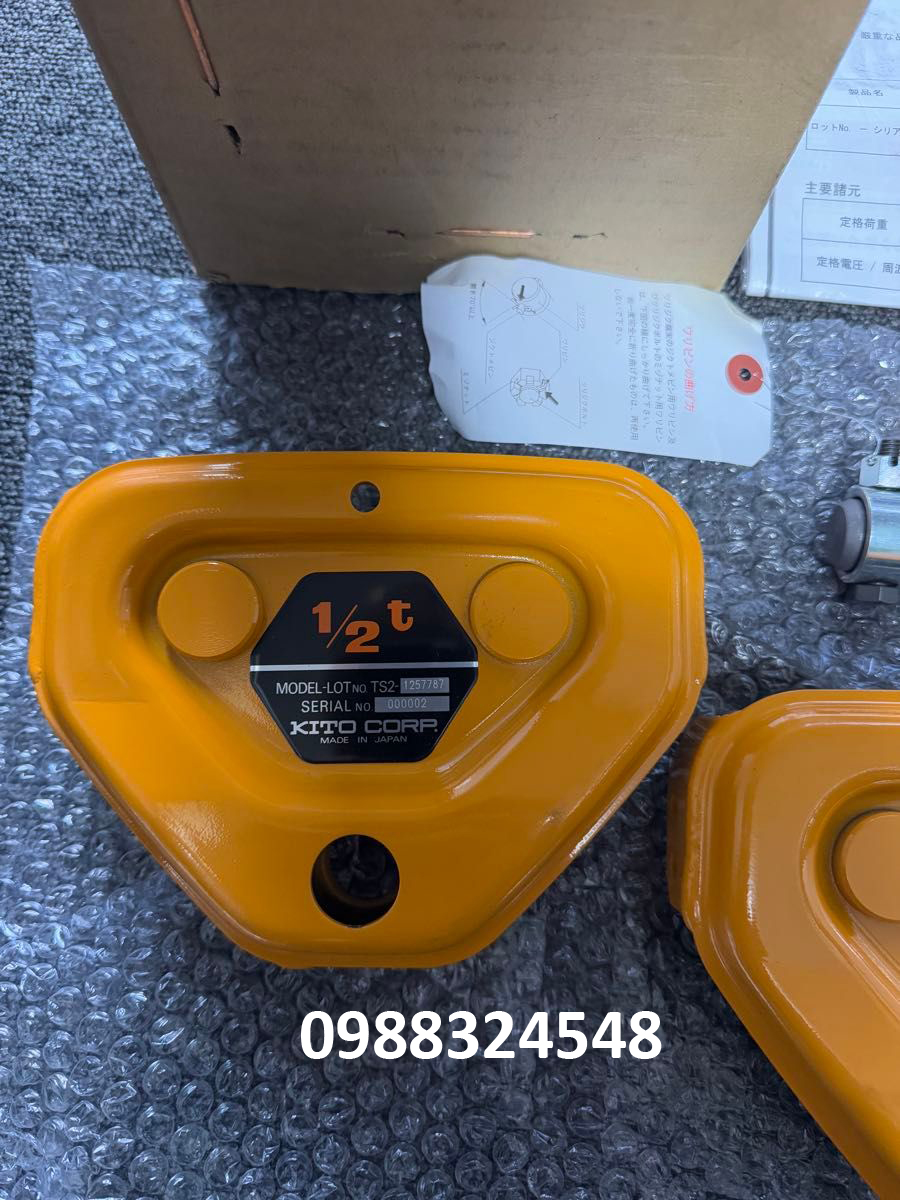

Con chạy đẩy tay Kito TSP-005 / TSP-005 Kito Plain Trolley

Con chạy đẩy tay Kito TSP-005 / TSP-005 Kito Plain Trolley

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
3.600.000 Vnđ
Hiệu lực giá bán:
  • Model: TSP-005
  • Tải trọng: 500Kgs
  • Loại không có xích kéo
  • Dùng cho cánh I rộng: 50-102mm
  • Khối lượng: 4.5 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Kito Corp

Tags:

TS Series Kito Plain / Geared Trolley

→Bumpers & Buffers
  • KITO’s TS Series Trolleys have bumpers, which hold trolley surely on the beam and guard against damage to a trolley and wheels arising from a collision with the stopper or between two trolleys. Buffers are available as option to install on the bumpers. Also, extended arms are available as option to install on the bumpers to help prevent damage to a hoist from collision between the hoists suspended from trolleys on the same beam.
    • →Accommodates a Wide Selection of Beam Widths
  • Trolleys are adjustable for various widths of both tapered and flat flanges by changing the adjustable spacers. They can also fit on beams of up to 305mm-flange width by replacing the suspension shaft, spacers and associated parts
    • →Light and Compact Models
  • KITO’s years of trolley design experience make it possible to produce these light and compact trolleys.
    • →Improved Track Wheel Durability
  • KITO’s unique press process and heat treatment ensure high track wheel strength, leading to improved reliability and performance.
    • →Specially Contoured Wheels Provide Security
  • This trolley maintains secure contact between wheels and flange surfaces even under highly variable load weights thanks to the carefully designed contours of the steel trolley wheels.
    • →Pivot Mounted Side Plates Ensure Even Weight Distribution
  • Both side plates are pivot mounted so that trolleys can move freely at adequate angles to the flange surface in spite of welded joints that might otherwise cause uneven weight distribution on the four wheels
    • →Ball Bearing Wheels Offer High Performance
  • High-grade, zero-lubrication sealed ball bearings are used on all wheels for smooth and reliable operation.

    • TS Series Kito Plain Trolley

    Model Capacity
    (t)    		 Beam Width Adjustability (mm) Min.
    Radius
    for Curve
    (mm)    		 Mass
    (Net Weight)
    (kg)
    Standard Option
    W20* W30*
    TSP005 0.5 50-102 103-203 204-305 1100 4.5
    TSP010 1 58-127 128-203 204-305 1300 8.0
    TSP015 1.5 82-153 - 154-305 1500 14
    TSP020 2
    TSP025 2.5 1700 23
    TSP030 3
    TSP050 5 100-178 128-203 179-305 2300 50

    TSP-005 Kito Plain Trolley Drawing

    TS Series Kito Plain Trolley Manual Instruction
