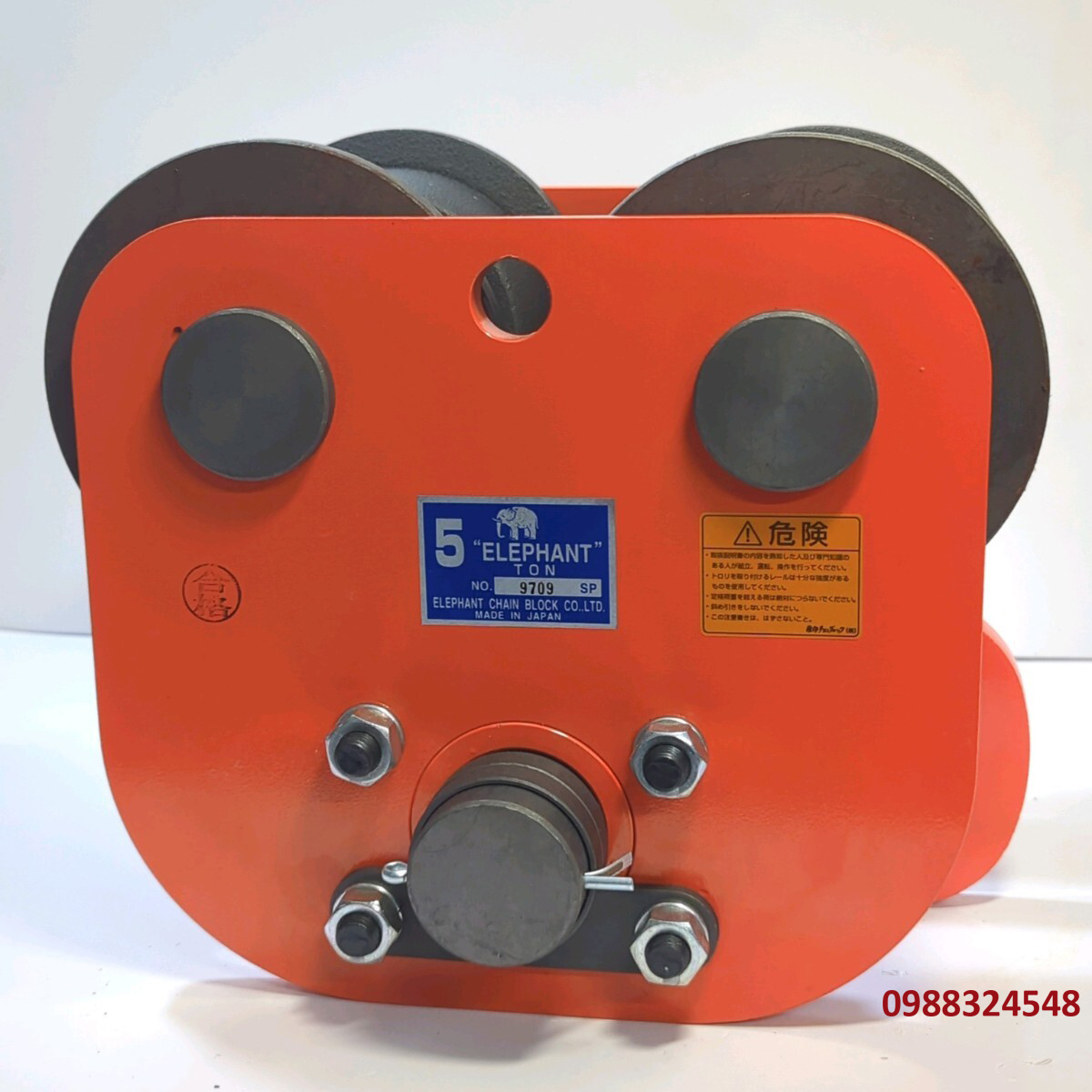

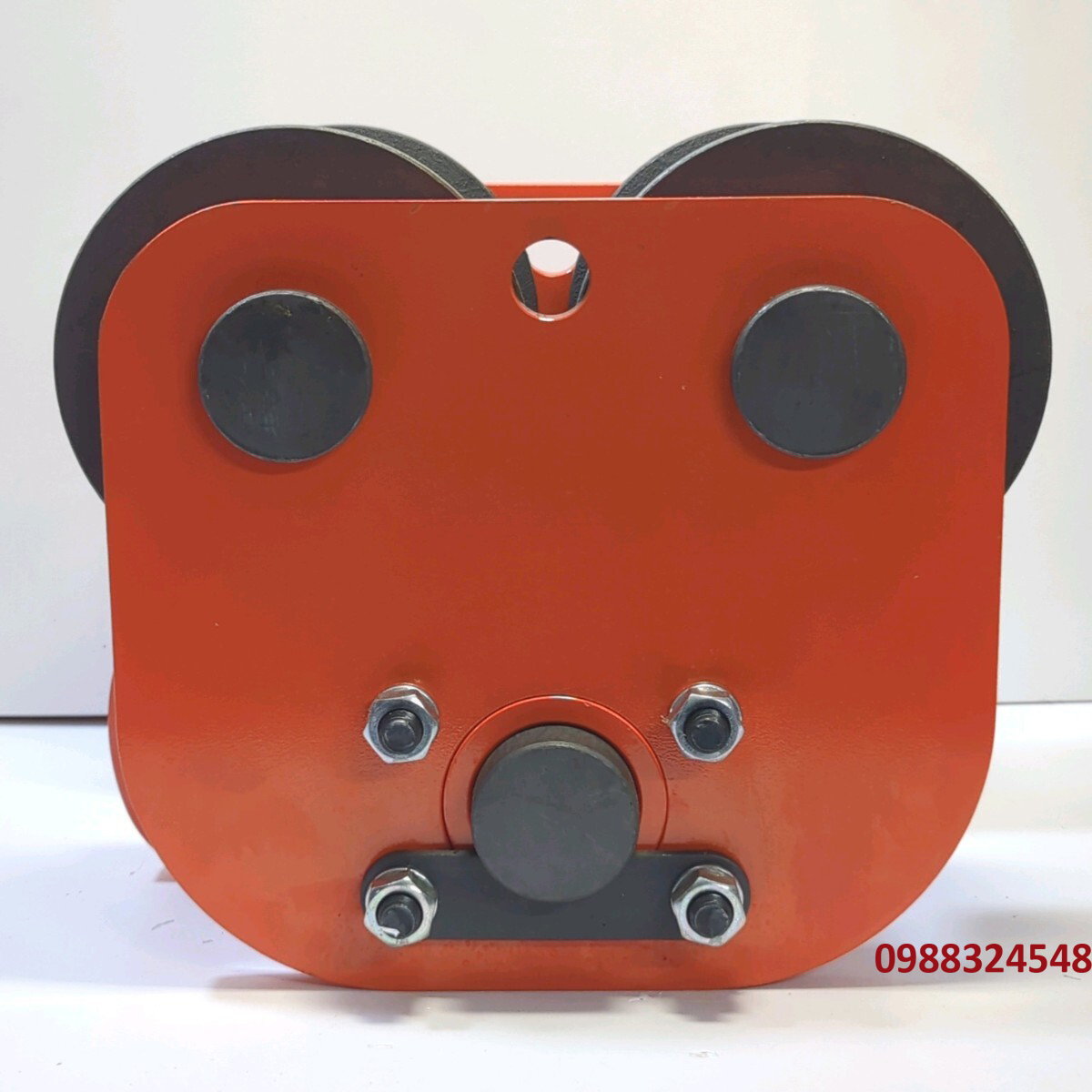

Con chạy đẩy tay 5 tấn Elephant P-5/ 5 ton P-5 Elephant Plain Trolley

Con chạy đẩy tay 5 tấn Elephant P-5/ 5 ton P-5 Elephant Plain Trolley

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: P-5
  • Tải trọng: 5 tấn
  • Dùng cho cánh I: 125-175mm
  • Khối lượng: 48.5kg
  • Nhà sản xuất: Elephant Chain Block Co., Ltd
  • Xuất xứ: Nhật bản

Tags:

Elephant Push & Geared Type Beam Trolleys

  • Trolleys are adjustable to fit various beam widths and have a solid carbon steel design. They have parkerized wheels for corrosion resistance and high quality closed bearings for smooth traversing. They also have anti-drop plates for added security. They can be connected directly to manual hoists by removing the top hook of the hoist, thus reducing headroom.
  • Adjustable to fit various beam widths
  • A solid carbon steel design
  • The wheels of the trolley fit both I-Beams and H-Beams
  • Trolley wheels are parkerized for corrosion resistance
  • High quality closed bearings provide smooth traversing
  • With Anti-Drop plates
  • Suitable for operation within a -20o C to +60o C, -4o F to 140o F temperature range

    • Con chạy đẩy tay 5 tấn Elephant P-5/ 5 ton P-5 Elephant Plain Trolley

    Model P-5
    Capacity ( ton )
    5
    I-beam width ( mm )
    125-175mm
    Min. radius of I-beam ( mm )
    2300
    Net weight ( kg )
    48.5

    Con chạy đẩy tay 5 tấn Elephant P-5/ 5 ton P-5 Elephant Plain Trolley Drawing

    Elephant Push & Geared Type Beam Trolleys Manual Instruction
