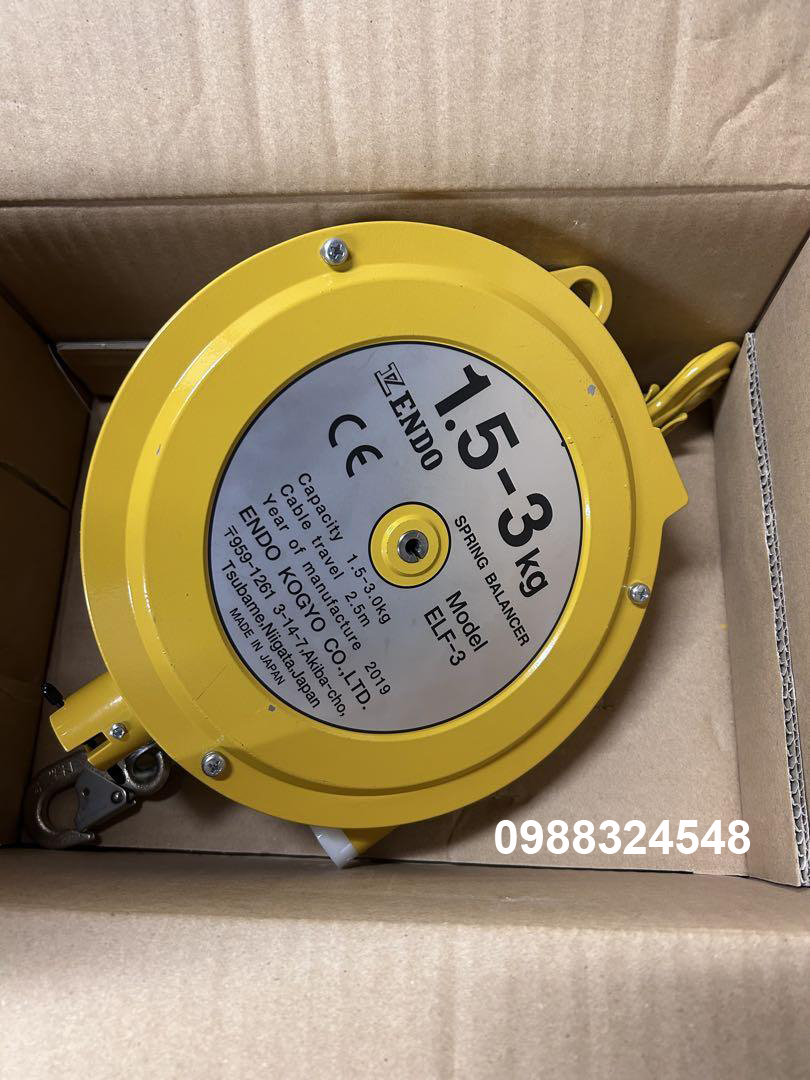

Pa lăng cân bằng Endo ELF-3 / ELF-3 Endo Spring Balancer

Pa lăng cân bằng Endo ELF-3 / ELF-3 Endo Spring Balancer

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: ELF-3
  • Tải trọng: 1.5-3kg
  • Cáp dài: 2.5 mét
  • Khối lượng: 4.6 Kgs
  • Nhà sản xuất: Endo Kogyo
  • Xuất xứ: Nhật bản

Tags:

ELF Series Endo Spring Balancer

  • Its capacity is 1.5kg-70kg.
  • For suspending electrical devices, jigs, and materials for processed goods.
  • Centering operations.
  • For cable suspended robots.
  • Balancing device for various kinds of equipment.

    • Pa lăng cân bằng Endo ELF-3 / ELF-3 Endo Spring Balancer Drawing


    ELF Series Endo Spring Balancer

    Model Capacity
    (kg)    		 Stroke
    (m)    		 Wire rope
    diameter
    (mm)    		 Mass
    (kg)    		 How to
    adjust
    spring
    tension
    ELF-3 1.5～3.0 2.5 3.0 4.6 Worm
    ELF-5 3.0～5.0 2.5 3.0 4.8
    ELF-9 5.0～9.0 2.5 3.0 5.4
    ELF-15 9.0～15.0 2.5 4.76 10.0
    ELF-22 15.0～22.0 2.5 4.76 10.2
    ELF-30 22.0～30.0 2.5 4.76 11.0
    ELF-40 30.0～40.0 2.5 4.76 14.0
    ELF-50 40.0～50.0 2.5 4.76 14.5
    ELF-60 50.0～60.0 2.5 4.76 17.1
    ELF-70 60.0～70.0 2.5 4.76 18.0

    ELF3_ELF-9 Endo Spring Balancer Instruction Manual
