Xích tải KBC/ KBC Load chain

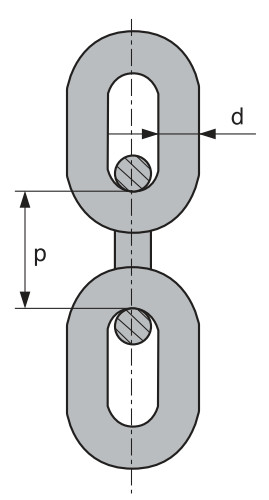

1. Xích tải KBC KP-1030 GR80

Chain Diameter (mm)	Inside Link Length (mm)	Outside Width (mm)	Approx. Links per (mm)	Approx. Mass / m (kg)	S.W.L (T)
6	18	22	55.6	0.8	1.2
8	24	28	41.6	1.4	2
10	30	37	33.3	2.23	3.2
13	39	48	25.6	3.7	5.4
16	48	57	20.8	5.71	8.2
20	60	70	16.7	8.92	12.8
22	66	78	15.2	10.8	15.5
25.5	78	96	12.8	15.04	21.6
32	96	118	10.4	22.8	32.8
36	108	133	-	35.6	41.5
40	120	148	-	45.04	51.2

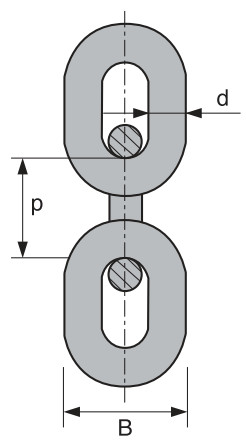

2. Xích tải KBC KP-1040 GR80

Diameter d (mm)	Inside Width p (mm)	Outside Width B (mm)	S.W.L (T) ISO	P.T.L (T)	B.T.L (T)	Weight (kg/m)
4	12	14	0.5	1	2	0.58
5	17	18.8	1	2	4	0.66
6	18	22.2	1	2	4	0.8
6.3	19	20.8	1	2	4	0.8
7.1	20.2	23.2	1.6	3.3	6.5	1.1
7.1	21	23.6	1.6	3.1	6.3	1.1
7.9	23	25.9	2	4.2	8.2	1.4
8	24	26.6	2	4	8	1.4
9.5	28.6	31.3	3.1	6.3	12	1.98
10	30	33.2	3.1	6.3	12.5	2.18
11.1	33.3	36.4	4	8	16	2.66
11.2	34	37.2	4	8	16	2.73

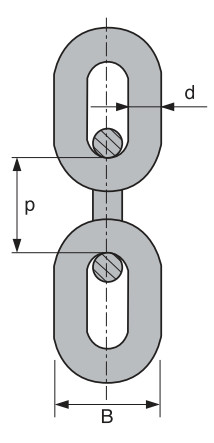

3. Xích tải KBC KP-1050 GR100

Diameter d (mm)	Inside Width p (mm)	Outside Width B (mm)	S.W.L (T) ISO	P.T.L (T)	B.T.L (T)	Weight (kg/m)
6.3	19	20.9	1.6	3.2	6.3	0.87
7.1	21	23.6	2	4	8	1.1
7.9	23	25.9	2	4.2	8	1.4
8	24	26.6	2.5	5	10	1.4
9	27	29.9	3.2	6.3	12.5	1.8
9.5	28.6	31.3	3.1	6.3	12	1.98
10	30	33.2	4	8	16	2.18
11.1	33.3	36.4	4	8	16	2.66

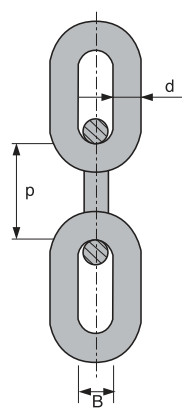

4. Xích tải KBC KP-1060

Chain Size d (mm)	Minimum Breaking Force (T)	Proof Force (T)	Link Dimensions (mm)		Links Per Meter	Weight (kg/m)
			p (Pitch)	B (inside Width)
11	12.7	10	43	14	23.3	2.5
14	24.5	19.6	50	17	20	4
16	26.5	21.6	55	18.5	18.2	5
18	40.2	32.3	64	21	15.6	6.6
19	44.1	35.3	64.5	22	15.6	7.5
22	59.8	48	86	26	11.6	9.5

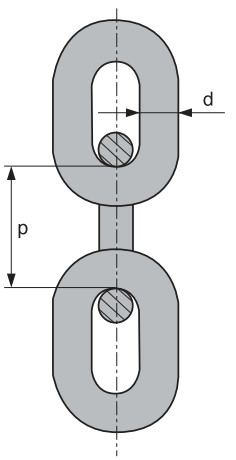

5. Xích tải KBC KP-1070/ GR95 Short Link Chain

Chain Size d (mm)	Inside Link Dimensions (mm)		Approx mass / m (kg)	Minimum Breaking Load (T)
	Nominal Pitch	Min. Width
10	30	14	2.2	15.3
13	39	18.2	3.8	25.8
16	48	22.4	5.7	39
20	60	28	8.9	55
22	66	30.8	10.8	73

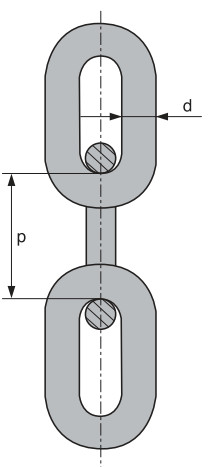

6. Xích tải KBC KP-1080

Chain Size d (mm)	Inside Link Dimensions (mm)		Approx mass / m (kg)	Minimum Breaking Load (T)
	Nominal Pitch	Min. Width
13	52	19.5	3.34	20
16	64	24	5.06	30
19	76	28.5	7.14	45
22	88	32	8.8	60
