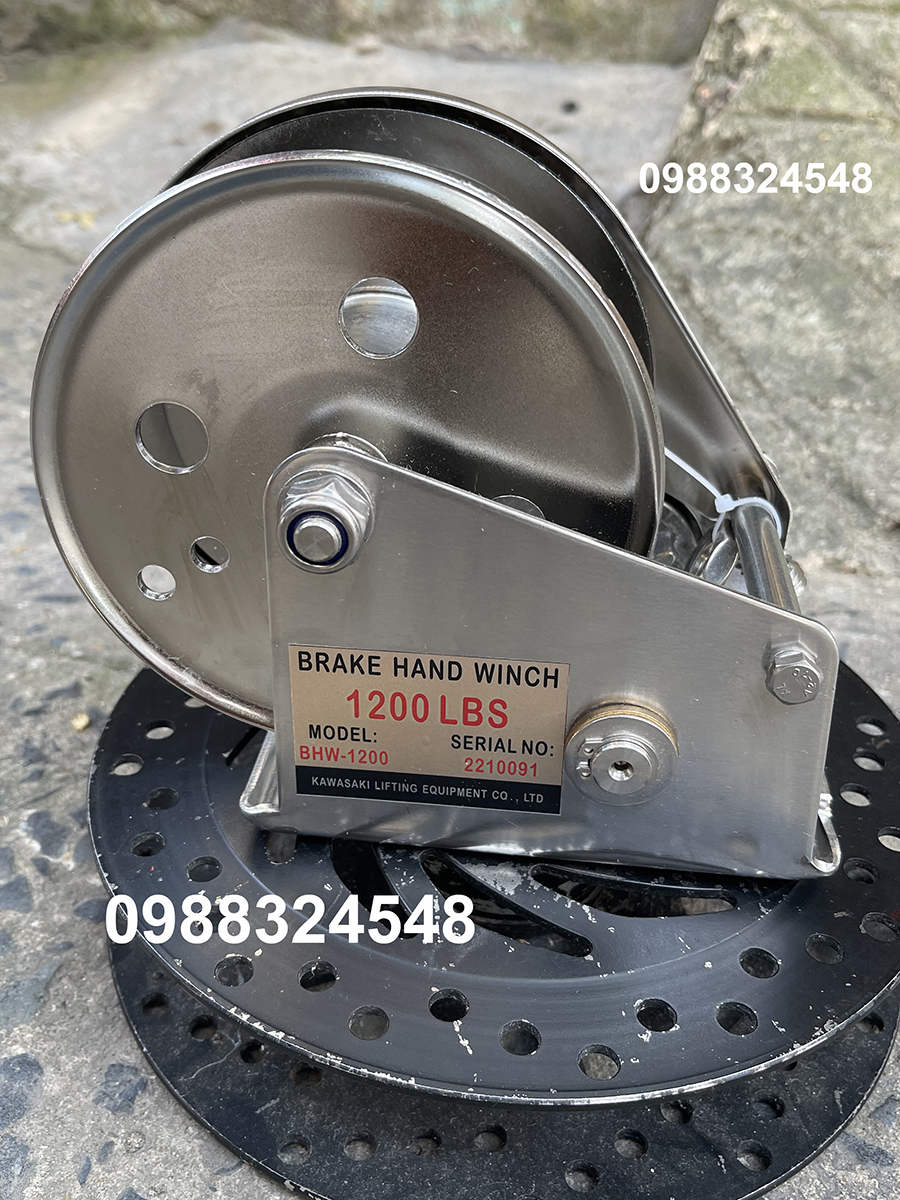

Tời quay tay inox 304 Kawasaki BHW-1200 / BHW-1200 Kawasaki Stainless Steel Hand Winch

Tời quay tay inox 304 Kawasaki BHW-1200 / BHW-1200 Kawasaki Stainless Steel Hand Winch

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: BHW-1200
  • Tải trọng nâng: 270 Kg
  • Tải trọng kéo ngang: 540 Kg
  • Tang cuốn có thể chứa cáp 6mm x 8 mét cáp
  • Tỉ số truyền: 1/4.2
  • Trọng lượng ( thân + tay cầm ): 3.7Kg
  • Nhà sản xuất: Kawasaki Lifting Equipment Co., Ltd

Tags:

BHW series Kawasaki Hand Winch

  • Adopting lever handle,either may shake operation along the whole circle,or may swing operation at any angle in the any position of circle. It has unique advantage in the narrow space
  • The gear box and braking mechanism are designed with sealed structure to avoid foreign matter entering the gear box and braking mechanism, and affect the normal operation
  • The braking material is made of environment material and is moresuitable for the special area
  • The new brake pawl is designed for more better ensuring the stabilityof braking
  • The handle is adopted free structure to adjust the length of handle freely
  • The ratchet is big enough to contain more wire rope and more suitable for the operation in deep well and drawing of long distance

    • Tời quay tay inox 1200lbs Kawasaki BHW-1200
    Model BHW-1200 BHW-1800 BHW-2600
    Rated capacity (lbs) 1200 1800 2600
    Test load (kN) 8 12 17.5
    Transmission ratio 4.2:1 5:1 10:1
    Hand operated strength(N) 180 190 190

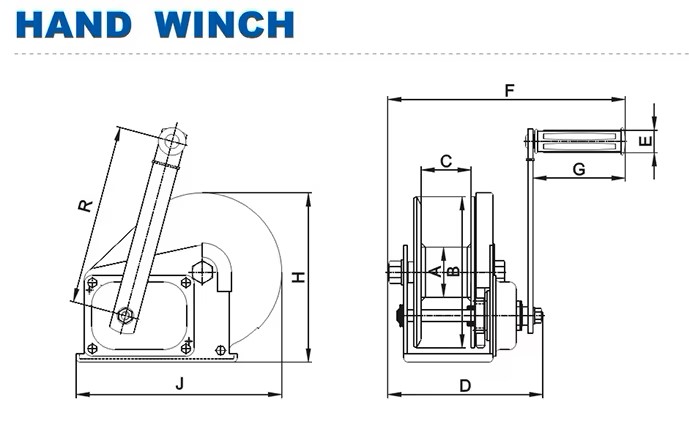

    Dimensions(mm) A Φ48 Φ60 Φ75
    B Φ134 Φ180 Φ180
    C 51 60 63
    D 157 190 209
    E Φ27 Φ27 Φ27
    F 273 288 307
    G 110 110 110
    H 156 203 216
    J 184 246 294
    R 208 319 319
    Net weight (no wire rope)(kg) 3.7 8.1 10.3

    Tời quay tay inox 304 Kawasaki BHW-1200 / BHW-1200 Kawasaki Stainless Steel Hand Winch

    Model BHW-1200
    Capacity lifting 270kg/pulling 540kg
    Wire Rope Diameter φ6mm
    Drum Capacity φ6mm x 8m
    Gear Ratio 4.2 : 1
    Weight (Winch + Handle) 3.7kg

    Kawasaki Hand Winch Instruction Manual
