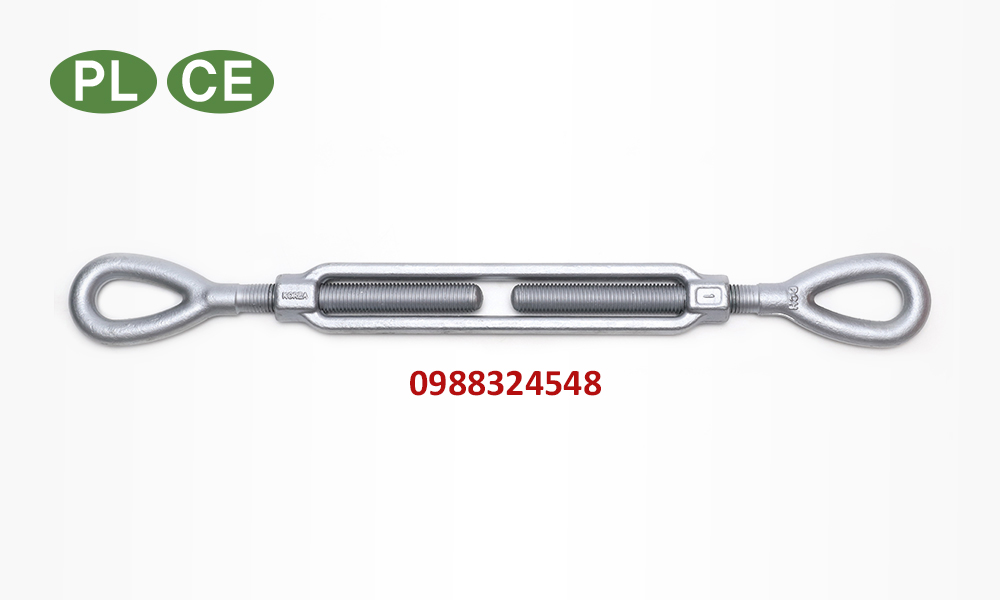

Tăng đơ 2 đầu mắt DCH TBEE/ TBEE TURNBUCKLE EYE & EYE

Tăng đơ 2 đầu mắt DCH TBEE/ TBEE TURNBUCKLE EYE & EYE

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Tăng đơ 2 đầu mắt DCH TBEE/ TBEE TURNBUCKLE EYE & EYE

  • Material : Forged carbon steel
    Test Load
    Proof Load = SWL(WLL) × 2.5, Breaking Load = SWL(WLL) × 5
    Surface : Hot Dip Galvanized
    Reference : American society of testing materials, ASTM F 1145
    The Others
    Available certificate of NDT(M/T,U/T), 3rd Party Inspection test report.
    Available Lock Nut, Special design and Materials as your requirement.
    • Tăng đơ 2 đầu mắt DCH TBEE/ TBEE TURNBUCKLE EYE & EYE
    Tăng đơ 2 đầu mắt DCH TBEE/ TBEE TURNBUCKLE EYE & EYE

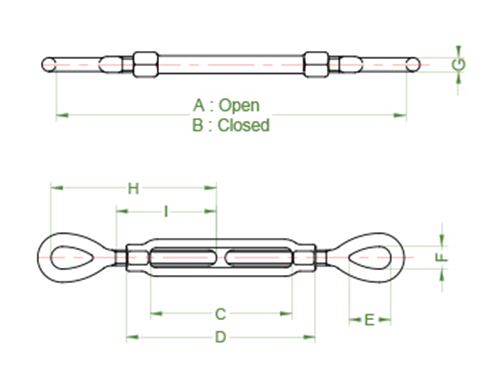

    Product code Size
    (inch)    		 Swl(wll)
    (ton)    		 Dimension(mm) Weight
    (kg)
    A B C D E F G H I
    TBEE-001 3/8x6 0.5 428 286 152 180 28 13 9 143 97 0.3
    TBEE-002 1/2x6 1 468 328 152 188 36 18 11 164 103 0.5
    TBEE-003 1/2x9 1 621 404 229 265 36 18 11 202 141 0.9
    TBEE-004 1/2x12 1 773 480 305 341 36 18 11 240 179 1.1
    TBEE-005 5/8x6 1.6 502 366 152 198 44 22 12.5 183 109 1.3
    TBEE-006 5/8x9 1.6 653 440 229 275 44 22 12.5 220 147 1.5
    TBEE-007 5/8x12 1.6 807 518 305 351 44 22 12.5 259 185 1.6
    TBEE-008 3/4x6 2.4 545 412 152 208 53 25 16 206 116 1.8
    TBEE-009 3/4x9 2.4 698 488 229 285 53 25 16 244 154 2.2
    TBEE-010 3/4x12 2.4 850 564 305 361 53 25 16 282 192 2.5
    TBEE-011 3/4x18 2.4 1154 716 457 513 53 25 16 358 268 3.3
    TBEE-012 7/8x12 3.3 885 602 305 371 60 32 19 301 198 3.3
    TBEE-013 1x24 4.5 1549 964 610 686 75 36 22 482 357 4.9
    TBEE-014 1x6 4.5 633 506 152 228 75 36 22 253 128 4
    TBEE-015 1x12 4.5 938 658 305 381 75 36 22 329 204 5.3
    TBEE-016 1x18 4.5 1242 810 457 533 75 36 22 405 280 6.3
    TBEE-017 1x24 4.5 1549 964 610 686 75 36 22 482 357 8
    TBEE-018 1-1/4
    x12    		 6.9 995 722 305 385 90 46 28 361 212 8.6
    TBEE-019 1-1/4
    x18    		 6.9 1307 882 457 537 90 46 28 441 288 10.1
    TBEE-020 1-1/4
    x24    		 6.9 1604 1026 610 690 90 46 28 513 364 11.8
    TBEE-021 1-1/2
    x12    		 9.7 1043 776 305 401 103 54 32 388 222 12.6
    TBEE-022 1-1/2
    x18    		 9.7 1347 928 457 553 103 54 32 464 298 14.8
    TBEE-023 1-1/2
    x24    		 9.7 1652 1080 610 706 103 54 32 540 374 17
    TBEE-024 1-3/4
    x18    		 12.7 1415 1002 458 570 117 60 38 501 310 22.2
    TBEE-025 1-3/4
    x24    		 12.7 1719 1154 610 722 117 60 38 577 386 25.7
    TBEE-026 2x24 16.8 1870 1310 610 738 146 68 45 655 405 39.6
    TBEE-027 2-1/2
    x24    		 27.2 1935 1388 610 790 165 79 51 694 440 72.8
    TBEE-028 2-3/4
    x24    		 34 1988 1448 610 790 178 83 57 724 440 84.1
