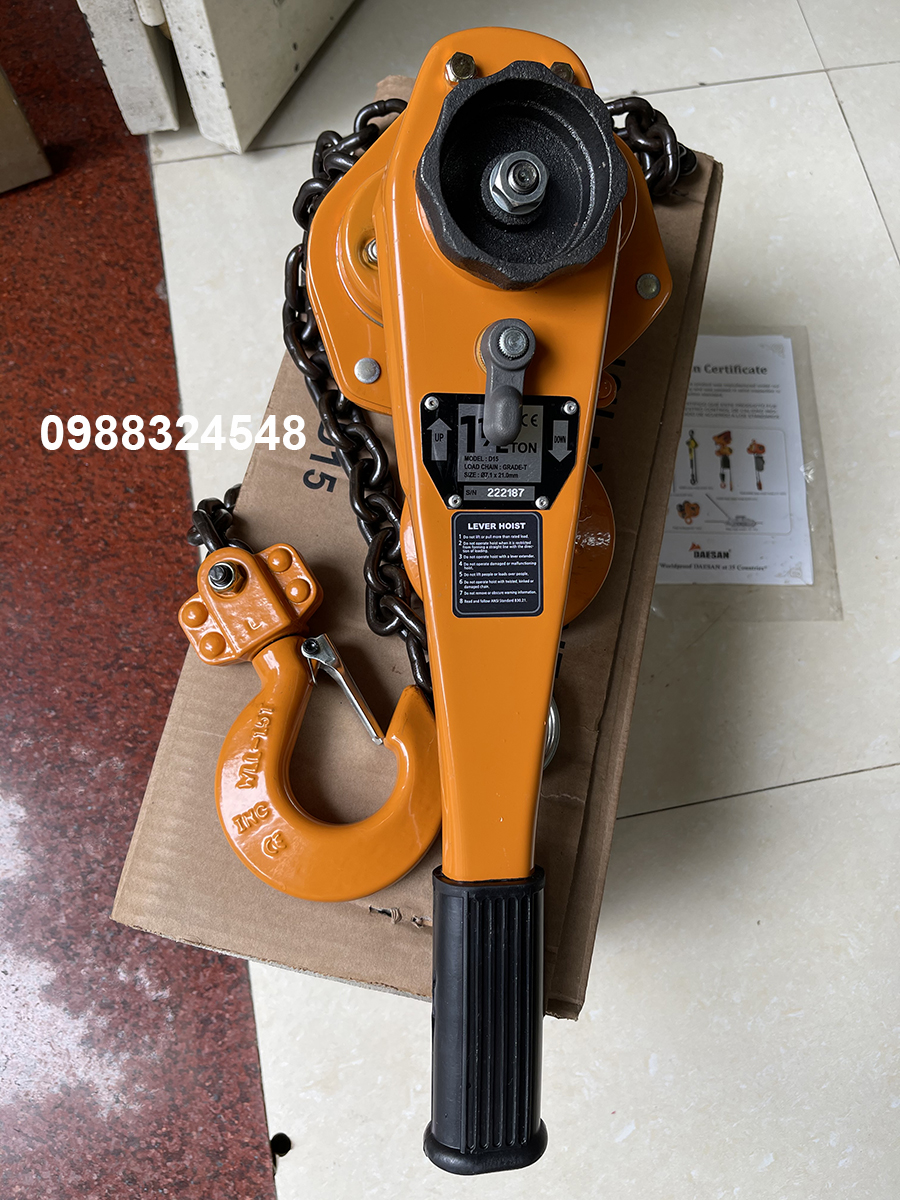

Pa lăng lắc tay 1.5 tấn Daesan D15 / D15 Daesan Lever Hoist

Pa lăng lắc tay 1.5 tấn Daesan D15 / D15 Daesan Lever Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: liên hệ
Hiệu lực giá bán:
  • Model: D15
  • Tải trọng: 1.5 tấn
  • Chiều cao nâng: 1.5 mét
  • Xuất xứ: Hàn Quốc
  • Nhà sản xuất: Daesan Inotec

Tags:

D1 Series Daesan Lever Chain Hoist

  • DAESAN light weight, portable lever hoist increases a worker's efficiency in pulling, lifting, lowering moving and skidding objects in industrial maintenance construction and utility company applications. Minimal effort is required to move tons. Excellent for stretching cable and fencing positioning machinery and building components.
  • 360 degree rotating hook
  • Powerful gear brake system
  • Simple switching with one-touch ratchet function
  • High-strength load chain with special heat treatment
  • Simple switching with one-touch ratchet function

    • *Various tonnages available
  • From 0.8 ton low tonnage to 12 ton high tonnage, users can select according to needs.
    • *Operation
  • Two levers and a knob control the operation of DAESAN lever hoist. The lifting "Lock" lever can only be engaged when the hoist chain is slack(not under load) The grip ring is then pulled to engage the load sheave. Choose "Up" or "Down" position on the handle to raise or lower the load.
    • *Hooks
  • Alll hooks are drop forged, heat treated steel with spring type latches.
    • *Gears
  • Six tooth pinion gear and four pocket load sheave makes operation easy. Gears are permanently lubricated
    • *Load Chain
  • Electric welded G80 alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
    • *Mechanical load brake
  • Brake can hold a full capacity load stationary in any position. Load is not transferred back to handle
    • *Rubber Grip Handle
  • Rubber Grip Handle for non-slip operation.

    • D1 Series Daesan Lever Chain Hoist

    Model Capacity
    (t)    		 Standard Lift
    (m)    		 Hand-pull to
    Lift Full Load
    [kg]    		 Load Chain
    Dia ×
    Chain Fall
    (mm)    		 Mass
    (Net Weight)*1
    (kg)
    D08 0.8 1.5 16 6.3x19.1×1 fall 7
    D15 1.5 1.5 18 7.1x21×1 fall 10
    D20 2 1.5 24 7.1x21×1 fall 10.5
    D30 3 1.5 33 9.0x27×1 fall 17
    D60 6 1.5 35 9.0x27x2 fall 28
    D90 9 1.5 37 9.0x27×3 fall 56
    D120 12 1.5 39 9.0x27x4 fall 73

    D15 Daesan Lever Chain Hoist Drawing

    D1 Series Daesan Lever Chain Hoist Manual Instruction


    D15 Daesan Lever Chain Hoist Spare Part
