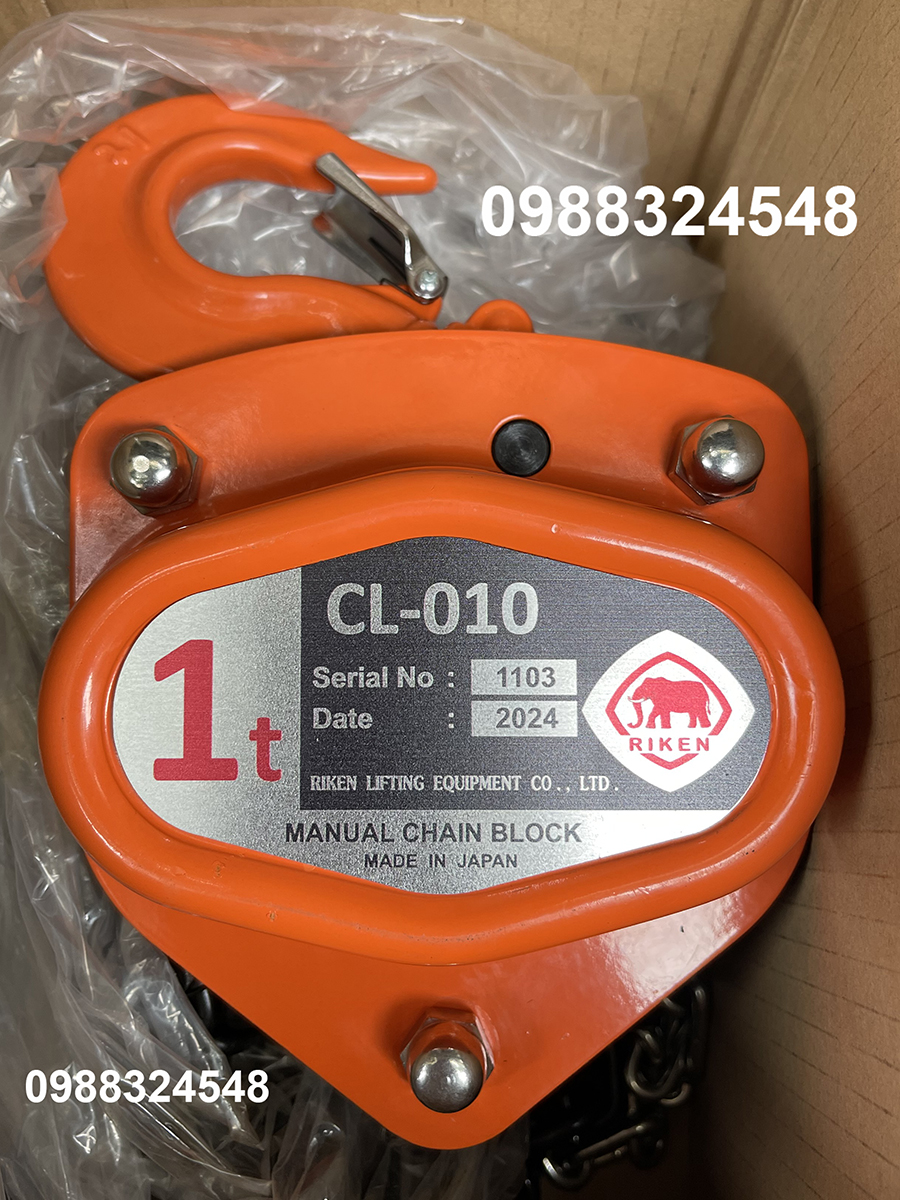

Pa lăng kéo tay Riken CL010/ CL010 Riken Manual Chain Hoist

Pa lăng kéo tay Riken CL010/ CL010 Riken Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

CL Series Manual Chain Hoist

  • The CL series is built with premium grade components for long life in the toughest industrial and heavy construction applications. CL Series are small and light, yet extremely durable, with industry-leading quality.
  • Lighter, smaller, and more efficient, these hoists are invaluable for lifting applications.
  • A high-class load chain with a breaking strength of 1000 N/㎟ (100 kgf/㎟) is key to reliable and safe operation.
  • The dry-type braking mechanism provides excellent performance.
  • Shock-resistant gear case and hand wheel cover
  • Double-pawl spring mechanism for extra reliability

    • CL Series Riken Manual Chain Hoist

    Model Capacity
    (ton)    		 Standard
    Lift
    (m)    		 Hand Chain
    Folded
    Length
    (m)    		 Load Chain
    Dia. ×
    Chain Fall
    (mm)）    		 Mass
    (Net Weight)
    (kg)
    CL005 0.5 2.5 2.5 6.0×1 10
    CL010 1 6.0×1 12
    CL015 1.5 8.0×1 19
    CL020 2 3 3 8.0×1 20
    CL025 3 8.0×2 27
    CL030 3 8.0×2 27
    CL050 5 3 3.5 10.0×2 45.5
    CL075 7.5 3.5 4.0 10.0×4 83
    CL100 10 10.0×4 83
    Cl150 15 3.5 4.5 10.0×8 193
    CL200 20 10.0×8 193
    CL300 30 10.0×12 268

    CL010 Manual Chain Hoist - Drawing

    CL Series Riken Manual Instruction
