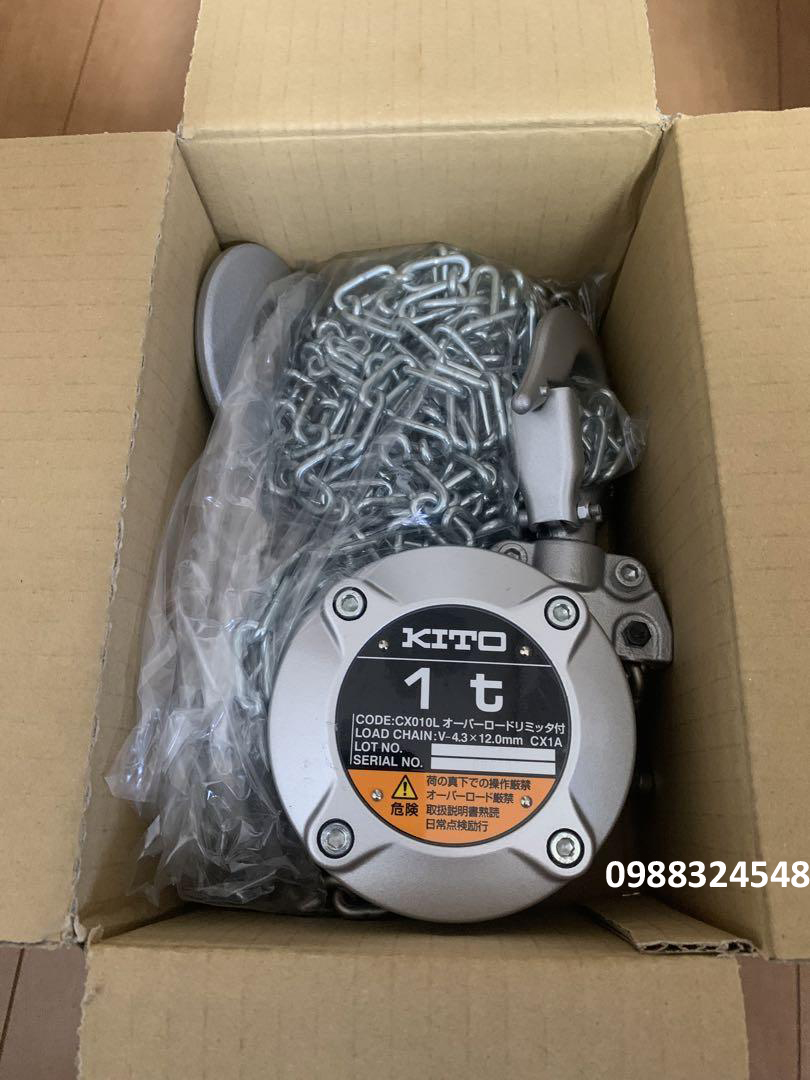

Pa lăng kéo tay Kito 1 tấn CX010L / CX010L Kito Manual Chain Hoist

Pa lăng kéo tay Kito 1 tấn CX010L / CX010L Kito Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: CX010L
  • Tải trọng: 1 tấn
  • Chiều cao nâng: 2.5 mét
  • Xích tải: 4.3mm x 2 nhánh
  • Khối lượng: 7.3kg
  • Nhà sản xuất: Kito Corp
  • Xuất xứ: Nhật bản

Tags:

CX Series Manual Chain Hoist

  • The CX series is suitable for work in tight quarters or wherever you need to lift a light load. These ultra-compact, easy-to-operate hand chain hoists an feature advanced safety mechanism for a unique combination of extreme portability, operation and safety.
  • Compact, lightweight and simple design
  • Integral aluminum body
  • Easily portable anywhere
  • Easy and smooth operation with minimal hand-pull force

    • CX Series Kito Manual Chain Hoist

    Model Capacity
    (kg)    		 Standard Lift
    (m)    		 Standard
    Length of
    Hand Chain
    (Folded)
    (m)    		 Load Chain
    Dia. ×
    Chain Fall
    (mm)    		 Mass
    (Net Weight)*
    (kg)
    CX003 250 2.5 2 3.2 x 1 2.4
    CX005 500 2.5 2.5 4.3 x 1 4.5
    CX010L 1000 2.5 2.5 4.3 x 2 7.3

    CX010L Manual Chain Hoist - Drawing

    CX Series Kito Manual Instruction


    CX Series Kito Part List
