Pa lăng kéo tay 1.5 tấn Elephant C21-1.5 / C21-1.5 Elephant Manual Chain Hoist

Pa lăng kéo tay 1.5 tấn Elephant C21-1.5 / C21-1.5 Elephant Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

C21 Series Elephant Manual Chain Hoist

  • The C-21 Manual Chain Hoist is a lightweight and durable solution for lifting and moving heavy loads. It is a hand-operated hoist that can be attached to hooks, lugs, trolleys, or beam clamps, and can handle loads up to 5 tons. It has a galvanized load chain, a heavy duty frame, and long lasting friction discs. It also features safety mechanisms such as anti-drop plates, anti-tilt devices, and overload protection. The C-21 Manual Chain Hoist is suitable for various industries including construction, manufacturing, mining, and transportation.
  • 0.5 ton ~ 5 ton
  • Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
  • Zinc plated hand chain
  • Heavy duty frame
  • Lightweight lifting capacity ratio, a 1 ton unit with 10’ lift weighs 20% less than other Japanese hoists
  • Long lasting friction discs
  • Extremely wear resistant
  • Load chain, hooks, and braking parts have a safety factor of 4+ times. 0.5t ~ 1t units have a safety factor of 5+ times.
  • Durable powder coat finish
  • Suitable for operation within a -20o to +130o C, -4 to +266o F temperature range

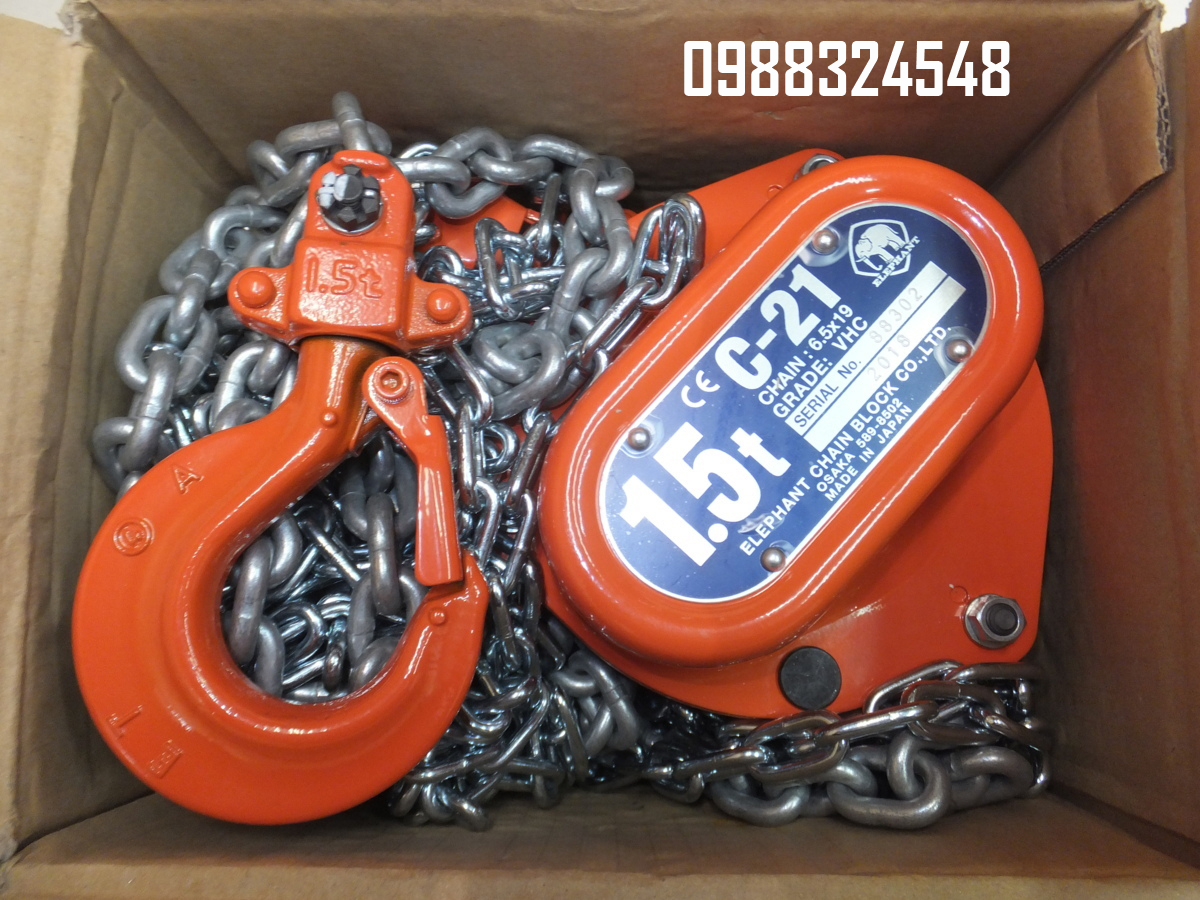

    • C21-1.5 Elephant Manual Chain Hoist

    Model C21-1.5
    Capacity ( ton )
    1.5
    Standard lift ( m )
    2.5
    Headroom ( mm )
    340
    Hand effort to lift full working load ( kg )
    33
    Load chain
    6.5mm x 19mm x 1 fall
    Grade of chain
    V
    Net weight ( kg )
    11.7

    C21 Series Elephant Chain Hoist Manual Instruction

    C21 Series Elephant Manual Chain Hoist Breakdown
