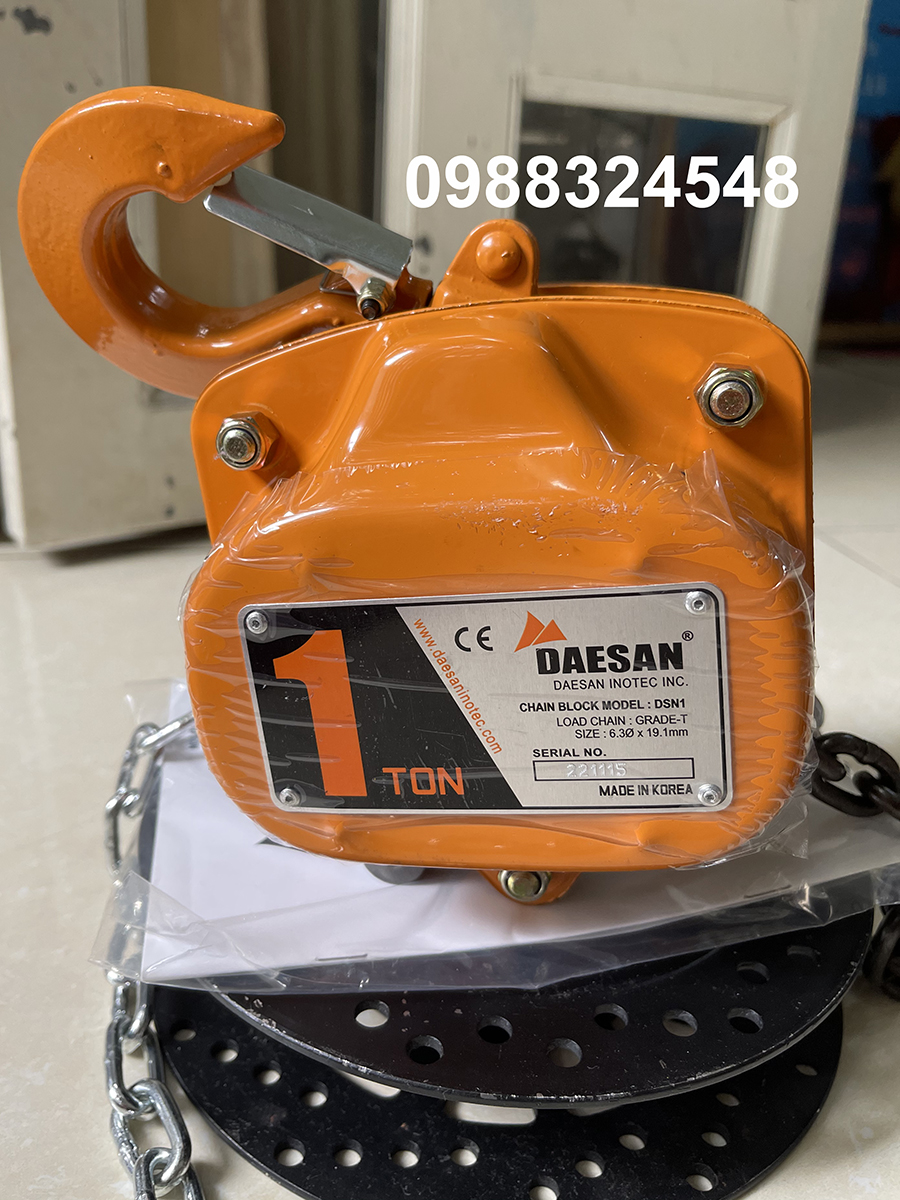

Pa lăng kéo tay Daesan DSN1 / DSN1 Daesan Manual Chain Hoist

Pa lăng kéo tay Daesan DSN1 / DSN1 Daesan Manual Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: DSN1
  • Tải trọng: 1 tấn
  • Chiều cao nâng: 2.5 mét
  • Nhà sản xuất: Daesan

Tags:

DSN Series Daesan Manual Chain Hoist

  • DAESAN has been manufacturing chain blocks for over 40 years and has the highest market share in Korea when it comes to chain blocks. DAESAN manufactures from 1/2ton upto 40ton capacity chain block.
  • Removable wheel and brake covers
  • Mechanical load brake
  • 360 degree rotating drop-forged steel hooks
  • Chain guide for smooth operation
  • Precise-fitting load sheaves
  • Strong and wear resistant load chain

    • DSN Series Daesan Manual Chain Hoist

    Model Capacity
    (ton)    		 Standard
    Lift
    (m)    		 Hand Chain(mm) Load Chain (mm) Mass
    (Net Weight)
    (kg)
    DSN0.5 0.5 2.5 5.0x22.8 6.3x19.1×1fall 11
    DSN1 1 12
    DSN1.5 1.5 7.1x21.0×1fall 14
    DSN2 2 3 7.9x23.0×1fall 22
    DSN3 3 7.1x21.0×2fall 23
    DSN5 5 9.0×27.0x2fall 41
    DSN7.5 7.5 3.5 9.0×27.0×3fall 63
    DSN10 10 9.0×27.0×4fall 86
    DSN15 15 9.0×27.0×6fall 131.5
    DSN20 20 9.0×27.0×8fall 209
    DSN25 25 9.0×27.0×10fall 393
    DSN30 30 9.0×27.0×12fall 536
    DSN40 40 9.0×27.0×16fall 696

    DSN-1 Manual Chain Hoist - Drawing


    DSN-1 Manual Chain Hoist - Spare Part

    DSN Series Daesan Chain Hoist Manual Instruction
