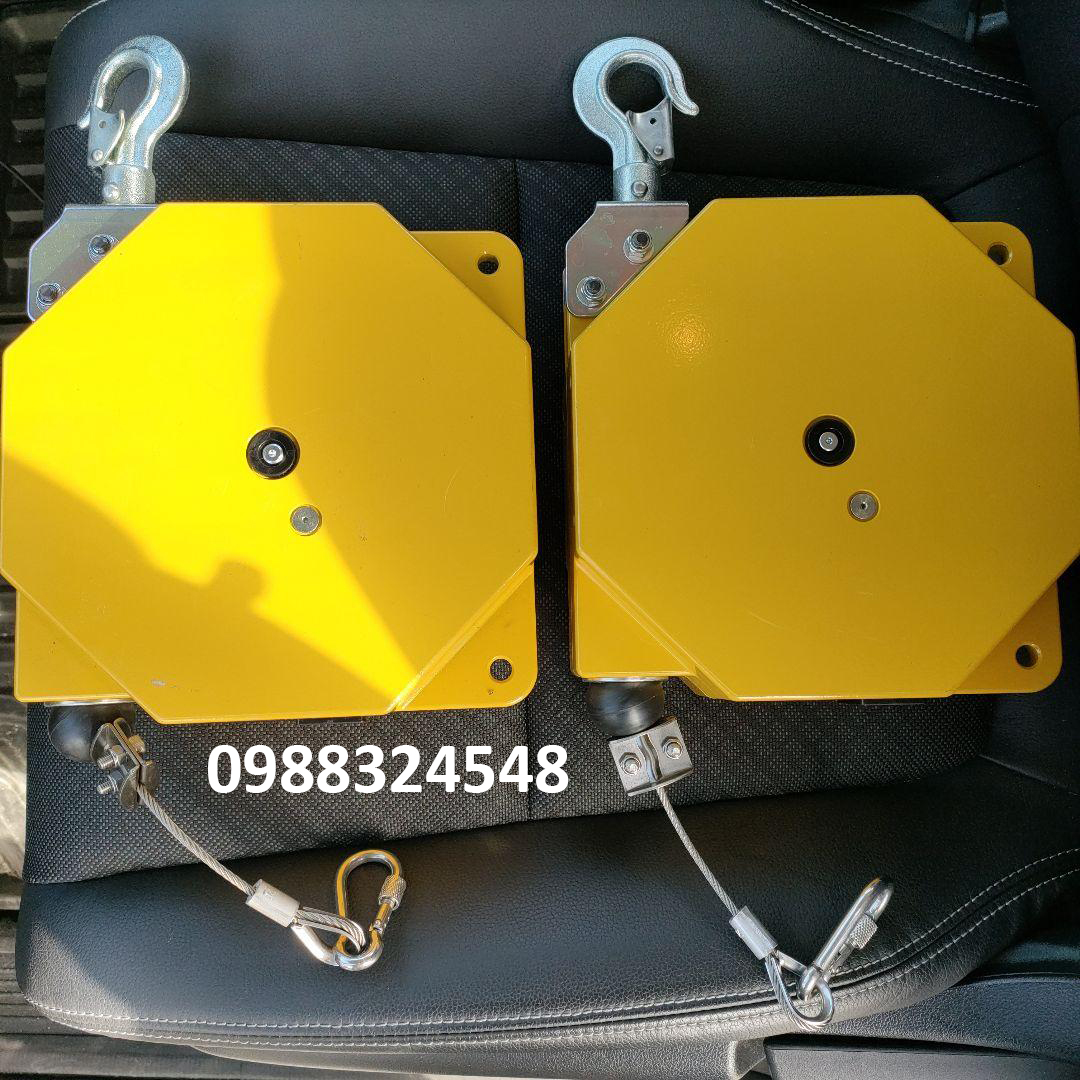

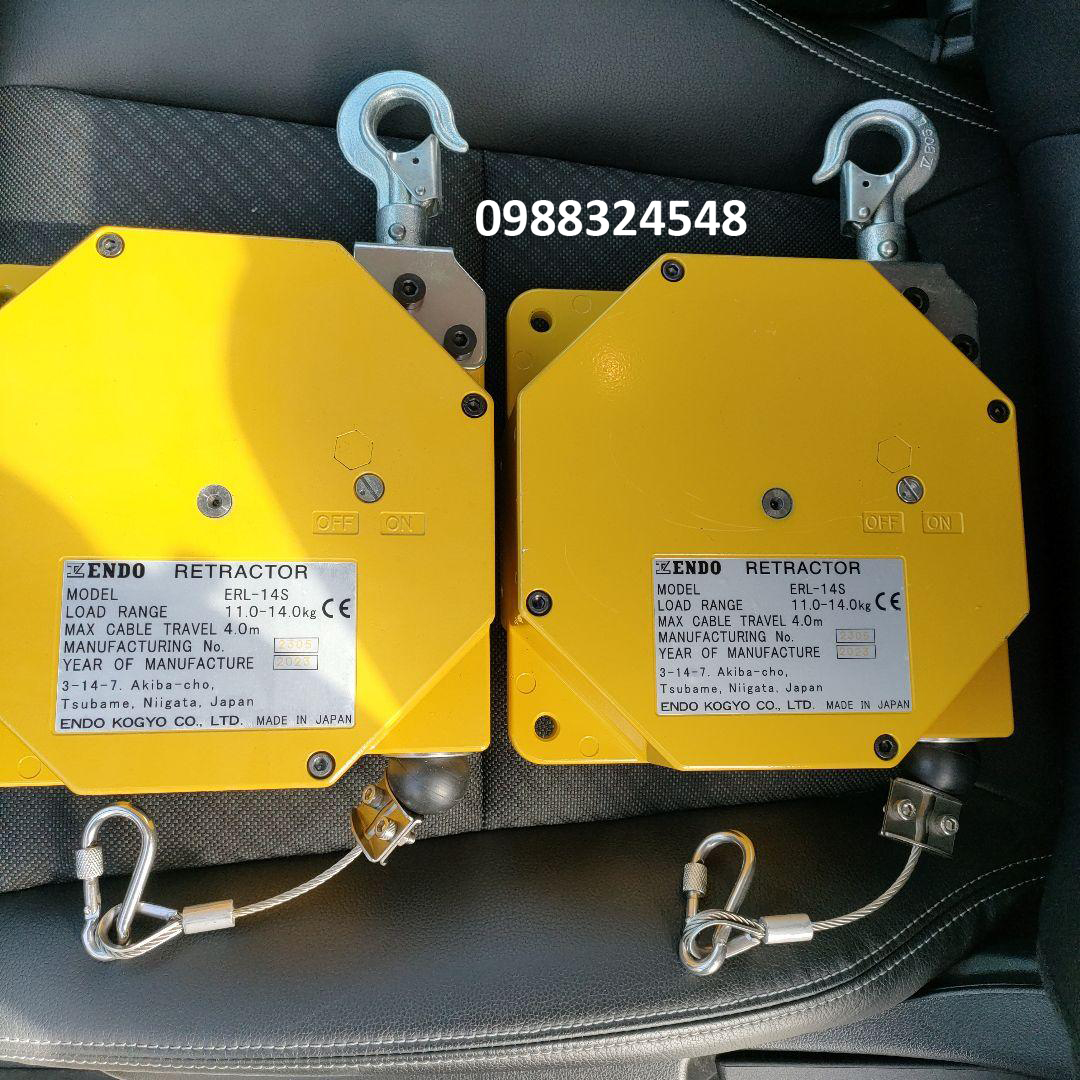

Pa lăng cân bằng Endo ERL-14S / ERL-14S Endo Retractor

Pa lăng cân bằng Endo ERL-14S / ERL-14S Endo Retractor

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: ERL-14S
  • Tải trọng: 11-14kg
  • Cáp dài: 4 mét
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Endo Kogyo

Tags:

ERL Series Endo retractor

  • The retractor is a spring balancer whose tension of a spring is changed with an extension of a wire rope.
  • Maximum wire rope travel is relative to the setting of the spring tension.
  • The ratchet stopper device can be turned on or off according to your requirement.
  • The top hook can be detached without disassembling the retractor body.

    • ERL-14S Endo retractor Drawing


    ERL Series Endo retractor

    Model Fall prevention
    device     		Capacity
    (kg)    		 Wire rope
    travel
    (m)※    		 Mass
    (kg)
    ERL-3 - 1.5～3.0 4.0 3.8
    ERL-6 - 3.0～6.0 4.0 4.4
    ERL-8 - 5.0～8.0 4.0 4.8
    ERL-11 - 8.0～11 4.0 5.1
    ERL-14 - 11～14 4.0 5.1
    ERL-6S - 3.0～6.0 4.0 4.4
    ERL-8S - 5.0～8.0 4.0 4.8
    ERL-11S - 8.0～11 4.0 5.1
    ERL-14S - 11～14 4.0 5.1

    ERL Series Endo Retractor Instruction Manual
