Ma ní inox 2.2 tấn Asano AK11312 / AK11312 Asano Stainless Steel Shackle

Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

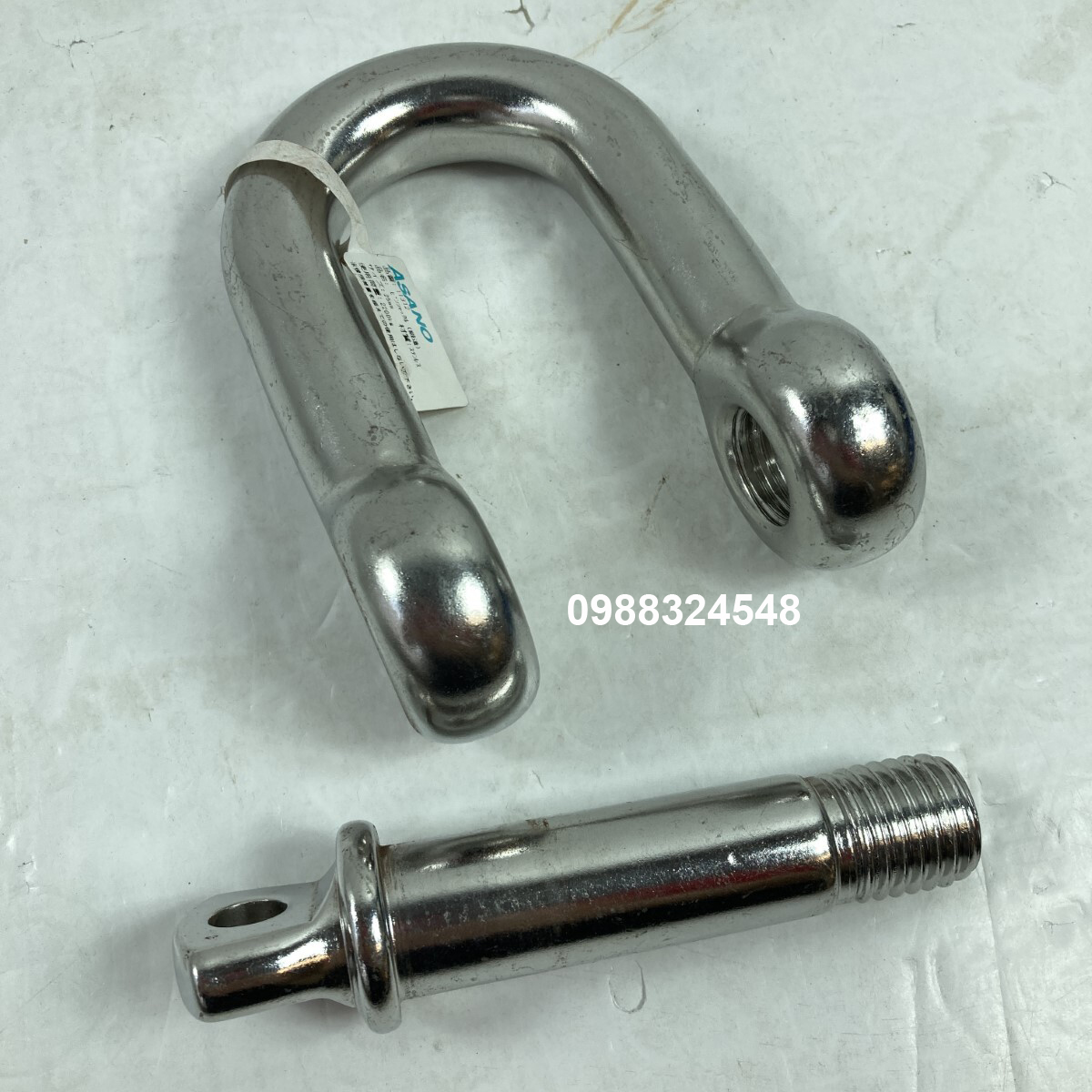

Ma ní inox 2.2 tấn Asano AK11312 / AK11312 Asano Stainless Steel Shackle

  • Vật liệu: inox 304
  • Ma ní inox 2.2 tấn Asano AK11312 Ma ní inox 2.2 tấn Asano AK11312 Ma ní inox 2.2 tấn Asano AK11312
    Model Size  d
    (mm)
    L
    (mm)
    L1
    (mm)
    B
    (mm)
    B1
    (mm)
    D
    (mm)
    Unit
    Weight(g)
    Work
    Load
    Limit(kg)
    AK11300 4 4 23 15 16 8 8 8 40
    AK11301 5 5 30 20 20 10 10 15 70
    AK11302 6 6 38 26 24 12 12 25 140
    AK11304 8 8 50 34 33 17 17 60 220
    AK11305 9 9 54 36 36 18 18 80 270
    AK11306 10 10 58 38 38 18 20 105 320
    AK11307 12 12 72 48 48 24 24 195 400
    AK11308 14 14 90 62 56 28 28 325 600
    AK11309 16 16 96 64 64 32 32 445 900
    AK11310 19 19 115 77 76 38 38 775 1100
    AK11311 22 22 130 86 88 44 44 1195 1600
    AK11312 25 25 145 95.5 100 50 50 1710 2200
    AK11313 28 28 162 107 112 56 54 2560 3400
    AK11314 32 32 197 133 130 66 64 3750 4300

    Ma ní inox 2.2 tấn Asano AK11312 / AK11312 Asano Stainless Steel Shackle Specifications

    Ma ní inox 2.2 tấn Asano AK11312 / AK11312 Asano Stainless Steel Shackle Instruction Manual
