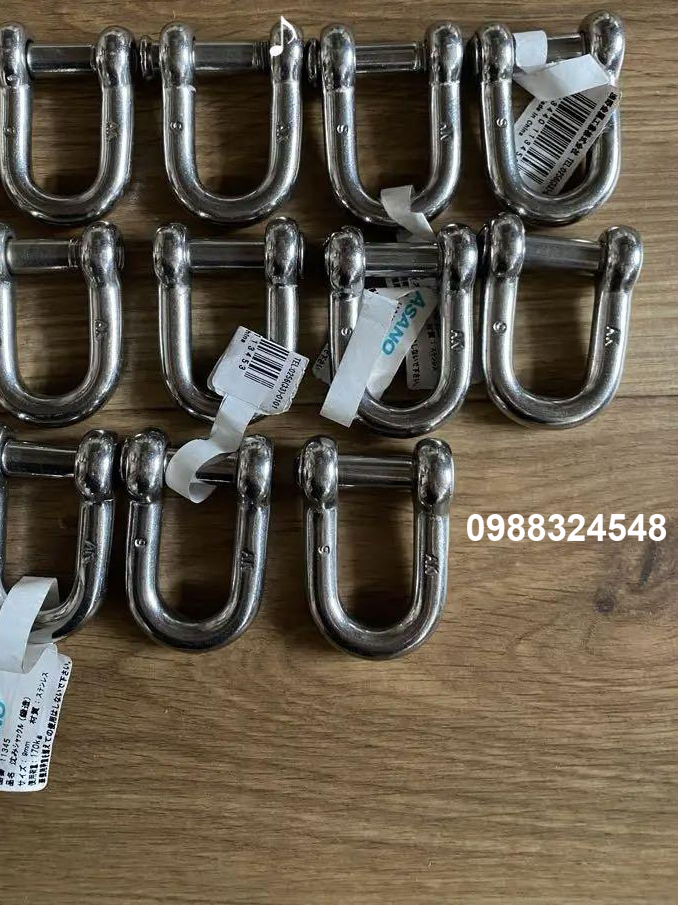

Ma ní inox 170kg Asano AK11345 / AK11345 Asano Stainless Steel Shackle

Ma ní inox 170kg Asano AK11345 / AK11345 Asano Stainless Steel Shackle

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Ma ní inox 170kg Asano AK11345 / AK11345 Asano Stainless Steel Shackle

  • Vật liệu:SUS304
    • Ma ní inox 2.2 tấn Asano AK11312 Ma ní inox 2.2 tấn Asano AK11312 Ma ní inox 2.2 tấn Asano AK11312
    Model d
    (mm)    		 L
    (mm)    		 L1
    (mm)    		 B
    (mm)    		 B1
    (mm)    		 D
    (mm)    		 Unit
    Weight(g)    		 Work
    Load
    Limit(kg)
    AK11340 4 23 15 16 8 8 8 40
    AK11341 5 30 20 20 10 10 14 70
    AK11342 6 38 26 24 12 12 24 90
    AK11344 8 50 34 33 17 17 59 140
    AK11345 9 54 36 36 18 18 76 170
    AK11346 10 58 38 38 18 20 100 200
    AK11347 12 72 48 48 24 24 186 280
    AK11348 14 90 62 56 28 28 310 450
    AK11349 16 92 60 64 32 32 431 600
    AK11350 19 115 77 76 38 38 715 720
    AK11351 22 130 86 88 44 44 1103 1040
    AK11352 25 145 95.5 100 50 50 1640 1430
    AK11353 28 162 107 112 56 54 2250 2210
    AK11354 32 197 133 130 66 64 3460 2800
