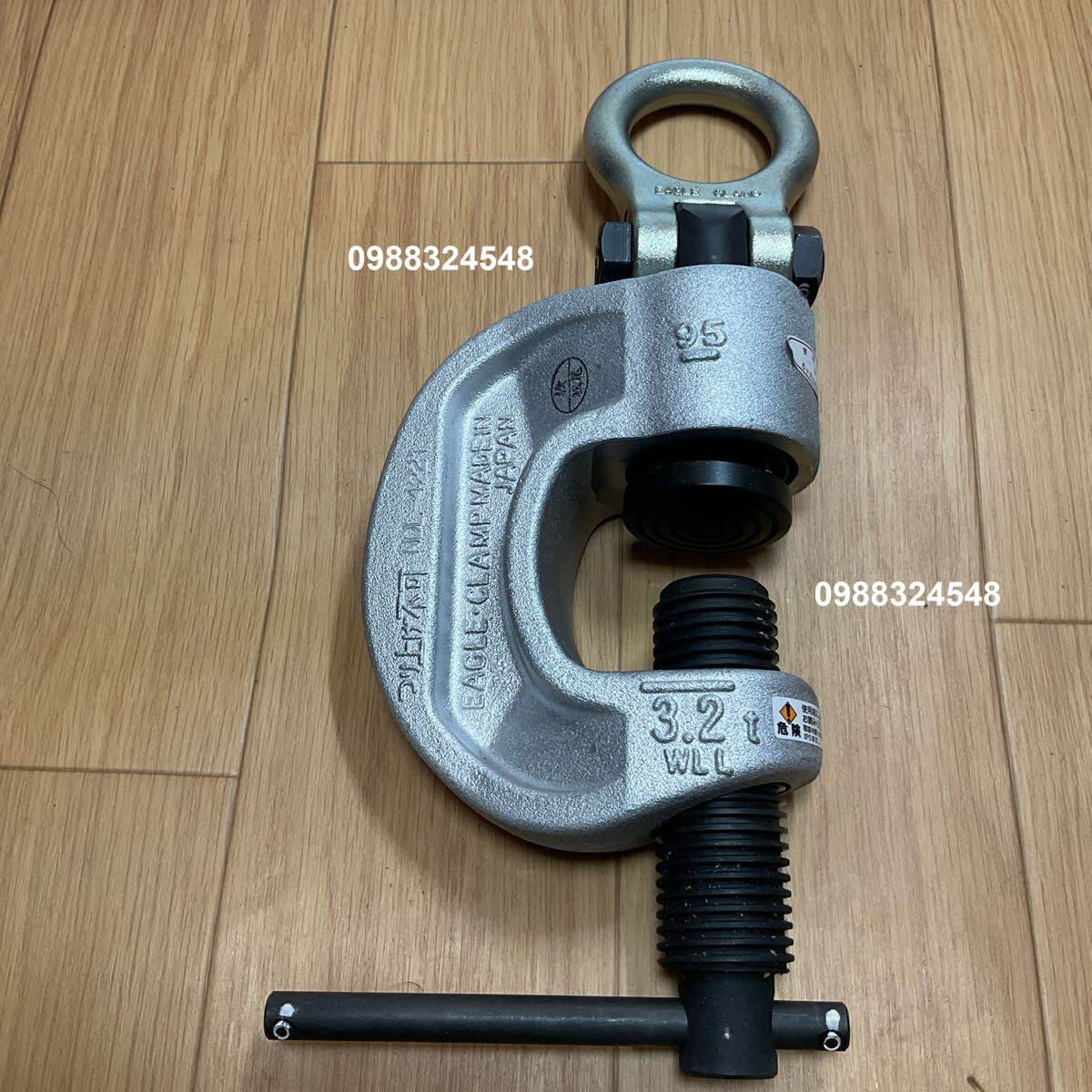

Kẹp vít 3.2 tấn Eagle SRN-3.2 / SRN-3.2 Eagle Screw Cam Clamp

Kẹp vít 3.2 tấn Eagle SRN-3.2 / SRN-3.2 Eagle Screw Cam Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: SRN-3.2
  • Tải trọng: 3.2 tấn
  • Độ mở miệng: 1-40mm
  • Khối lượng: 6.3 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Eagle Clamp Co., Ltd

Tags:

SRN Series Eagle Screw Cam Clamp

  • Universal clamp for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel to curved and spherical shaped steels.
  • This omni-directional clamp can lift, hang, turn over, and pull steel structures.
  • This clamp is equipped with a screw cam(spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation.
  • When the clamp is under a load, the cam will tilt in accordance with the weight of the load. This tilting of the cam will increase the clamping force and cause the teeth of the cam and pad to bite harder into the work piece.

    • SRN-3.2 Eagle Screw Cam Clamp

    Model SRN-3.2
    Jaw Opening 1 - 40 mm
    Capacity 3.2 tấn
    Net weight 6.3 kg

    SRN Series Eagle Screw Cam Clamp Instruction Manual
