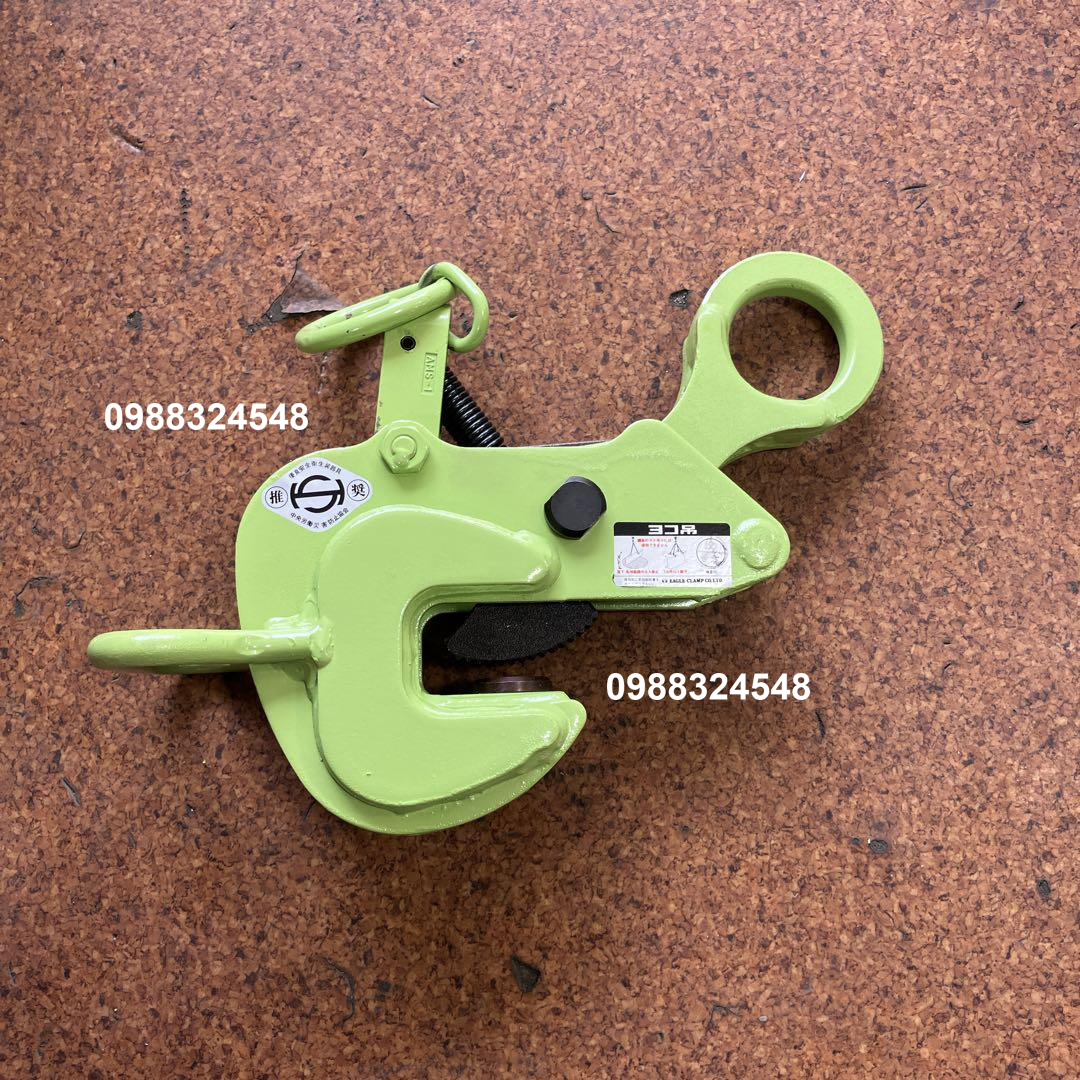

Kẹp tôn ngang 1 tấn Eagle AMS-1 / AMS-1 Eagle Horizontal Clamp

Kẹp tôn ngang 1 tấn Eagle AMS-1 / AMS-1 Eagle Horizontal Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
00 Days00 Hrs00 Mins00 Secs
  • Model: AMS-1
  • Tải trọng: 200Kgs - 1 tấn
  • Độ mở miệng: 3-25mm
  • Khối lượng: 5.3 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Eagle Clamp Co., Ltd

Tags:

AMS Series Eagle Horizontal Clamp

  • Clamp specifically designed for the lateral (horizontal) lifting of structured steel (“H”, “I”, “T” and “L” shaped steels, etc.) and steel plates.
  • The universal shackle and arc-shaped pad will provide a stable lateral (horizontal) clamping force.
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force even under no-loaded condition.
  • The clamping force increases in proportion to the weight of the load.
  • The main body and parts are made from die-forged special alloy steels which are optimally tempered for maximum strength and durability.

    • AMS-1 Eagle Horizontal Clamp

    Model AMS-1
    Jaw Opening 3 - 25 mm
    Capacity 200Kgs - 1 Ton
    Net weight 5.3 kg

    AMS Series Eagle Horizontal Clamp Instruction Manual
