Kẹp tôn đứng 500kg Eagle E-500 / E-500 Eagle Vertical Clamp

Kẹp tôn đứng 500kg Eagle E-500 / E-500 Eagle Vertical Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: E-500
  • Tải trọng: 100Kgs-500Kgs
  • Độ mở miệng: 3-20mm
  • Khối lượng: 2.7 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Eagle Clamp Co., Ltd

Tags:

E Series Eagle Vertical Clamp

  • Lightweight clamp primarily designed for the vertical lifting of steel plates.
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition
  • The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled.
  • The clamping force increases in proportion to the weight of the load.
  • High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

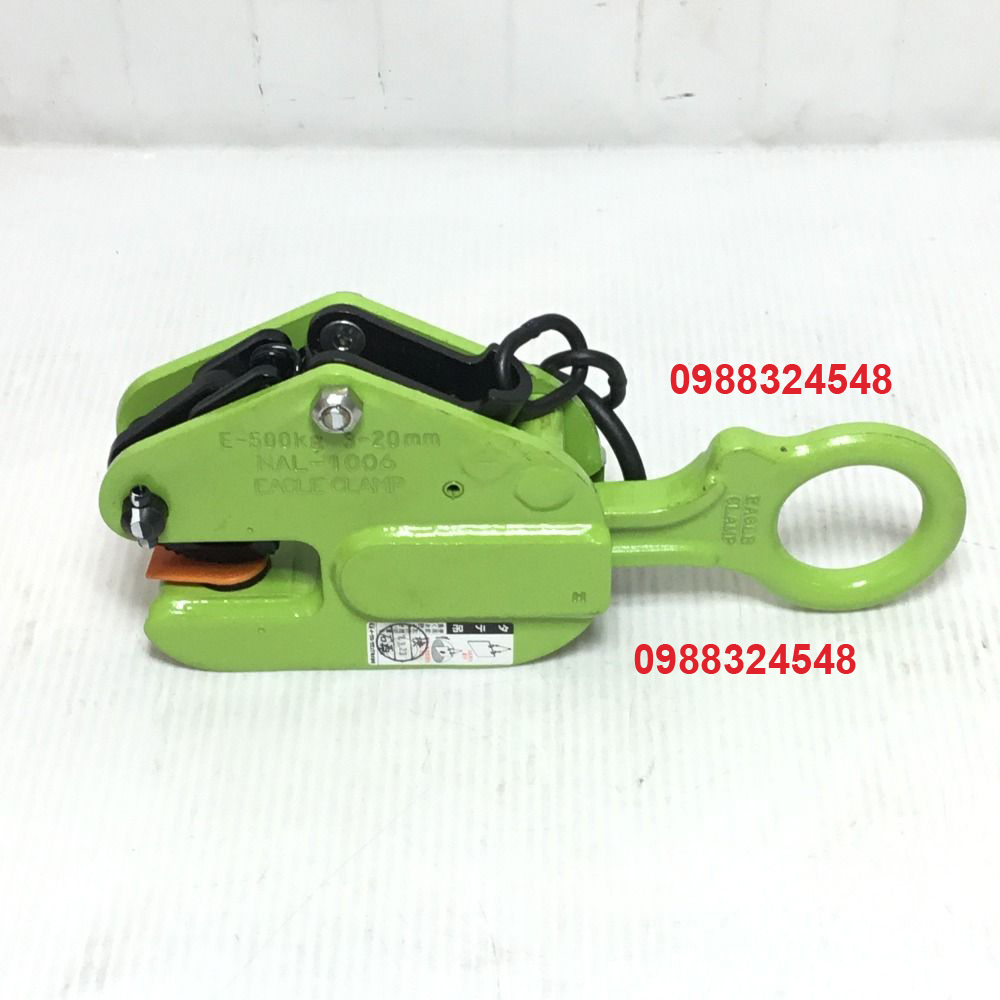

    • E-500 Eagle Vertical Clamp

    Model E-500
    Jaw Opening 3 - 20 mm
    Capacity 100Kgs - 500kgs
    Net weight 2.7 kg

    E Series Eagle Vertical Clamp Instruction Manual
