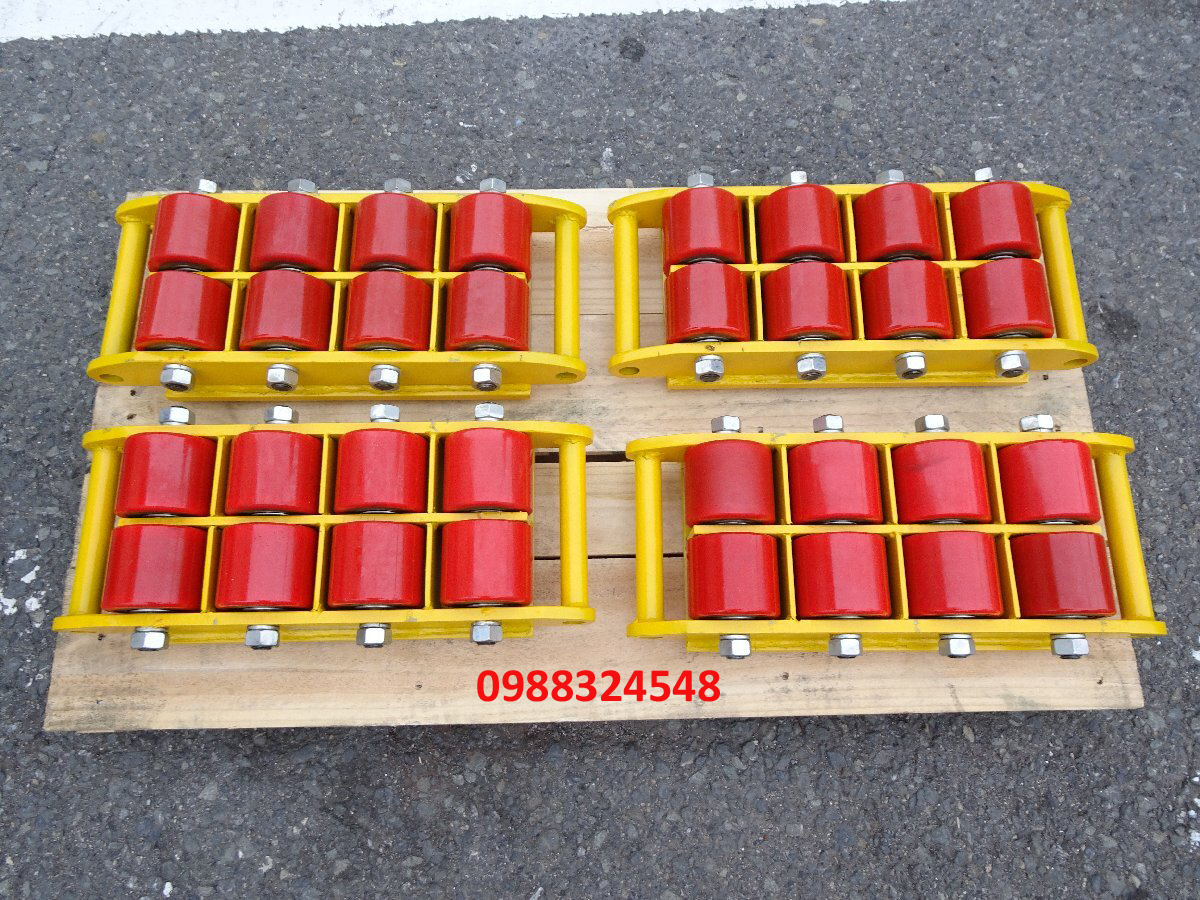

Con rùa lăn 12 tấn CRA-8/ CRA-8 KD Roller

Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: CRA-8
  • Tải trọng: 12 tấn
  • 8 bánh PU cố định, mâm xoay
  • Xuất xứ: Trung quốc

Con rùa lăn 12 tấn CRA-8/ CRA-8 KD Roller

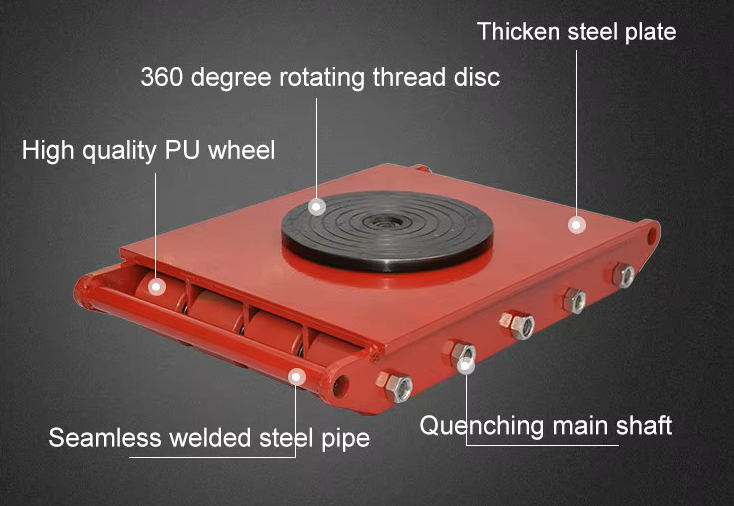

Cargo turning platform (trolley) CRA is purposed for move heavy weights (as a rule, equipment) inside the workshop premise of at the site having strong hard covering. Used in case, when available crane equipment cannot prove required relocation of weight.

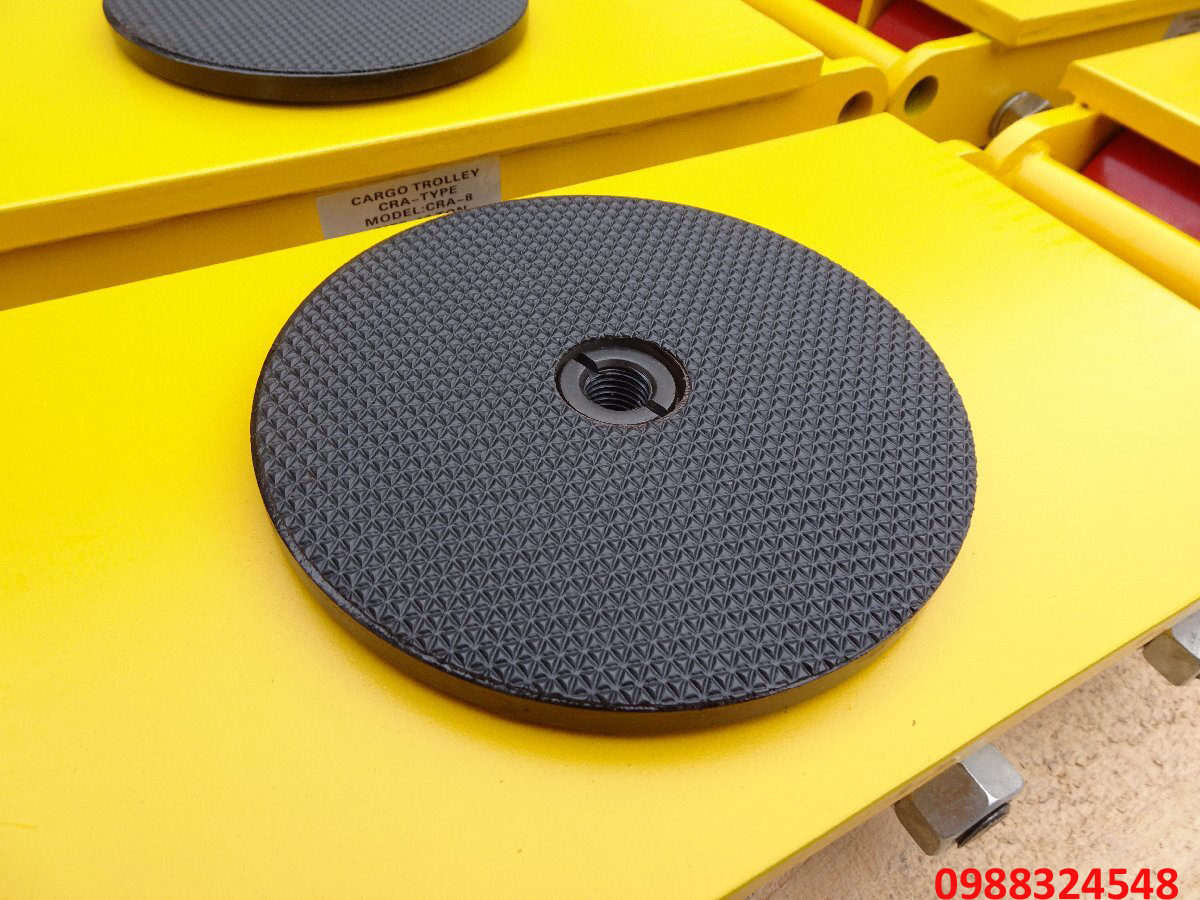

The platform working site is mounted onto the loose bearing and can turn for 360 degrees to provide convenience at weight transportation.

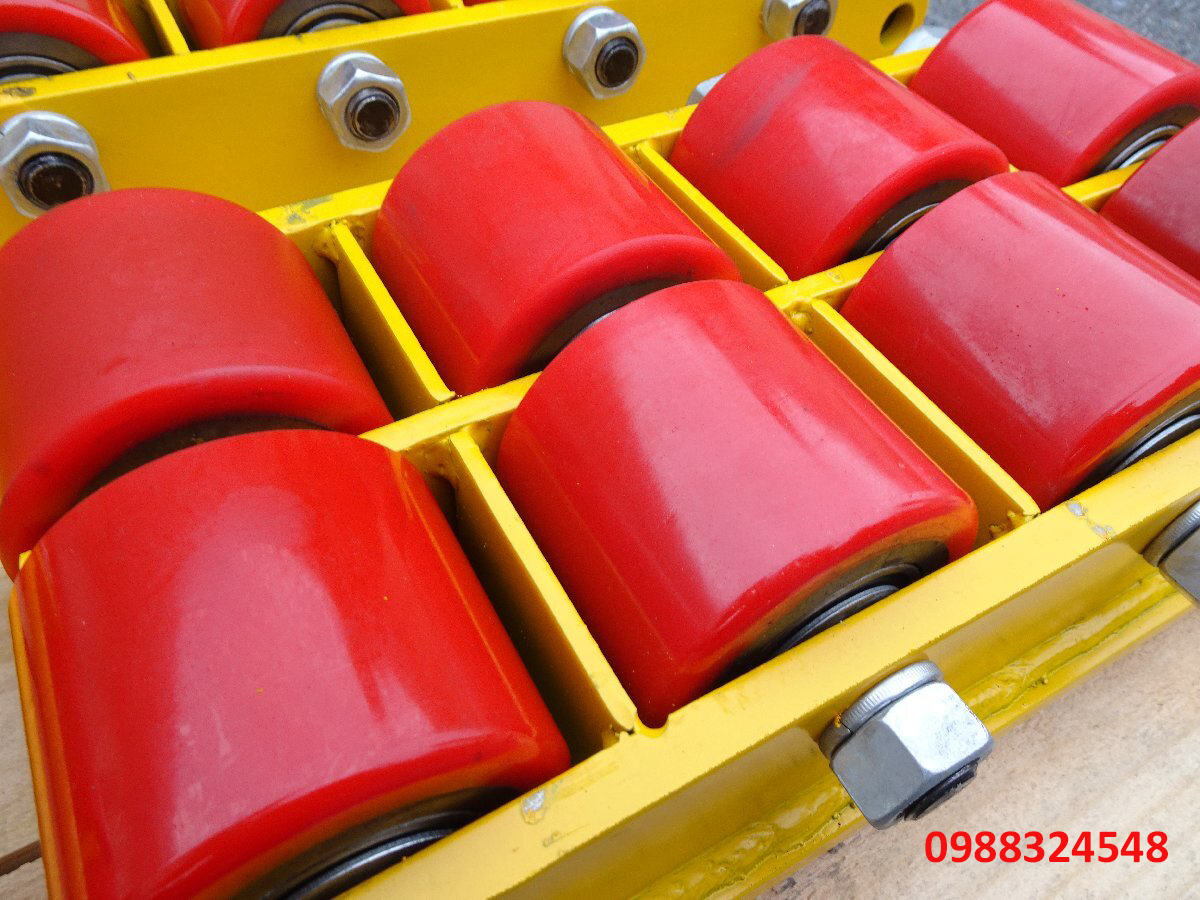

The platform rollers are equiped with the covers made of strong synthetic material (polyurethane), that facilitates amortization at motion and decreases mechanical impact onto the floor covering.
To provide safety of works and in order to avoid filling up of the weight, it is recommended to use not less than three platforms simultaneously (three support points in different places) at moving of the weight.

Con rùa lăn 6 tấn CRA-4/ CRA-4 KD Roller

Model Load-bearing capacity (ton) Dimensions (mm) Rollers
Weight (kg)
CRA 6 310х210х111 4 (PU) 14,5
CRA 8 410х210х111 6 (PU) 21,5
CRA 12 510х210х111 8 (PU) 27,5
CRA 15 400х308х110 9 (PU) 30,0
CRA 18 498х312х110 12 (PU) 43,5

Con rùa lăn 12 tấn CRA-8/ CRA-8 KD Roller

Con rùa lăn 12 tấn CRA-8/ CRA-8 KD Roller Instruction Manual
