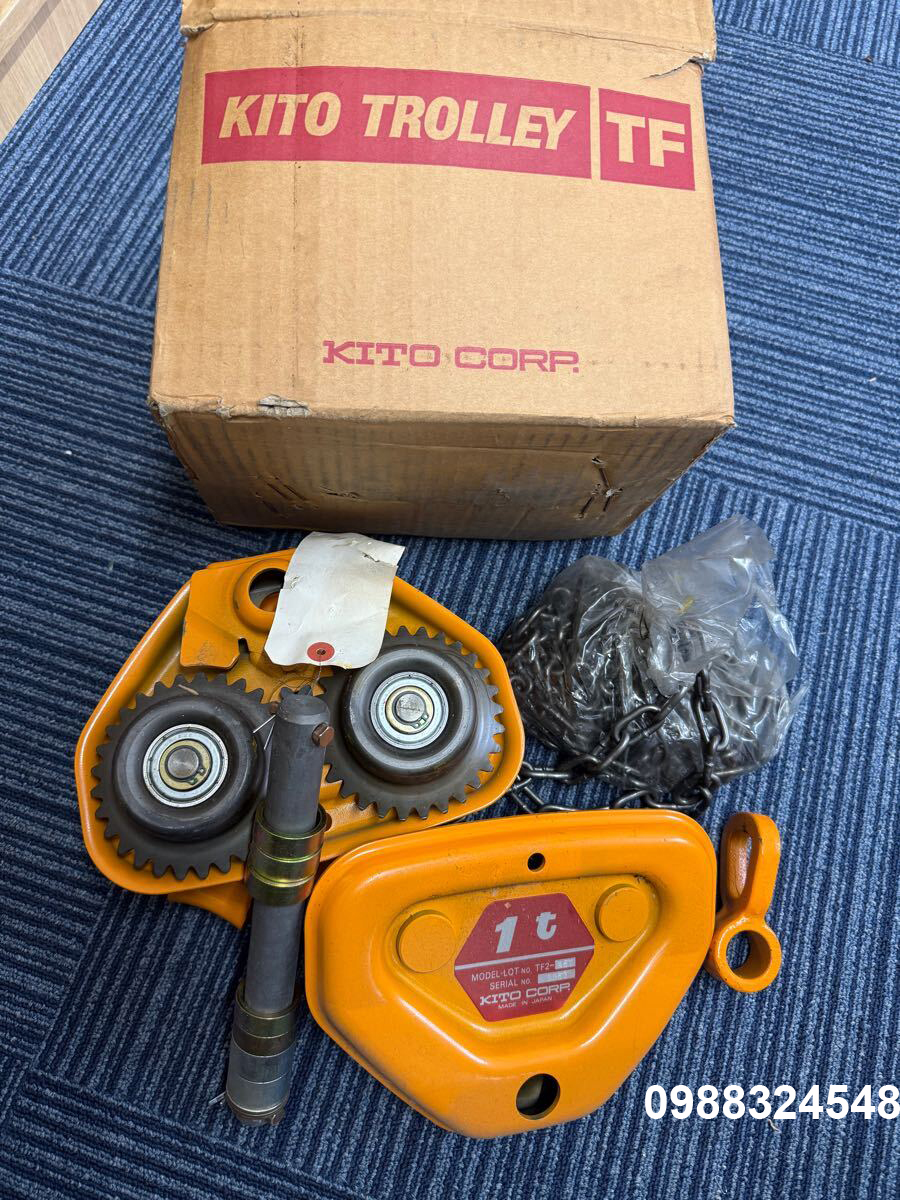

Con chạy kéo tay Kito 1 tấn TFG-010 / TFG-010 Kito Geared Trolley

Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: TFG-010
  • Tải trọng: 1 tấn
  • Loại có xích kéo 2.5 mét
  • Dùng cho cánh I rộng: 58-127mm
  • Khối lượng: 11 Kg
  • Nhà sản xuất: Kito Corp

TF Series Kito Plain / Geared Trolley

  • Life Time Lubricated Ball Bearing Equipped
  • Adjustable for Both Tapered and Flat Flanged
  • Load Equalization and Smooth Operation with Pivot Mounted Trolley Frames
  • Extremely Small Min. Radius for Curve (500kg to 3t Capacity)

  • TFG Series Kito Geared Trolley

    Model Capacity
    (t)
    Beam Width Adjustability (mm) Min.
    Radius
    for Curve
    (mm)
    Mass
    (Net Weight)
    (kg)
    Standard Option
    W20* W30*
    TFG010 1 58-127 127-203 203-305 450 11
    TFG015 1.5 82-153 - 153-305 550 17
    TFG020 2 17
    TFG030 3 650 25
    TFG050 5 125-178 127-203 178-305 2000 47

    TF Series Kito Geared Trolley Manual Instruction
