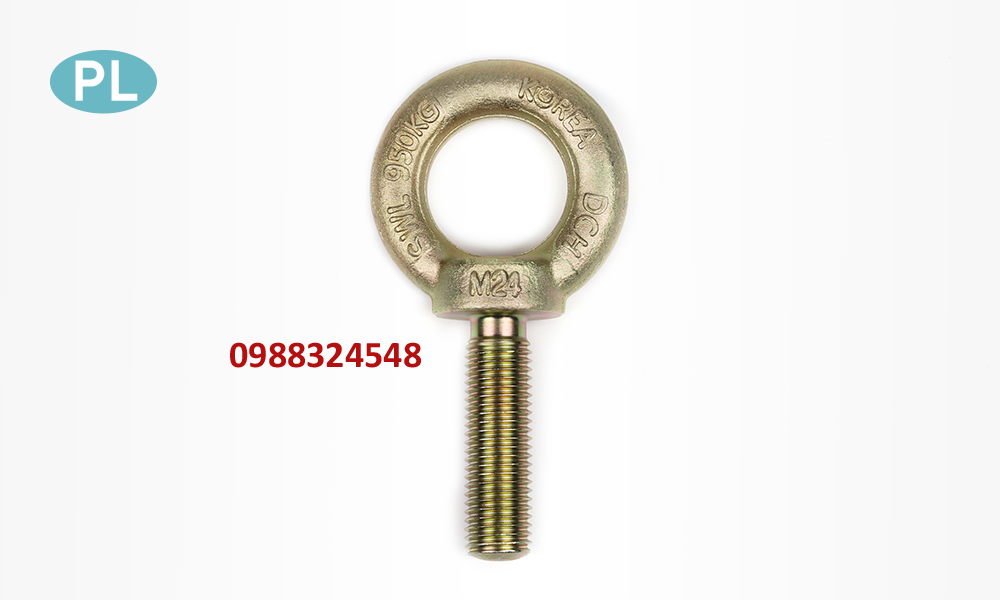

Bulong mắt dài Daichang EBMS / EBMS Daichang Eye Bolt Long Size

Bulong mắt dài Daichang EBMS / EBMS Daichang Eye Bolt Long Size

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Bulong mắt dài Daichang EBMS / EBMS Daichang Eye Bolt Long Size

  • Material : Forged Carbon steel
    Test Load
    Proof Load = SWL(WLL) × 3
    Breaking Load = reference KS B 1033
    Surface : Electric plated
    • Bulong mắt dài Daichang EBMS / EBMS Daichang Eye Bolt Long Size
    Bulong mắt dài Daichang EBMS / EBMS Daichang Eye Bolt Long Size
    Product code Size
    (mm)    		 Swl(wll)
    (kg)    		 Dimension(mm) Weight
    (kg)

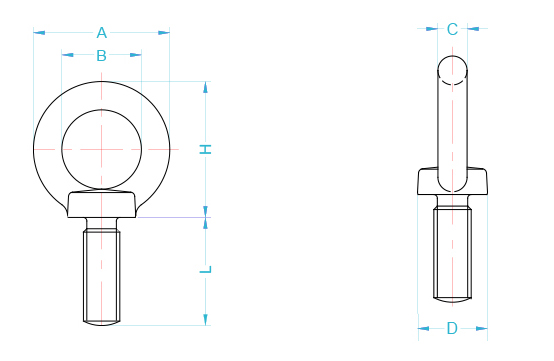

    A B C D H L
    EBMS-001 10x25 150 41 25 8 20 42 25 0.08
    EBMS-002 10x35 150 41 25 8 20 42 35 0.08
    EBMS-003 12x30 220 48 29 9.5 24 50 30 0.12
    EBMS-004 12x40 220 48 29 9.5 24 50 40 0.14
    EBMS-005 12x50 220 48 29 9.5 24 50 50 0.14
    EBMS-006 16x40 450 60 35 12.5 30 60 40 0.25
    EBMS-007 16x50 450 60 35 12.5 30 60 50 0.26
    EBMS-008 20x40 630 72 40 16 35 71 40 0.43
    EBMS-009 20x50 630 72 40 16 35 71 50 0.45
    EBMS-010 20x60 630 72 40 16 35 71 60 0.47
