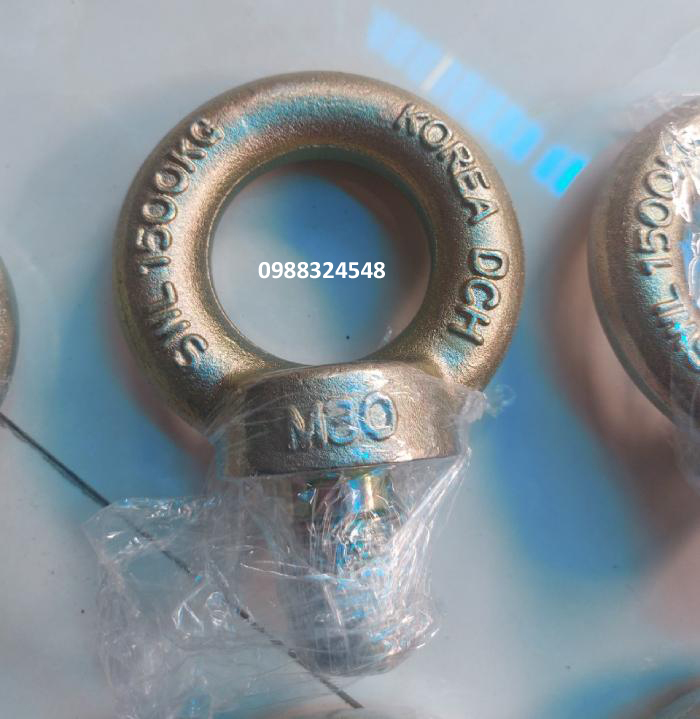

Bulong mắt 1500kg DCH EBMM-011 / EBMM-011 DCH Eye Bolt

Bulong mắt 1500kg DCH EBMM-011 / EBMM-011 DCH Eye Bolt

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:

Tags:

Bulong mắt 1500kg DCH EBMM-011 / EBMM-011 DCH Eye Bolt

  • Material : Forged Carbon steel
  • Test Load
    Proof Load = SWL(WLL) × 3
    Breaking Load = reference KS B 1033
    Surface : Electric plated / Self color
    Reference : KS B 1033
    • Bulong mắt 460kg DCH EBMM-006 / EBMM-006 DCH Eye Bolt
    Product code Size
    (mm)    		 Swl(wll)
    (kg)    		 Dimension(mm) Weight
    (kg)

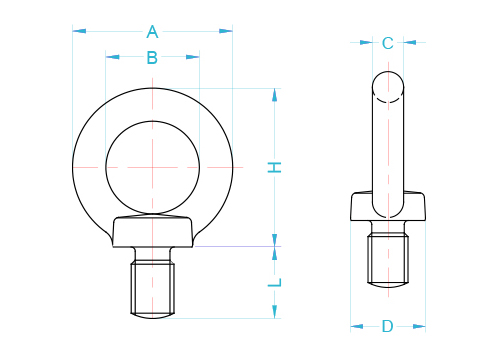

    A B C D H L
    EBMM-001 6 40 32.6 20 6.3 16 33 15 0.03
    EBMM-002 8 80 32.6 20 6.3 16 33 15 0.03
    EBMM-003 10 150 41 25 8 20 42 18 0.07
    EBMM-004 12 220 48 29 9.5 24 50 22 0.12
    EBMM-005 14 330 55 32 11.5 28 55 25 0.17
    EBMM-006 16 450 60 35 12.5 30 60 27 0.2
    EBMM-007 18 550 66 37 14.5 33 66 30 0.3
    EBMM-008 20 630 72 40 16 35 71 30 0.4
    EBMM-009 22 790 80 44 18 40 80 35 0.6
    EBMM-010 24 950 90 50 20 45 90 38 0.8
    EBMM-011 30 1,500 110 60 25 60 110 45 1.6
    EBMM-012 36 2,300 133 70 31.5 70 131.5 55 2.8
    EBMM-013 42 3,400 151 80 35.5 80 150.5 65 4.3
    EBMM-014 48 4,500 170 90 40 90 170 70 5.9
    EBMM-015 56 6,500 210 110 50 110 210 90 11.1
    EBMM-016 64 9,000 210 110 50 110 210 90 11.7
    EBMM-017 80 15,000 266 140 63 130 263 105 23
    EBMM-018 100 20,000 360 190 85 180 350 130 55
    EBMM-019 120 30,000 360 190 85 180 350 145 60
