Bulong mắt 630kg DCH ENMM-008 / ENMM-008 DCH Eye Bolt

  • Material : Forged Carbon steel
  • Test Load
    Proof Load = SWL(WLL) × 3
    Breaking Load = reference KS B 1033
    Surface : Electric plated / Self color
    Reference : KS B 1034
    • Bulong mắt 460kg DCH EBMM-006 / EBMM-006 DCH Eye Bolt
    Product code Size
    (mm)    		 Swl(wll)
    (kg)    		 Dimension(mm) Weight
    (kg)

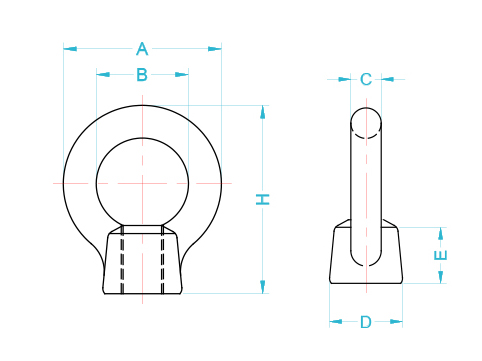

    A B C D H L
    ENMM-001 6 40 32.6 20 6.3 16 12 39.3 0.04
    ENMM-002 8 80 32.6 20 6.3 16 12 39.3 0.04
    ENMM-003 10 150 41 25 8 20 15 48.5 0.06
    ENMM-004 12 220 50 30 10 25 19 61 0.1
    ENMM-005 14 330 60 35 12.5 30 23 72 0.2
    ENMM-006 16 450 60 35 12.5 30 23 72 0.2
    ENMM-007 18 550 72 40 16 35 28 86 0.4
    ENMM-008 20 630 72 40 16 35 28 86 0.4
    ENMM-009 22 790 80 44 18 40 33 100 0.6
    ENMM-010 24 950 90 50 20 45 38 111 0.8
    ENMM-011 30 1,500 110 60 25 60 46 135 1.6
    ENMM-012 36 2,300 133 70 31.5 70 55 161.5 3
    ENMM-013 42 3,400 151 80 35.5 80 64 184.5 4.4
    ENMM-014 48 4,500 170 90 40 90 73 208 6.1
    ENMM-015 64 9,000 210 110 50 110 90 256 10.2
