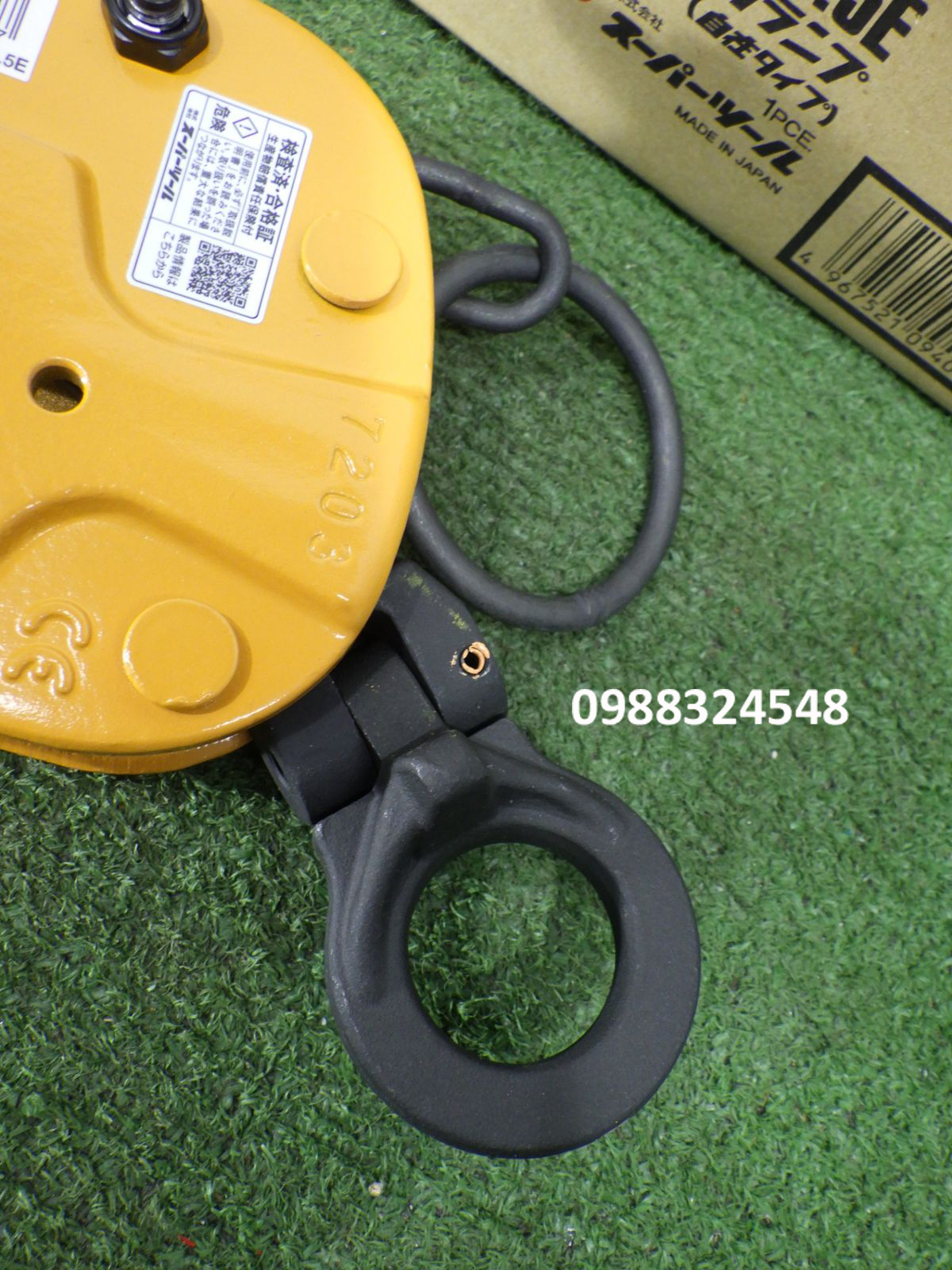

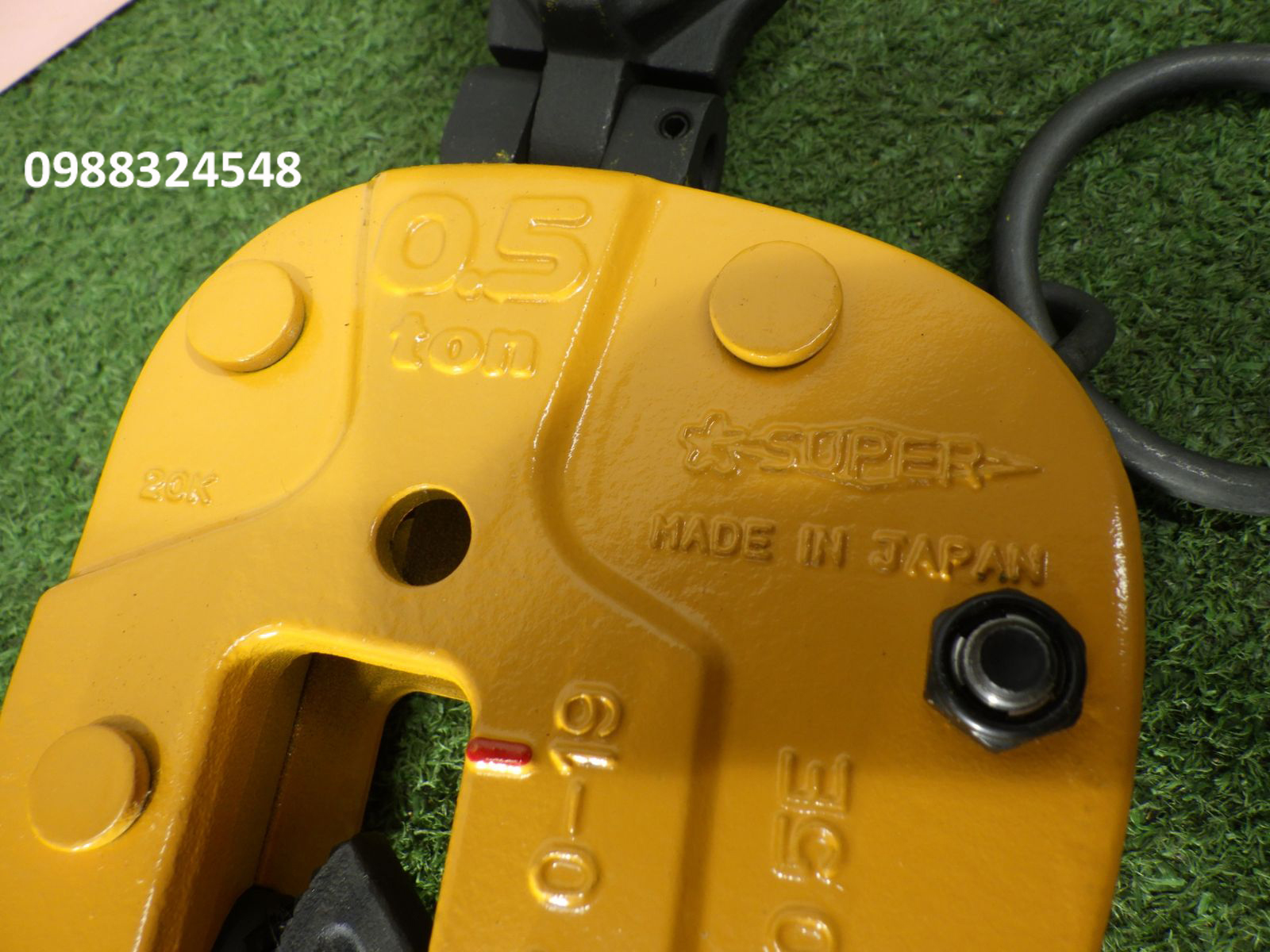

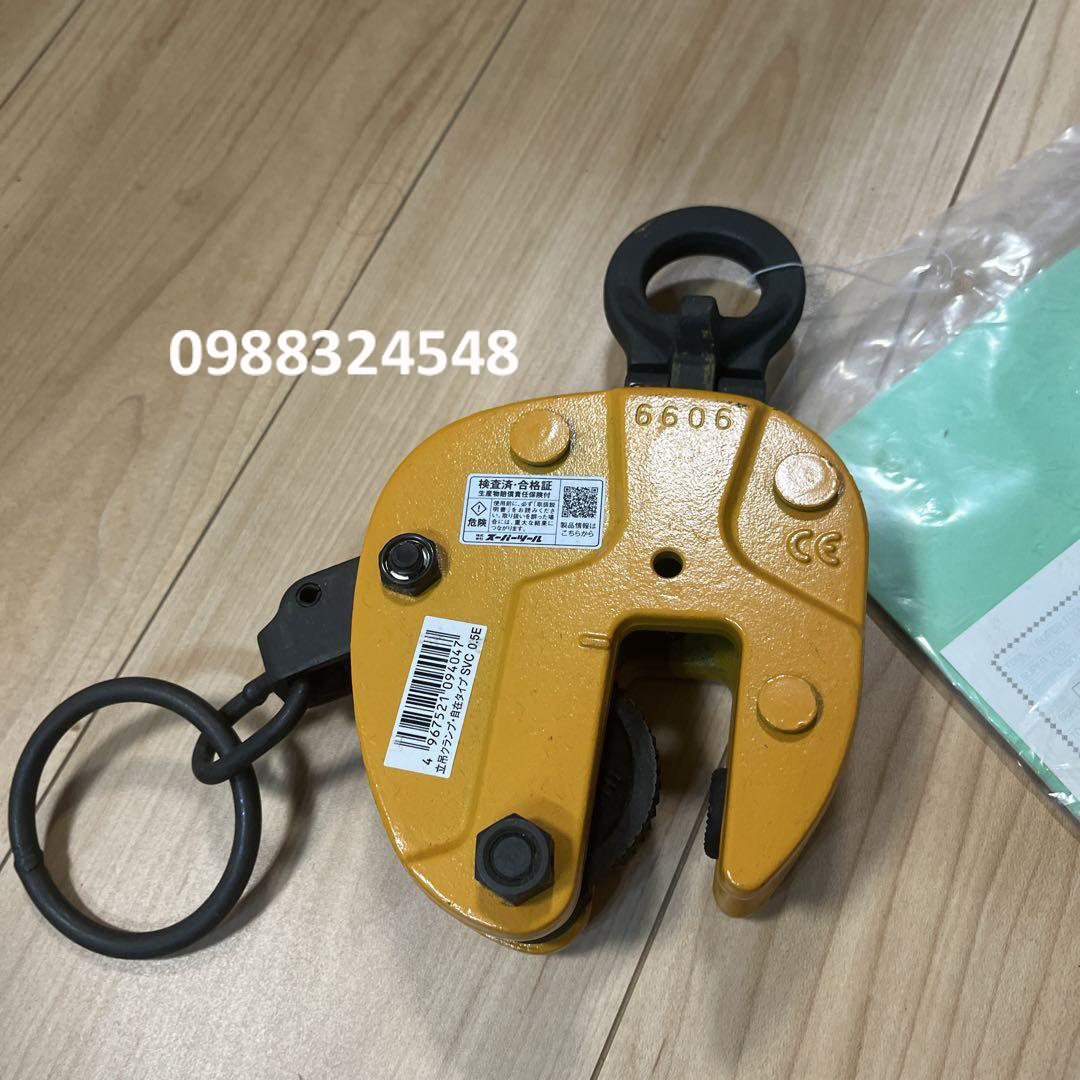

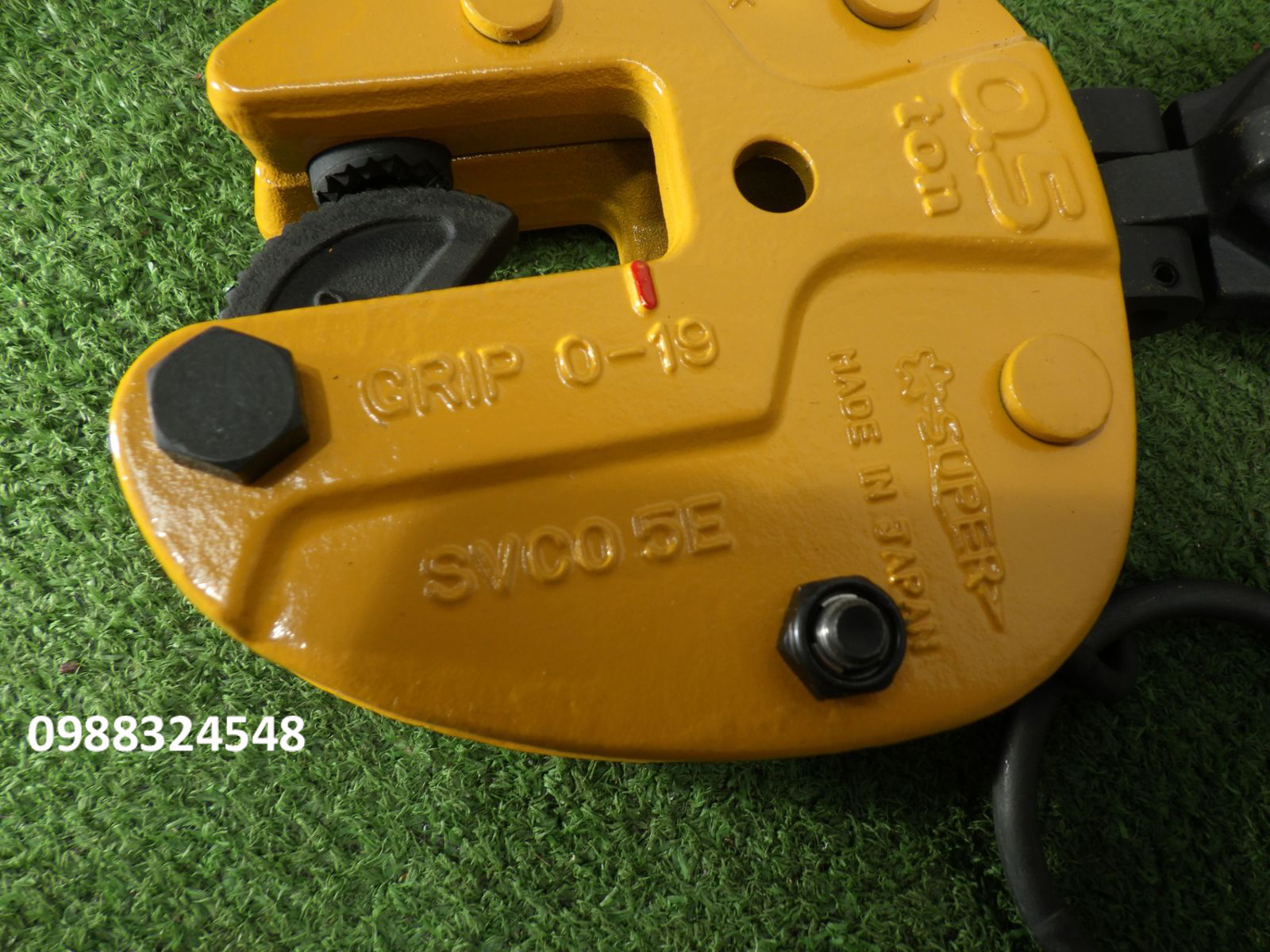

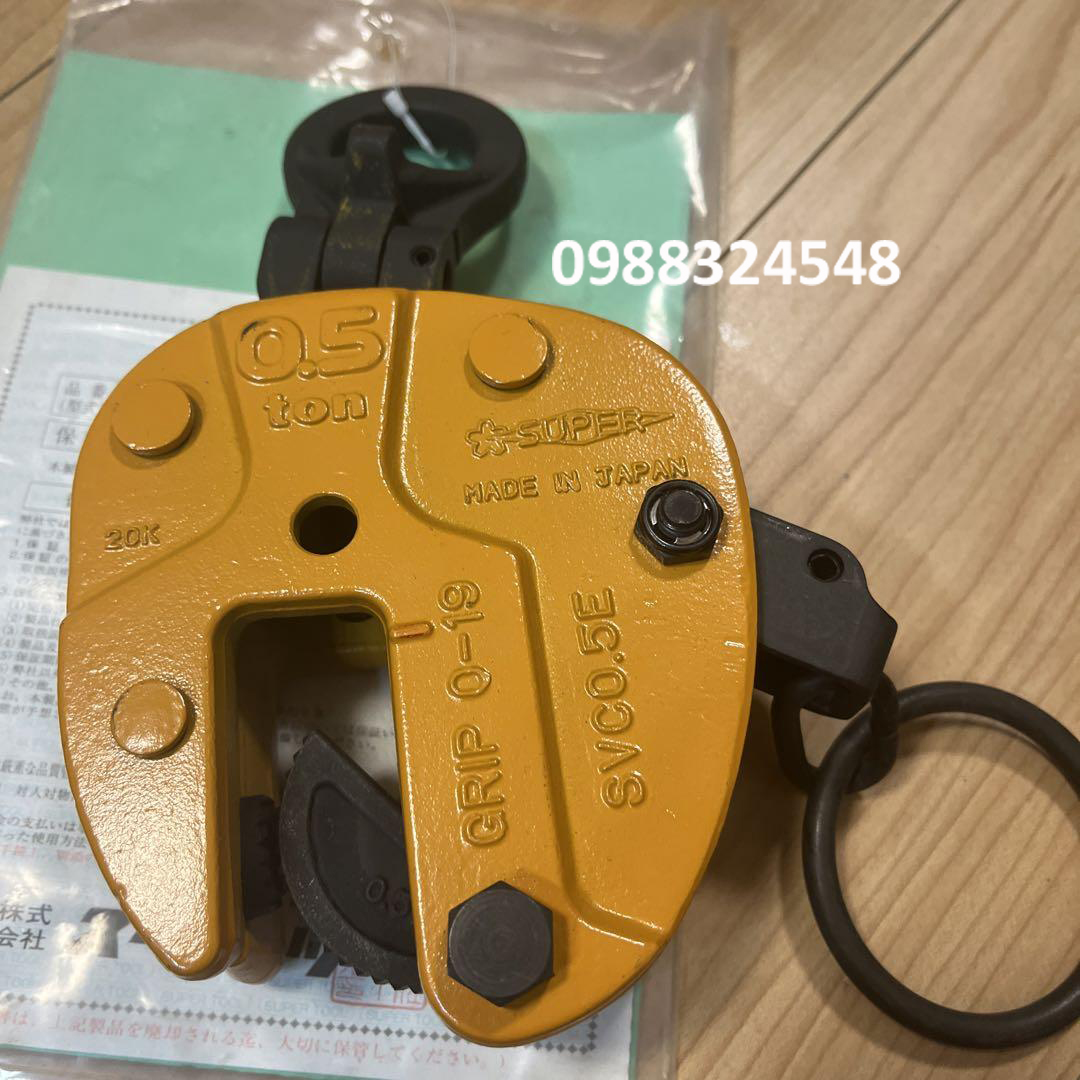

Kẹp tôn đứng 500kg Supertool SVC-0.5E / SVC-0.5E Supertool Vertical Clamp

Kẹp tôn đứng 500kg Supertool SVC-0.5E / SVC-0.5E Supertool Vertical Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: SVC-0.5E
  • Tải trọng: 0.5 tấn
  • Độ mở miệng: 0-19mm
  • Khối lượng: 2.1 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

SVC-E Series Supertool Vertical Clamp

  • Lightweight clamp primarily designed for the vertical lifting of steel plates.
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition
  • The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled.
  • The clamping force increases in proportion to the weight of the load.
  • High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

    • SVC-0.5E Supertool Vertical Clamp

    Model SVC-0.5E
    Jaw Opening 0 - 19 mm
    Capacity 0.5 Ton
    Net weight 2.1 kg

    SVC-E Series Supertool Vertical Clamp Instruction Manual
